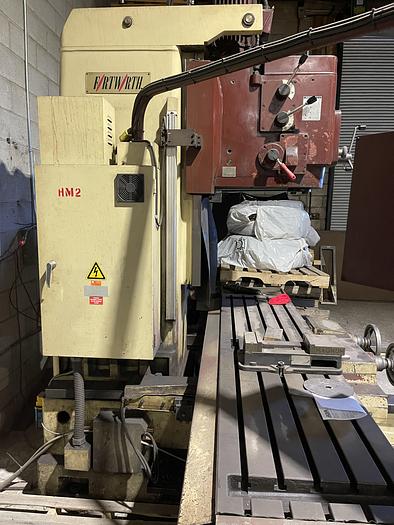

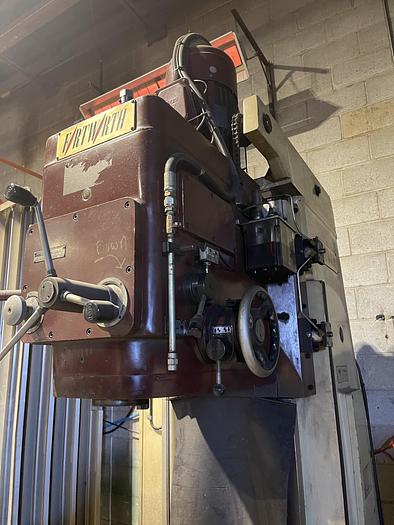

19" x 86" FORTWORTH MODEL, VBM-5VL BED TYPE VERTICAL MILLING MACHINE

orCall (905) 669-7507

Specifications

ManufacturerFORTWORTH
ModelVBM -5VL
Year2000
Serial Number9104160
Stock Number4137
YEAR2000
TABLE WIDTH19"
TABLE LENGTH86"
TABLE TRAVEL - LONGITUDINAL59'
TABLE TRAVEL - CROSS23"
SPINDLE TAPER#50 TAPER
SPINDLE SPEED45-1500 RPM
MOTOR10 HP
ELECTRICS575V/3/60
APPROX. DIMENSIONS134"x 101"x 113"
APPROX. WEIGHT14 100 LBS
TABLE LOAD CAPACITY4120 LBS
SPINDLE NOSE TO TABLE4" TO 31 1/2"

Equipped With

3 AXIS HEIDENHAIN DRO

COOLANT PUMP

LUBRICATION

RAPID FEEDS

JOYSTICK CONTROL
