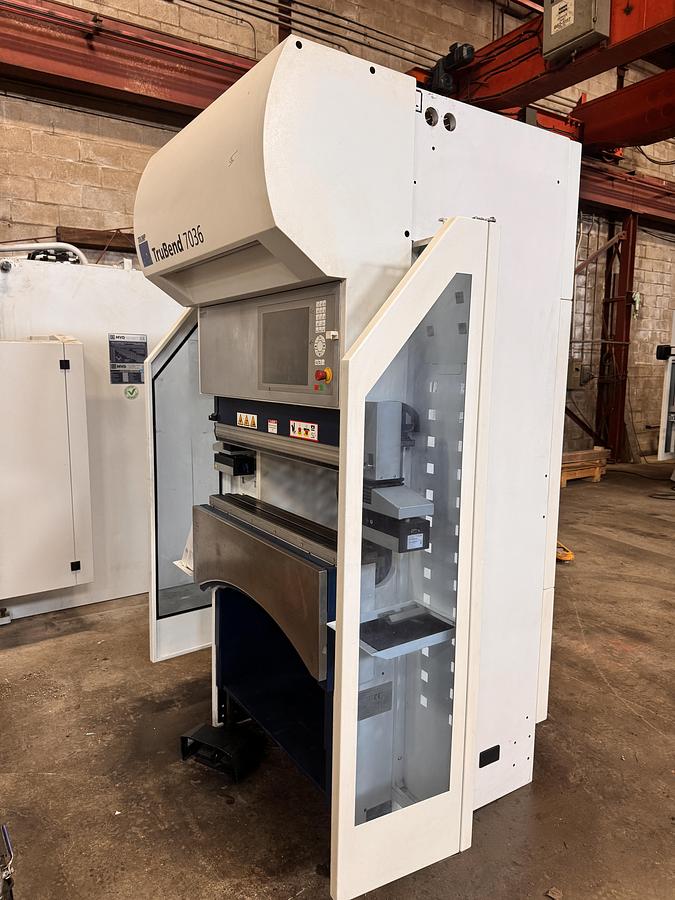

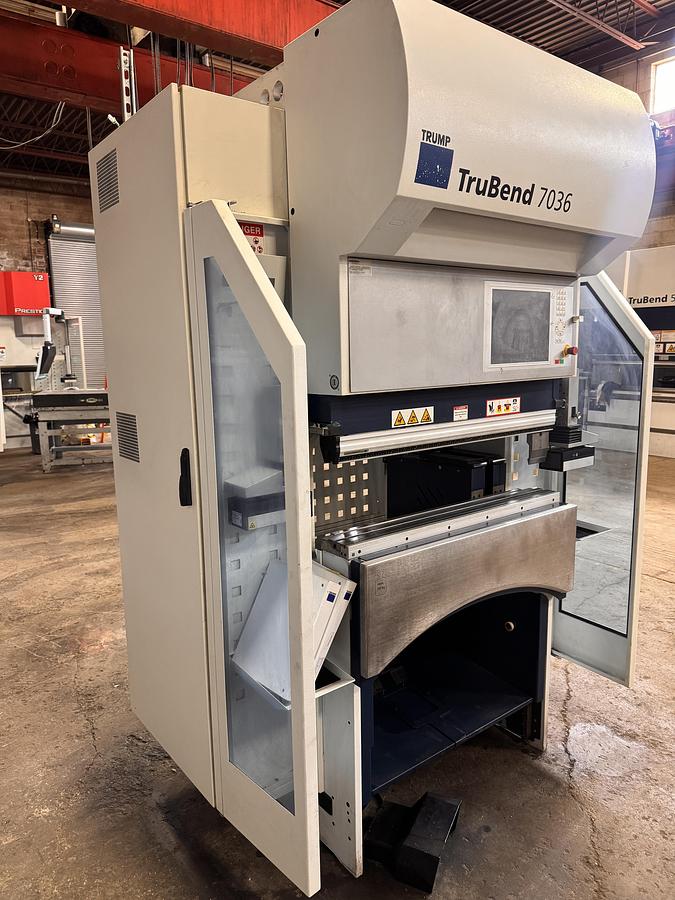

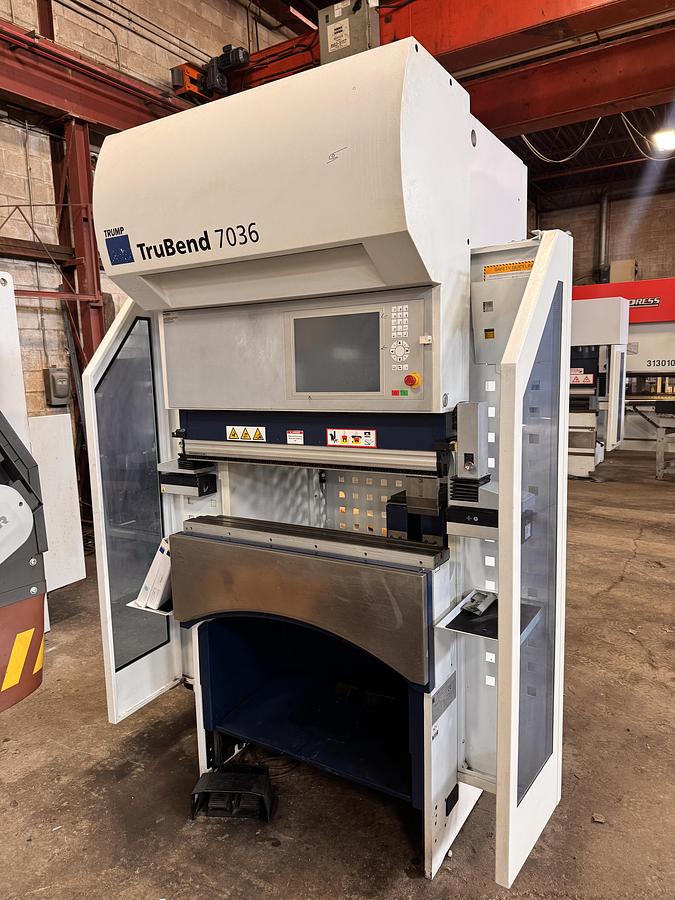

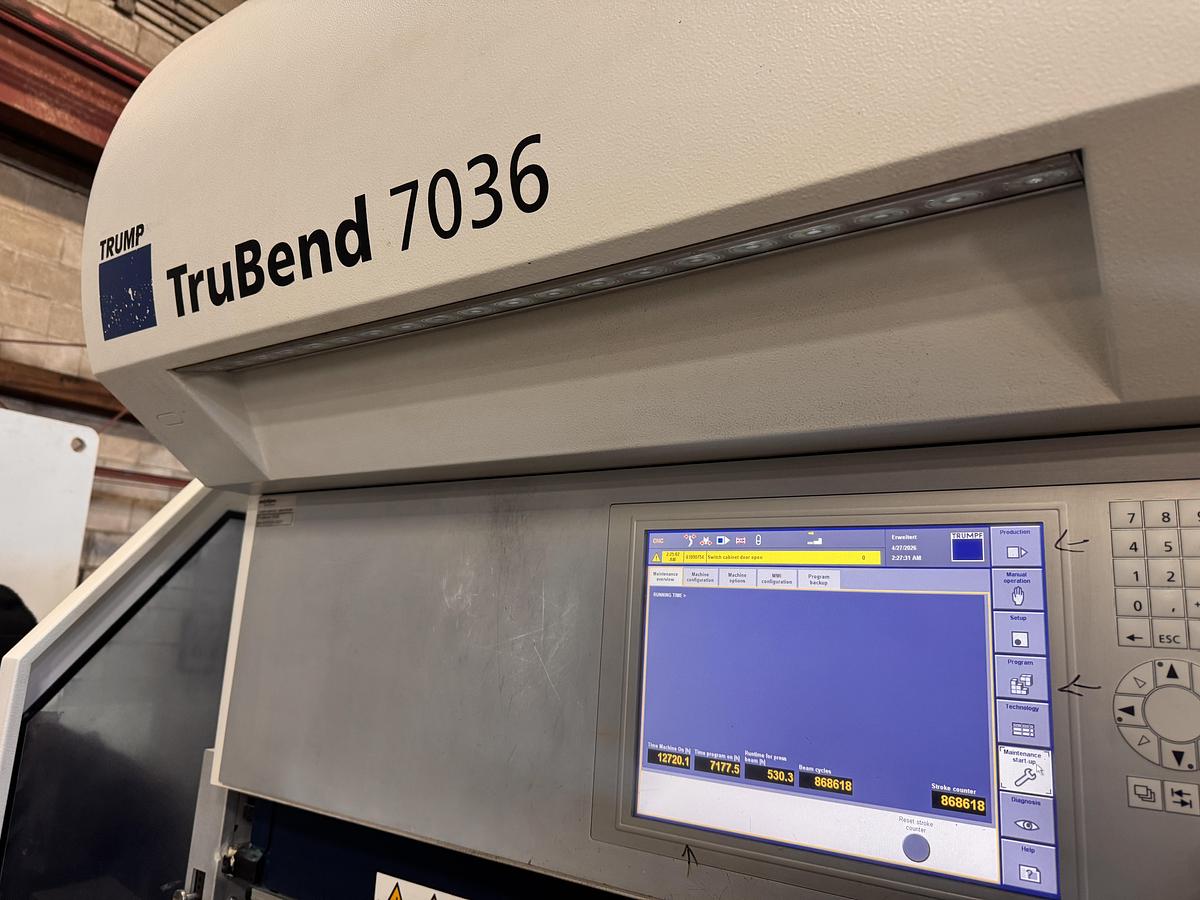

40 TON X 40", TRUMPF, TRUBEND 7036 ELECTRIC CNC PRESS BRAKE, 2015
or
Call (905) 669-7507
New Arrival, Excellent Condition !
Specifications
| Manufacturer | TRUMPF |
| Model | TRUBEND 7036 |
| Year | 2015 |
| Stock Number | 10011 |
| TONNAGE | 36 METRIC / 40 TON U.S. TONS |
| OVERALL BENDING LENGTH | 40" |
| STROKE | 4.72" |
| WIDTH BETWEEN COLUMNS | 37" |
| MAX. TABLE/BEAM DISTANCE | 16.5" |
| USABLE INSTALLATION HEIGHT | 12" |
| THROAT DEPTH | 6" |
| OPERATING HEIGHT | 45" |
| SPEEDS: Y-RAPID | 520 IPM |
| Y-WORKING SPEED | 59 IPM |
| Y RETURN TRAVERSE SPEED | 520 IPM |
| X-AXIS | 2362 IPM |
| R-AXIS | 780 IPM |
| Z-AXIS | 2362 IPM |
| Y-AXIS POSITION ACCURACY | 0.00008" |
| X-AXIS POSITION ACCURACY | 0.0008" |
| R-AXIS POSITION ACCURACY | 0.0008" |
| TRAVEL PATH X-AXIS | 9" |
| MAX. GAUGE AREA IN X | 20" |
| TRAVEL PATH R-AXIS | 3" |
| APPROX. WEIGHT | 5,800 LBS. |
Equipped With

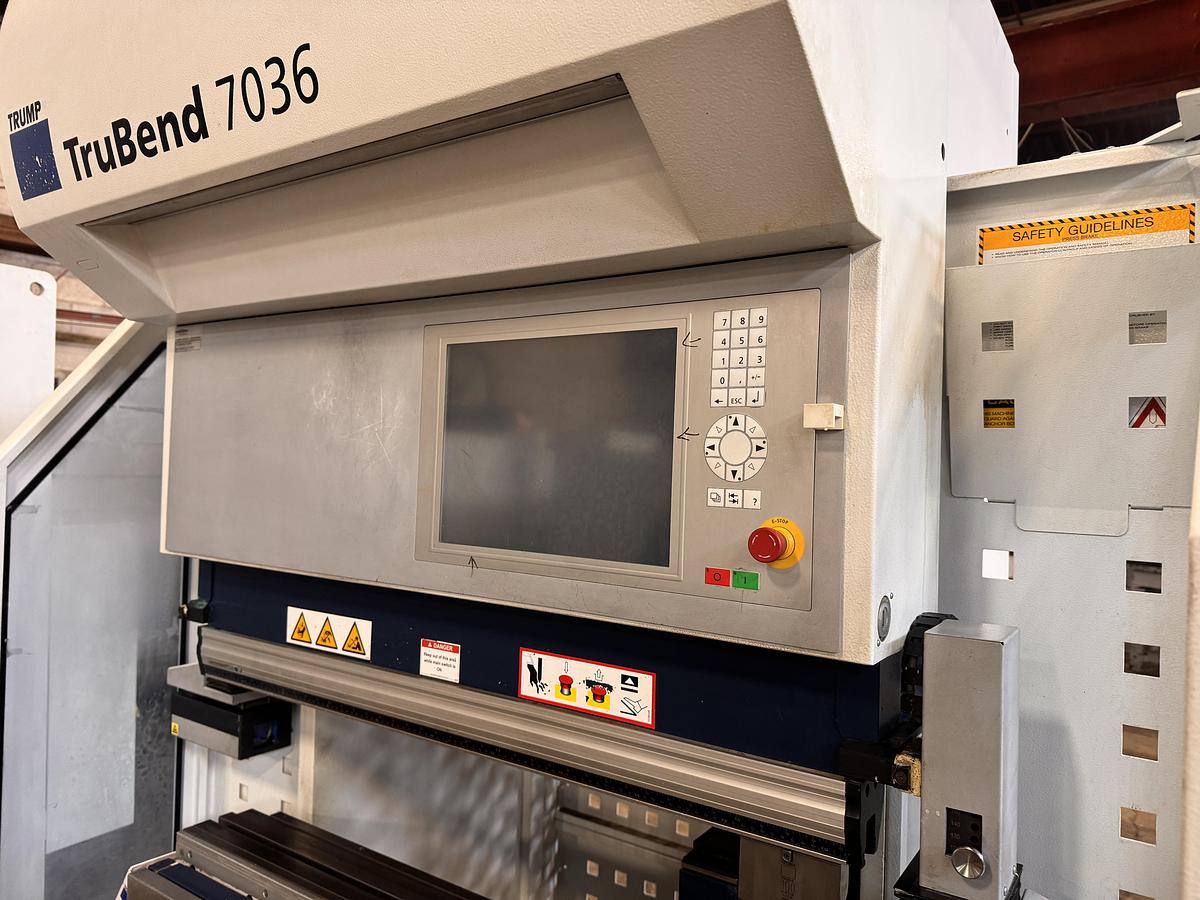

CNC TASC 6000 TOUCH SCREEN CNC CONTROL, 6-AXIS BACKGAUGE X1, X2, R1, R2, Z1, Z2

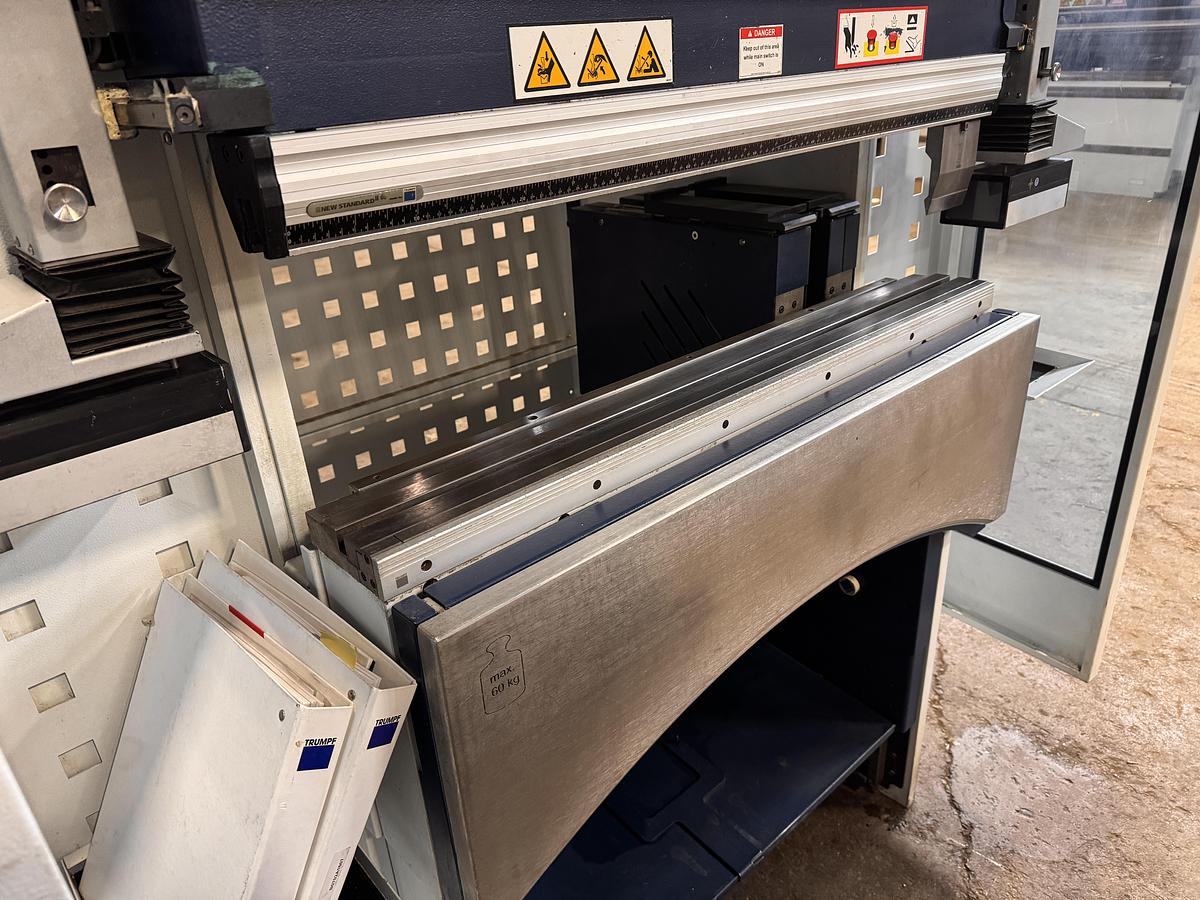

WILA NEW STANDARD TOP AND BOTTOM HYDRAULIC CLAMPING

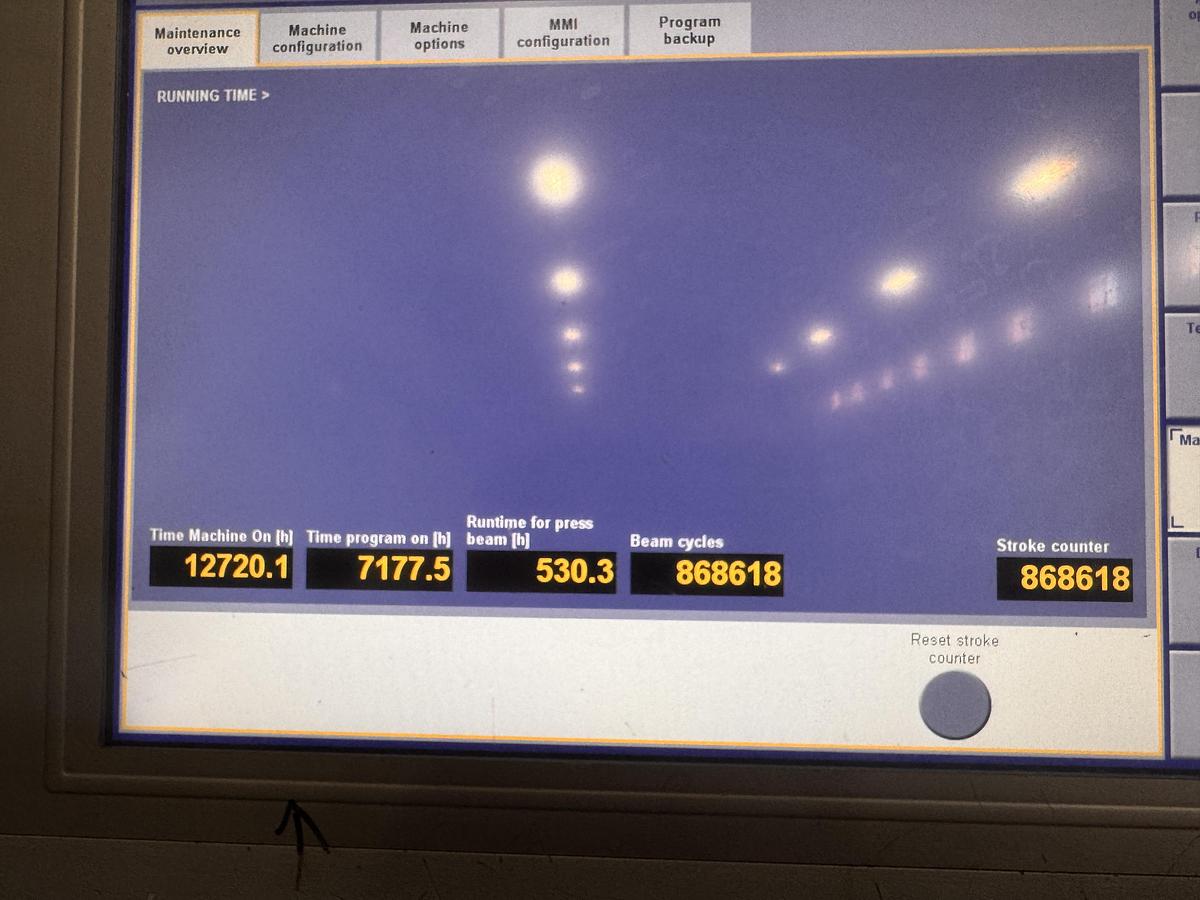

15" TOUCH SCREEN
NETWORK READY
LAZERSAFE SAFETY SYSTEM
