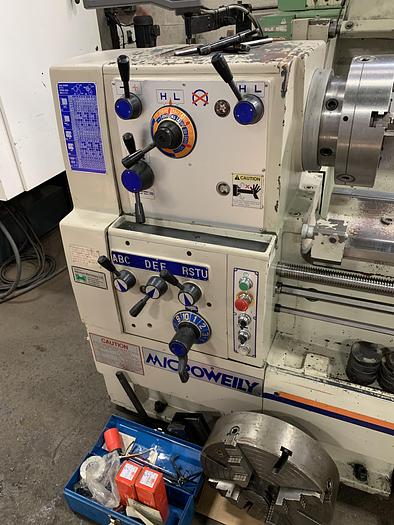

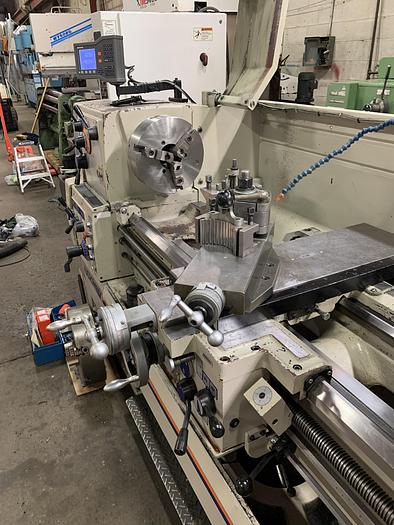

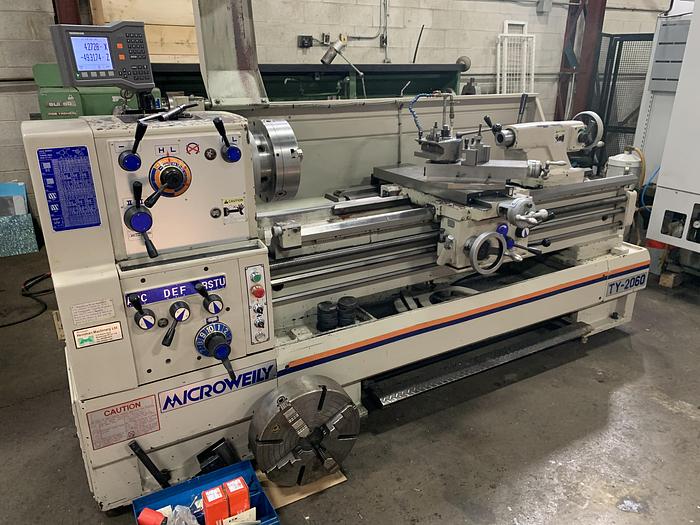

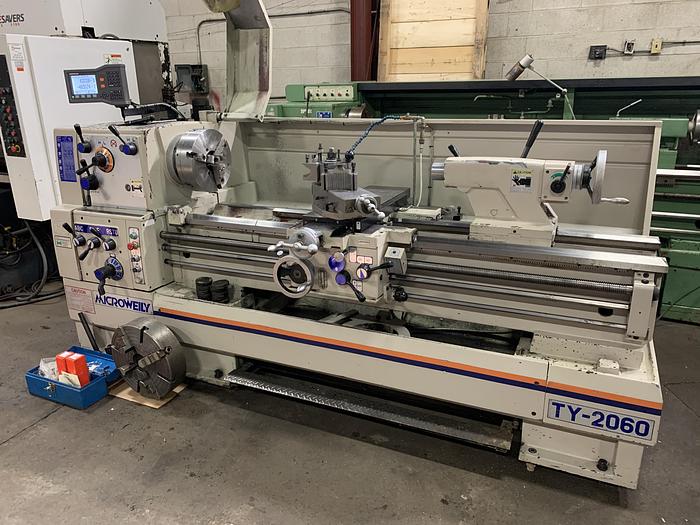

20" X 60", MICROWEILY, 2016, TOOLROOM LATHE
Sold
Specifications
| Manufacturer | MICROWEILY |
| Model | TY-2060 |
| Year | 2016 |
| Stock Number | 4131 |
| DISTANCE BETWEEN CENTERS | 60" |
| SWING OVER BED | 20" |
| SWING OVER CROSS SLIDE | 12.99" |
| SWING IN GAP | 26.77" |
| CENTER HEIGHT | 10.03" |
| BED WIDTH | 15.74" |
| SPINDLE BORE | 3.14" |
| SPINDLE NOSE | D1-8 |
| SPEED RANGE | 2- TO 1550 RPM |
| CROSS SLIDE TRAVEL | 12.59" |
| COMPOUND REST TRAVEL | 10.03" |
| QUILL TAPER | MT5 |
| QUILL DIAMETER | 2.95" |
| QUILL TAPER | MT5 |
| SPINDLE MOTOR | 10 HP |
| COOLANT PUMP | 1/8 HP |
| APPROX. WEIGHT | 4,916 LBS. |
Equipped With

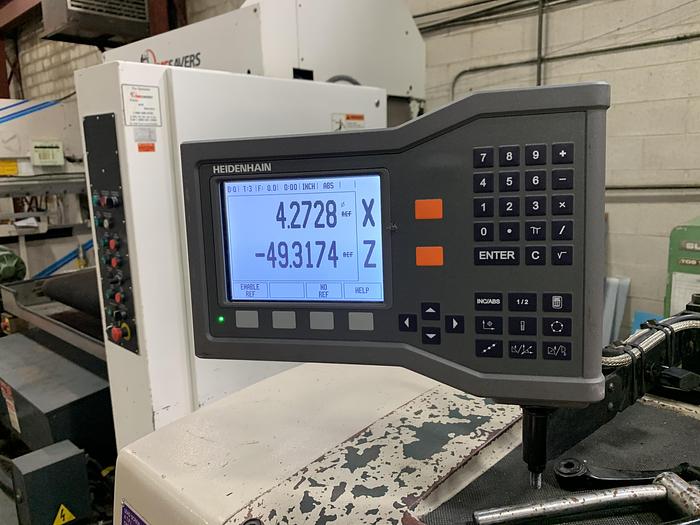

HEIDENHAIN 2-AXIS DIGITAL READOUT
12” - 3 JAW CHUCK
15-3/4” - 4 JAW CHUCK
40 POSITION QUICK CHANGE TOOLPOST W/ HOLDERS
STEADY REST
TAPER ATTACHMENT
COOLANT SYSTEM
THIS MACHINE IS IN EXCELLENT CONDITION
