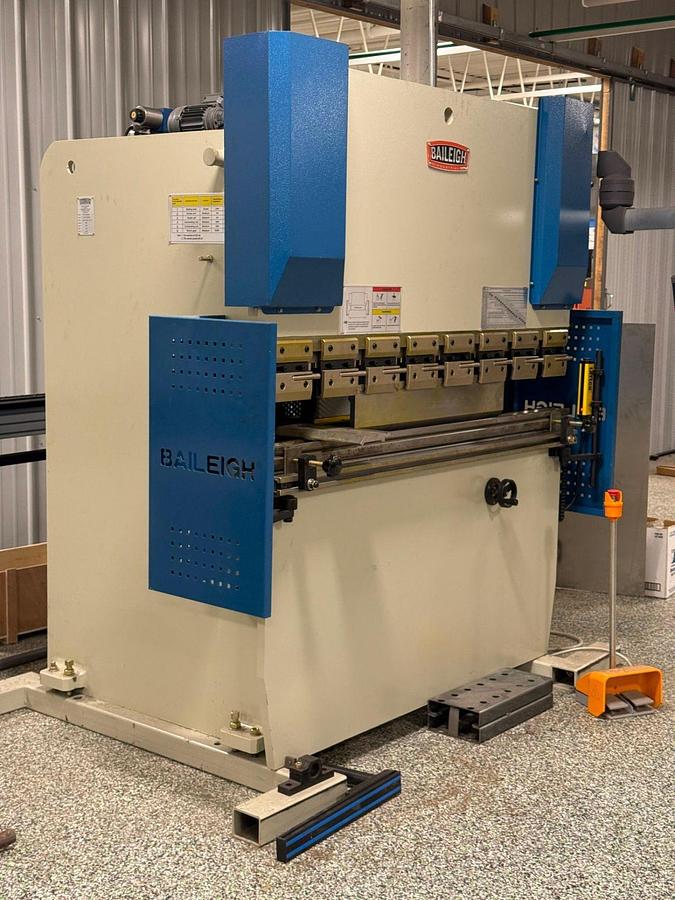

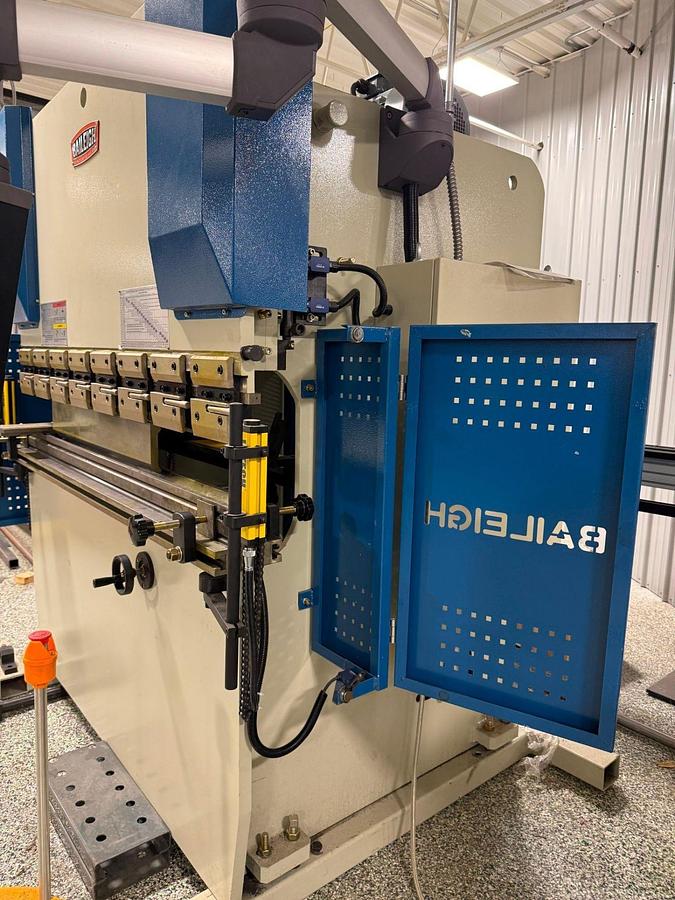

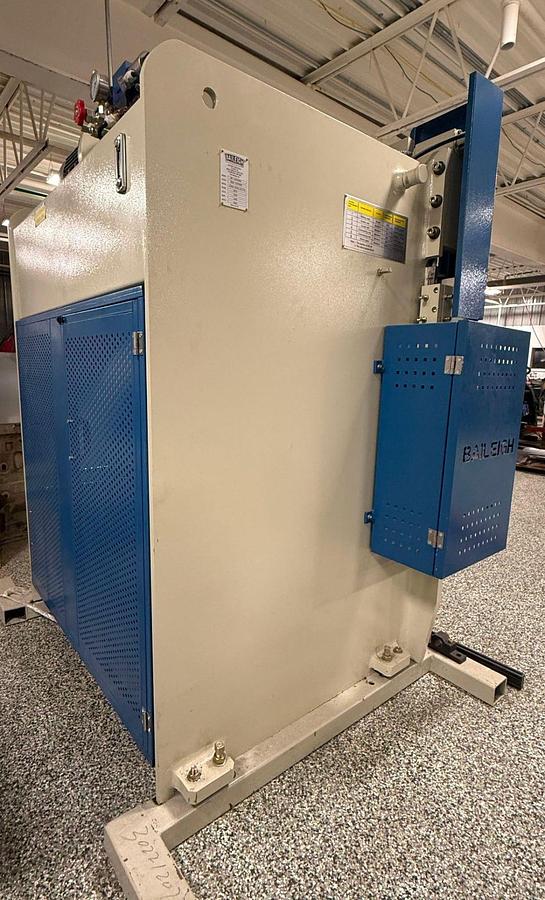

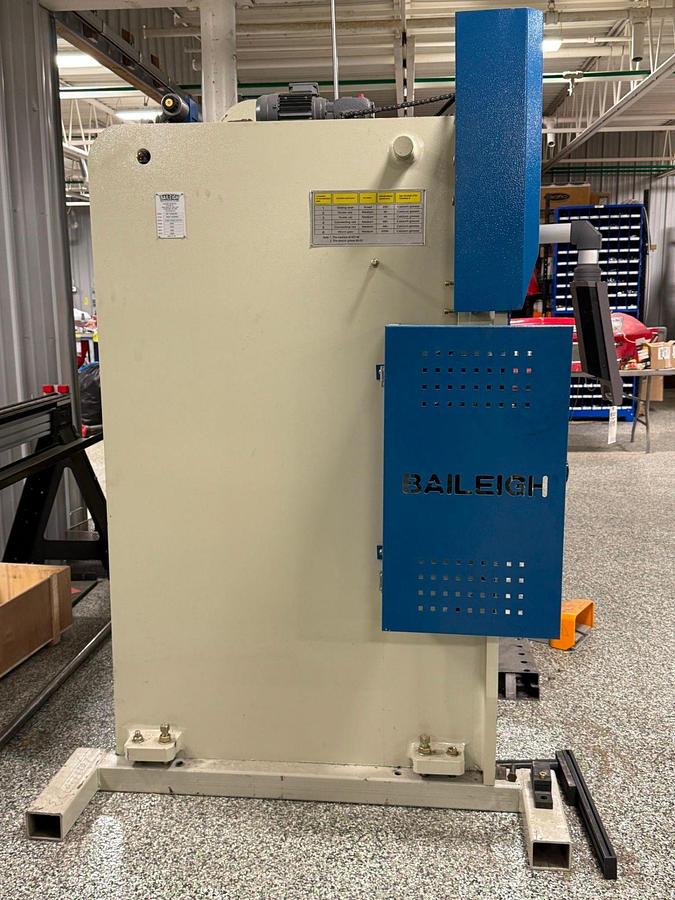

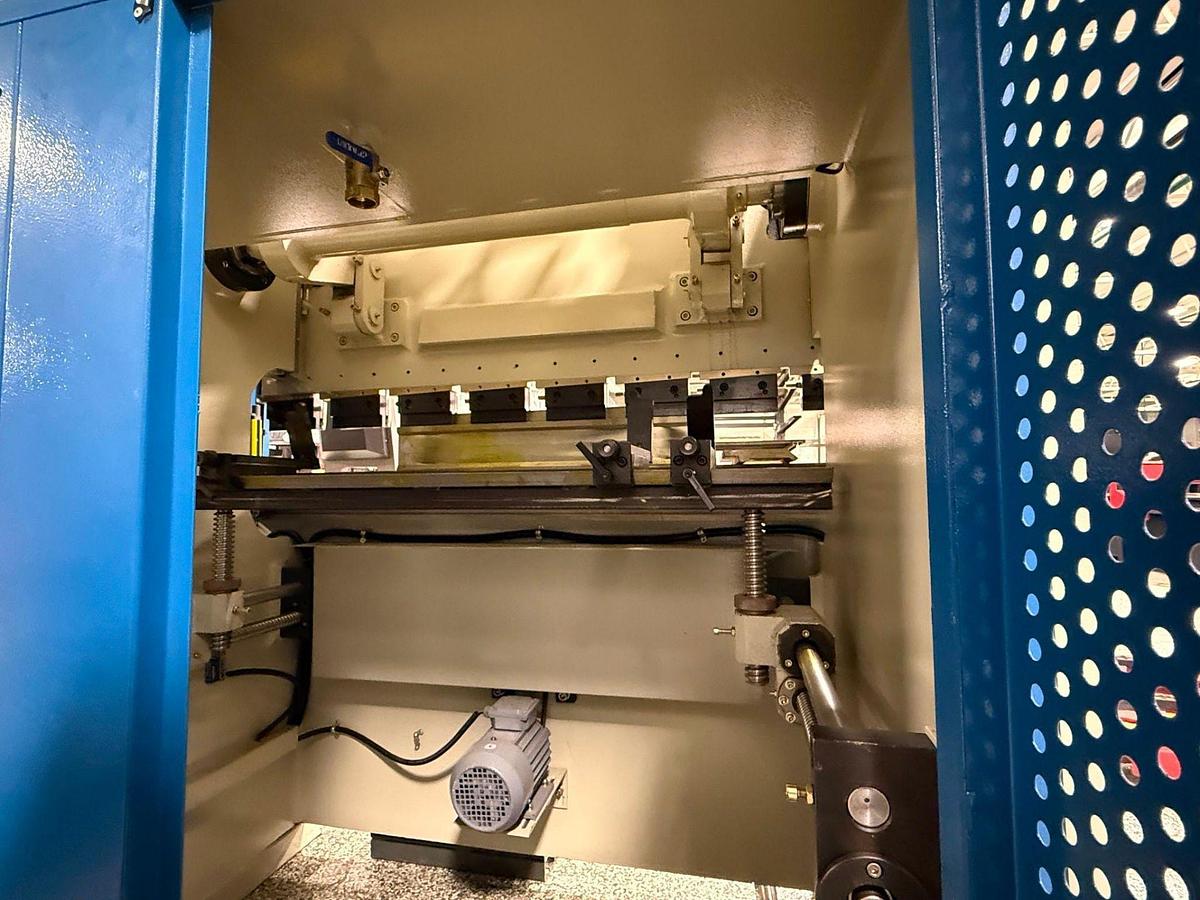

33 TON X 63", BAILEIGH, MODEL BP-3305CNC, HYDRAULIC CNC PRESS BRAKE, 2023
or
Call (905) 669-7507
Specifications
| Manufacturer | BAILEIGH |
| Model | BP-3305CNC |
| Year | 2023 |
| Stock Number | 4883 |
| TONNAGE CAPACITY | 33 TONS |
| TABLE LENGTH | 63" |
| DISTANCE BETWEEN HOUSINGS | 51.3" |
| THROAT DEPTH | 7.87" |
| STROKE | 3.9" |
| DISTANCE FROM TABLE TO RAM | 11.8" |
| ADJUSTMENT OF RAM TRAVEL | 3.1" |
| APPROACH SPEED | 3.5"/SEC. |
| WORKING SPEED | .394"/SEC. |

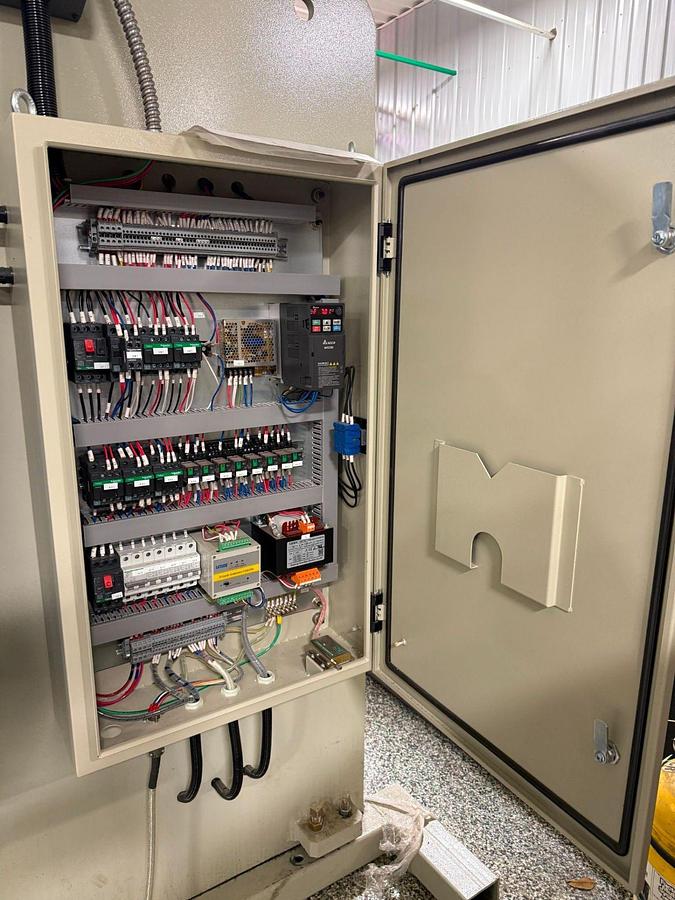

| ELECTRICS | 220V / 3 PH / 60 Hz. |
| MAIN MOTOR | 7.5 HP |
| HYDRAULIC RESERVOIS CAPACITY | 28 GAL |
| SHIPPING WEIGHT | 5,100 LBS. |
| FOOT PRINT DIMENSIONS | 97" X 91" X 82" TALL |
Equipped With
ESTUN E21 CNC CONTROL
SAFETY LIGHT CURTAINS
FOOT PEDESTAL CONTROL

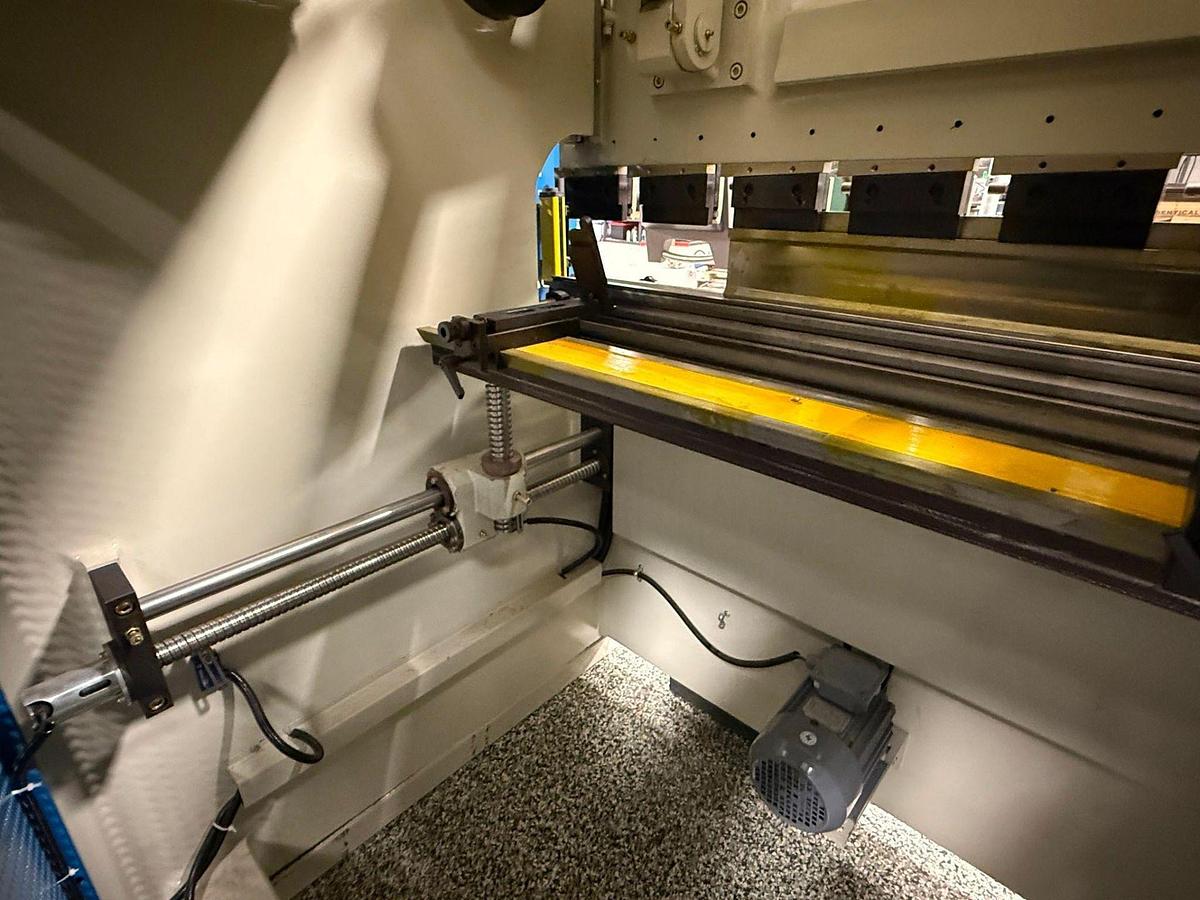

21" BACKGAUGE RANGE

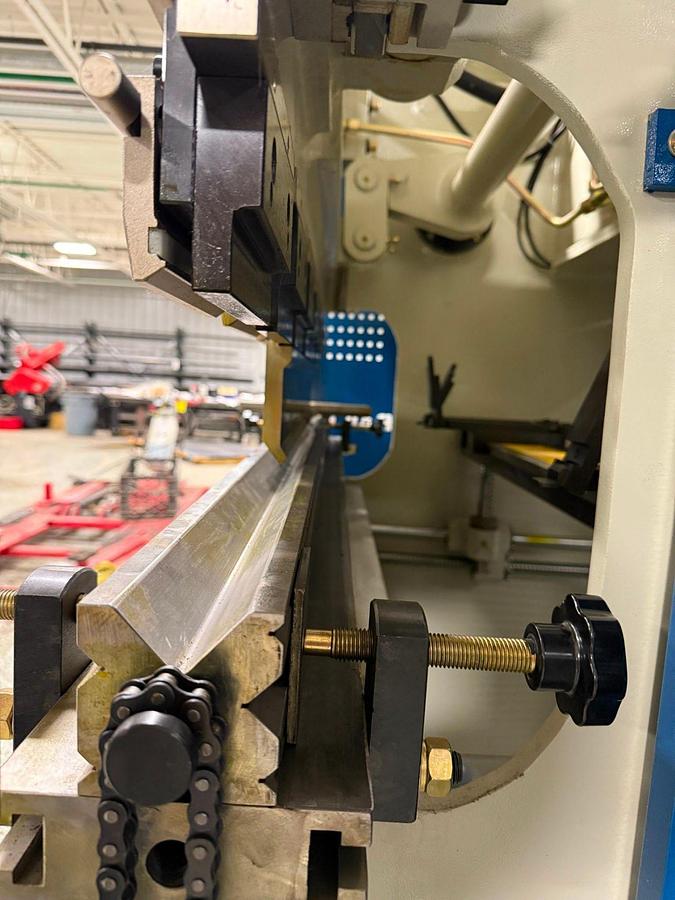

63" 4-WAY BOTTOM DIE
