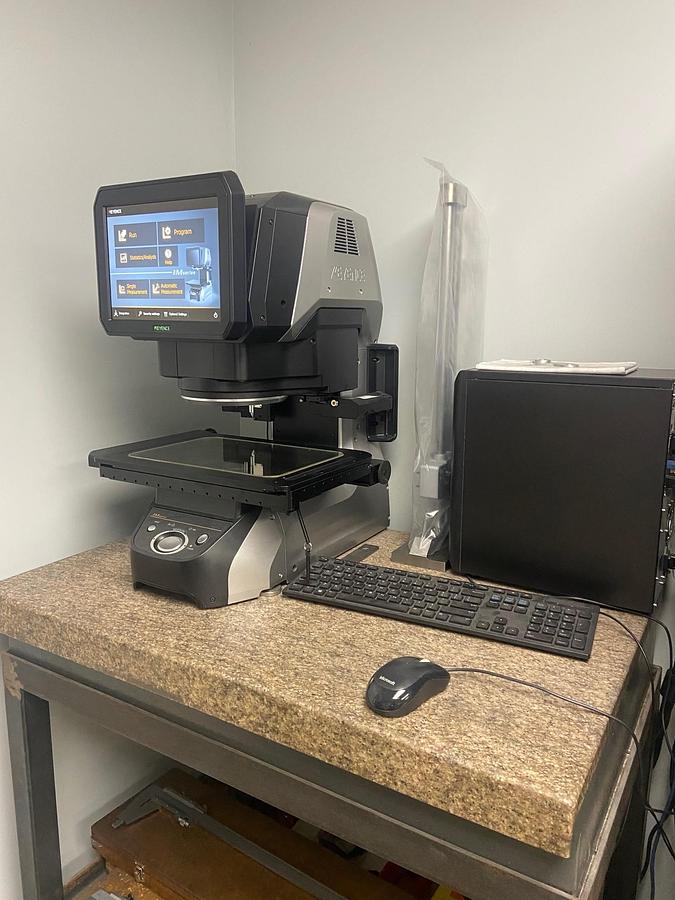

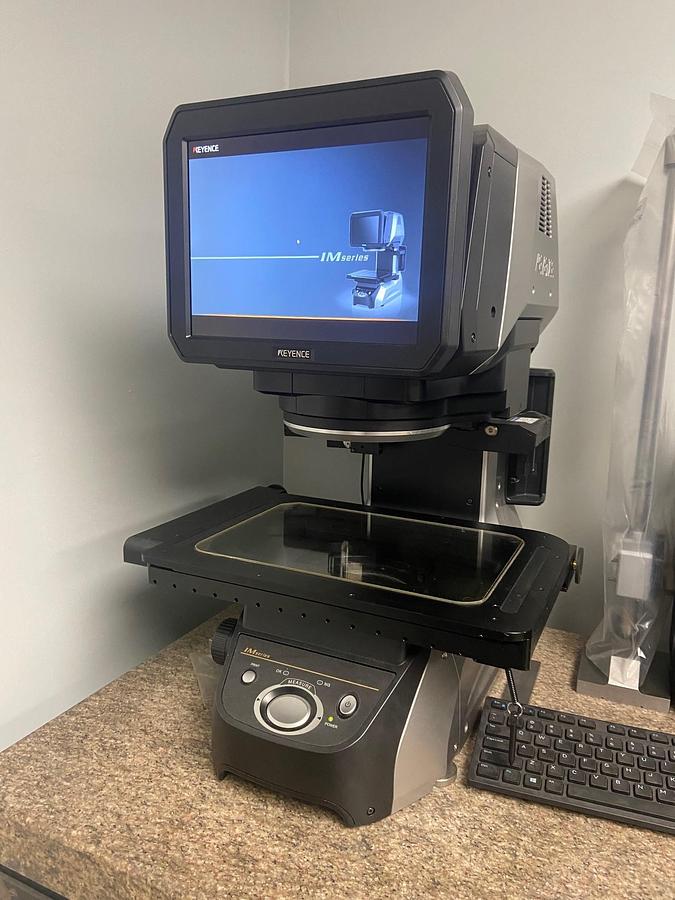

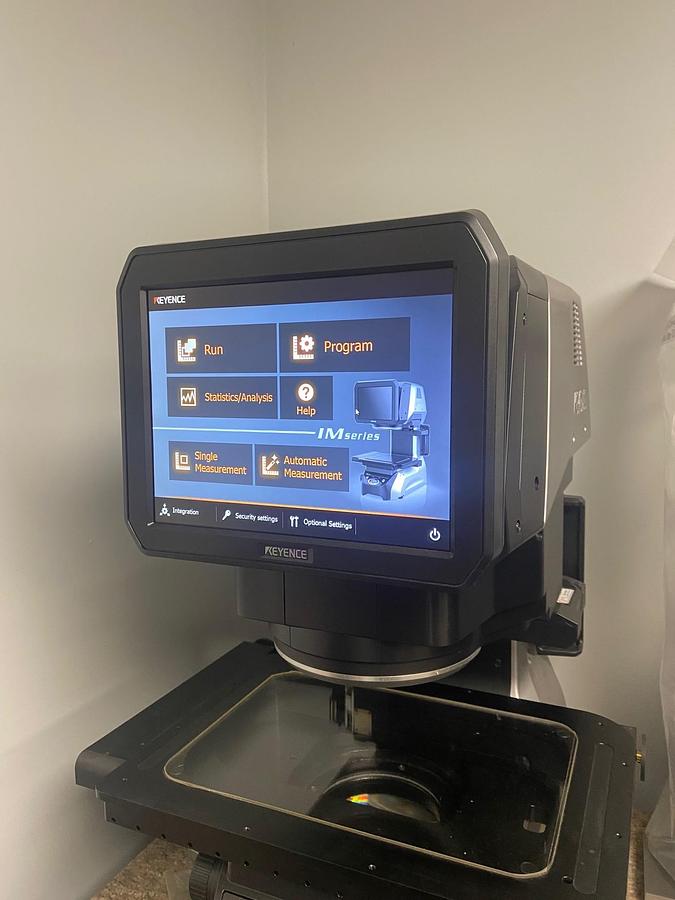

KEYENCE, OPTICAL MEASURING MACHINE, MODEL IM-7030, 2019
or
Call (905) 669-7507
Specifications
| Manufacturer | KEYENCE |
| Model | IM-7030 |
| Year | 2019 |
| Stock Number | 4861 |
| IMAGE PICKUP DEVICE | 1" 6.6 MEGAPIXEL MONOCHROME CMOS |
| DISPLAY | 10.4" LCD MONITOR |
| LIGHT RECEIVING LENS | DOUBLE TELECENTRIC LENS |
| WIDE-FIELD MEASURMENT MODE | 300MM X 300MM ( QUADRANGLE R50 ) |
| HIGH PRECISION MEASURMENT MODE | 225MM X 125MM |
| REPETITION ACCURACY - WIDE FIELD MEASREMENT MODE - W/O STAGE MOVE | +/- 1 UM |
| WITH STAGE MOVE | +/- 2 UM |
| HIGH PRECISION MEASUREMENT MODE- W/O STAGE MOVE | +/- 0.5 UM |
| WITH STAGE MOVE | +/- 1.5 UM |
| MEASUREMENT ACCURACY - WIDE FIELD MEASUREMENT MODE - NORMAL MEASUREMENT | +/- 5 UM |
| LINKED MEASUREMENT | +/- ( 7 + 0.02L ) UM3 |
| HIGH PRECISION MEASUREMENT MODE - NORMAL MEASUREMENT | +/- 2 UM4 |
| LINKED MEASUREMENT | +/- ( 4 + 0.02L ) UM5 |
| MEASURABLE AREA ( XY ) | 190MM X 90MM |
| MAX. MEASUREMENT DEPTH | 30MM |
| LIGHT PROBE DIAMETER | 3MM |
| MEASURING FORCE | 0.015 N |
| HEIGHT MESUREMENT - MEASURING RANGE | 0 TO 75 MM |
| MEASURING FORCE | 0.3N |
| MIN. DISPLAY UNIT | 1 UM |
Equipped With

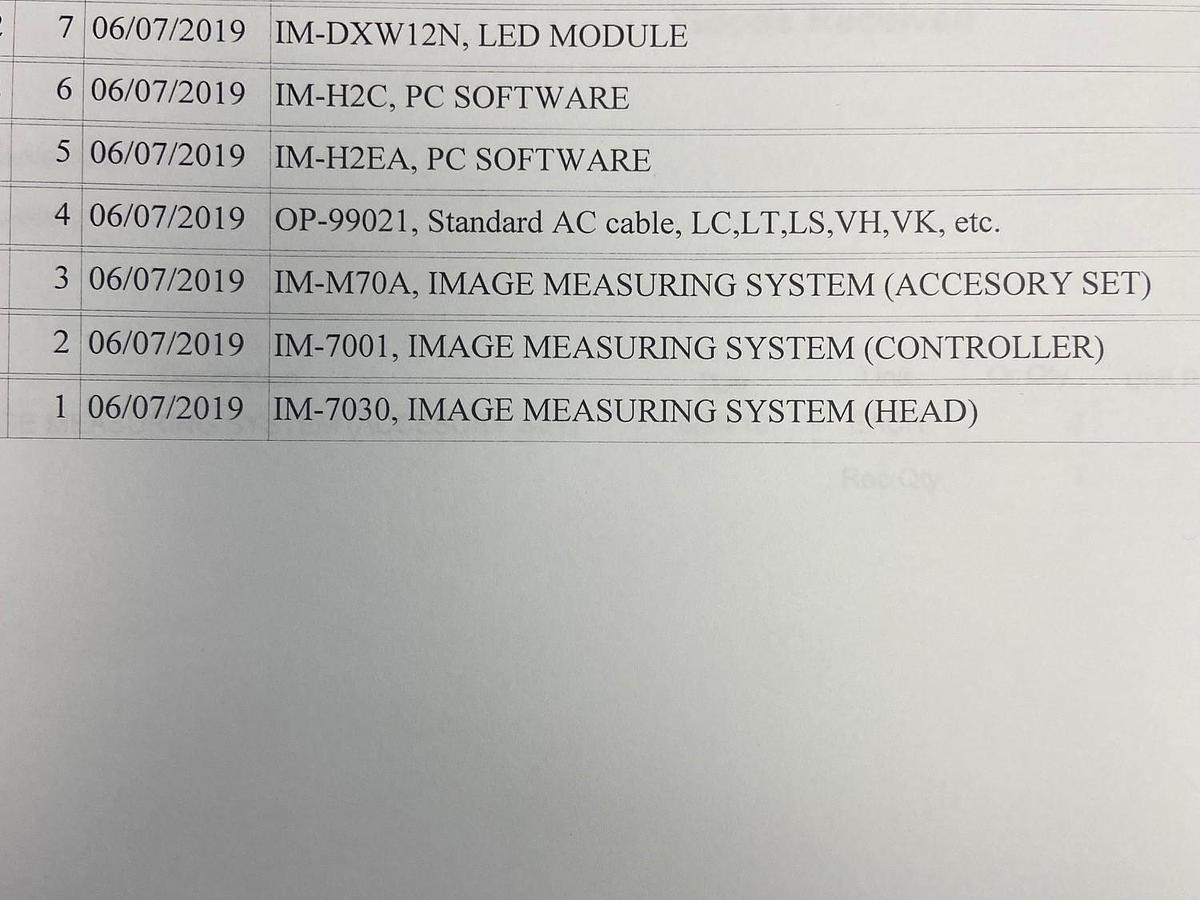

COMES WITH:
TOUCH PROBE
ADDITIONAL LIGHTING FEATURE
LED MODULE
IM-H2C, PC SOFTWARE
IM-H2EA, PC SOFTWARE
STANDARD AC CABLE
IMAGE MEASURING SYSTEM ( ACCESSORY SET )
IMAGE MEASURING SYSTEM ( CONTROLLER )
IMAGE MEASURING SYSTEM ( HEAD )
