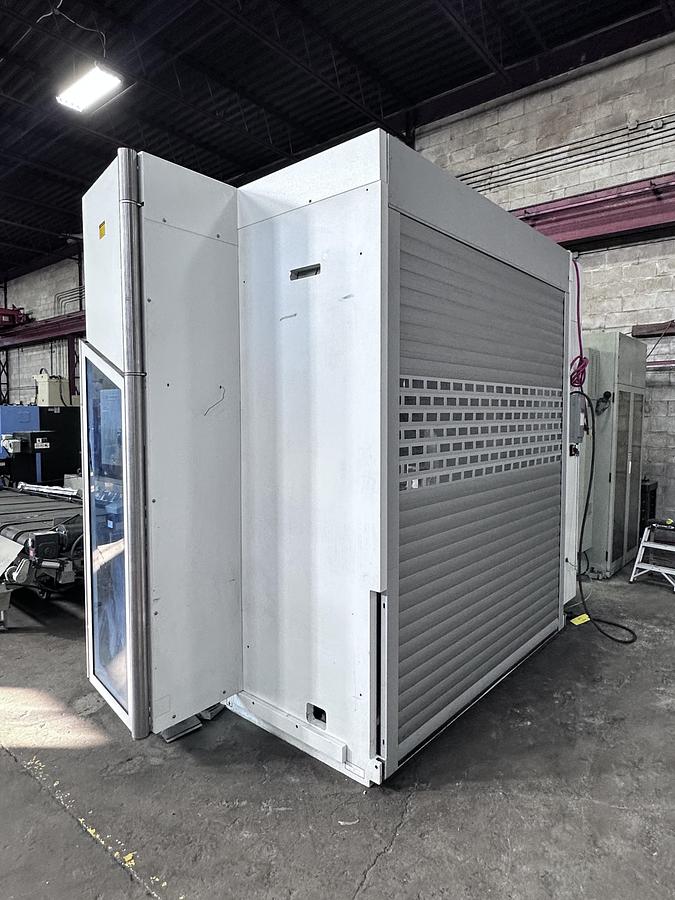

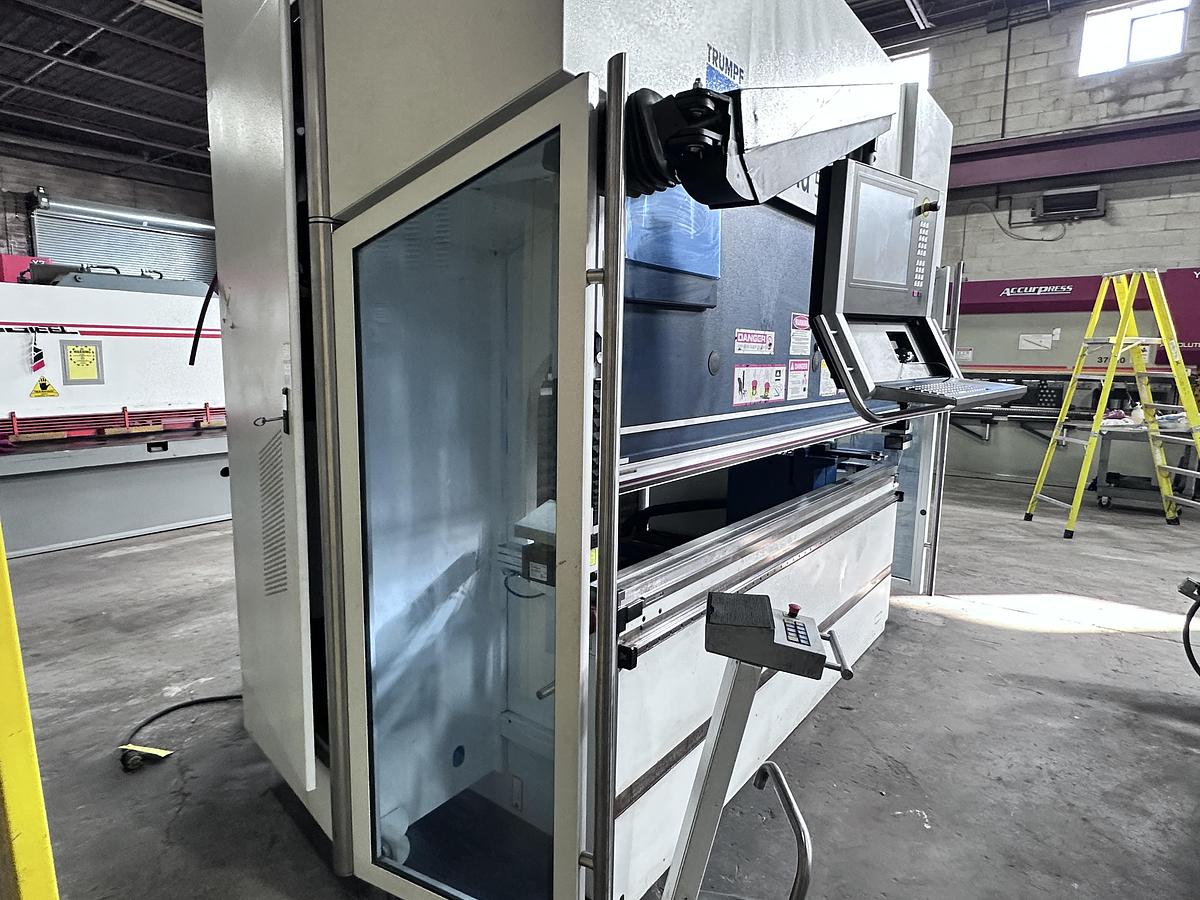

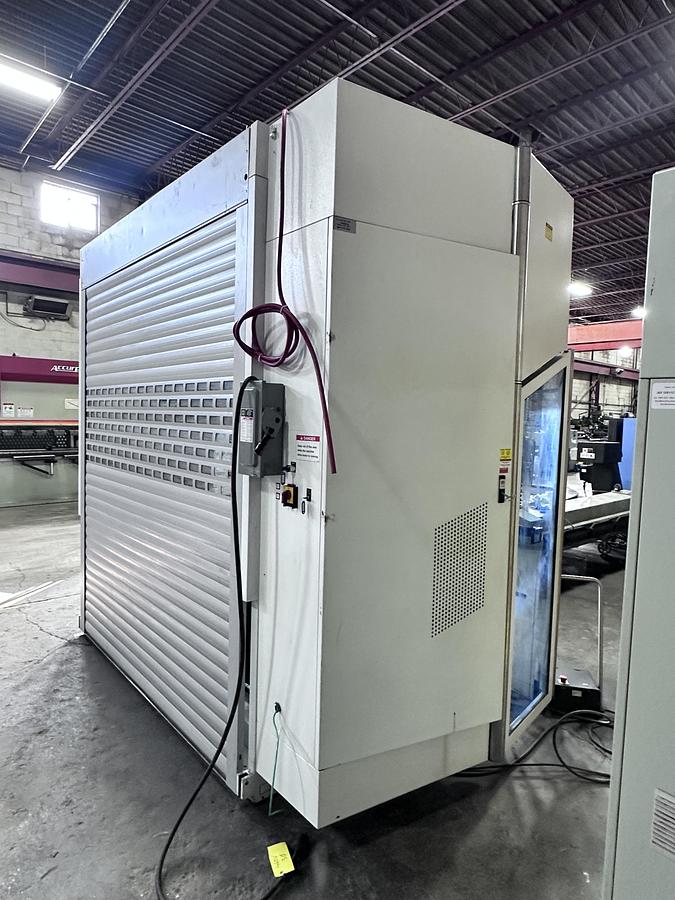

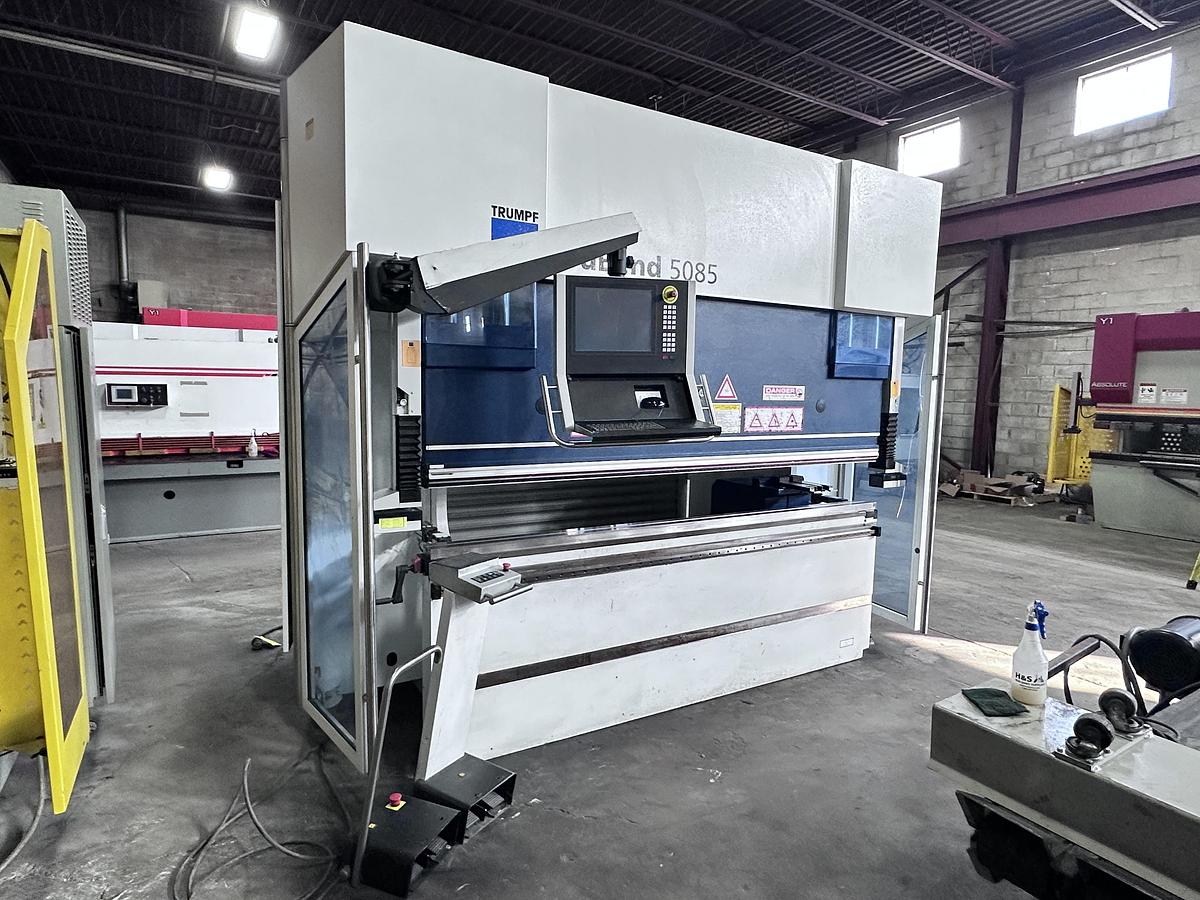

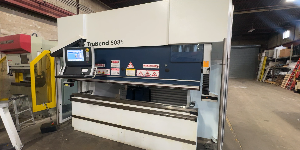

94 TON X 107", TRUMPF, 2012, MODEL TRUBEND 5085, CNC HYDRAULIC PRESS BRAKE
or
Call (905) 669-7507
Specifications
| Manufacturer | TRUMPF |
| Model | 5085 |
| Year | 2012 |
| Stock Number | 4849 |
| TONNAGE | 94 TONS |
| OVERALL BENDING LENGTH | 107" |
| DISTANCE BETWEEN FRAMES | 89" |
| STROKE | 17.5" |
| EXPANDED DIE SPACE | 24.2" |
| THROAT DEPTH | 16.5" |
| BED WIDTH | 4.7" |
| Y-AXIS PRESS SPEED | .24 - 24 IPM |
| SPEEDS: Y-AXIS RAPID | 520 IPM |
| X-AXIS SPEED | 2362 IPM |
| RETURN SPEED | 520 IPM |
| R-AXIS SPEED | 780 IPM |
| APPROX. WEIGHT OF MACHINE | 16,975 LBS. |
| APPROX. OVERALL DIMENSIONS | 142" X 68.5" X 112" TALL |
Equipped With

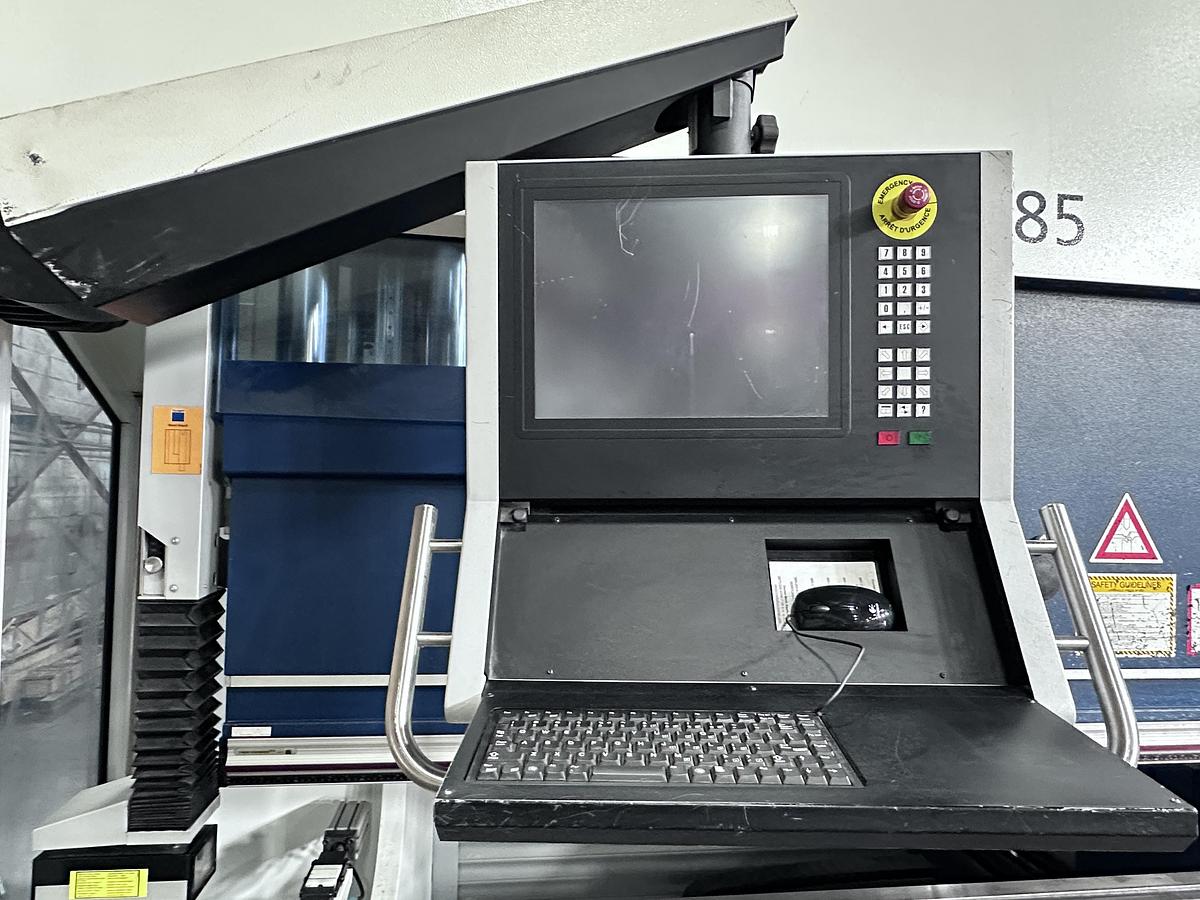

TASC 6000 TOUCH SCREEN CNC CONTROL

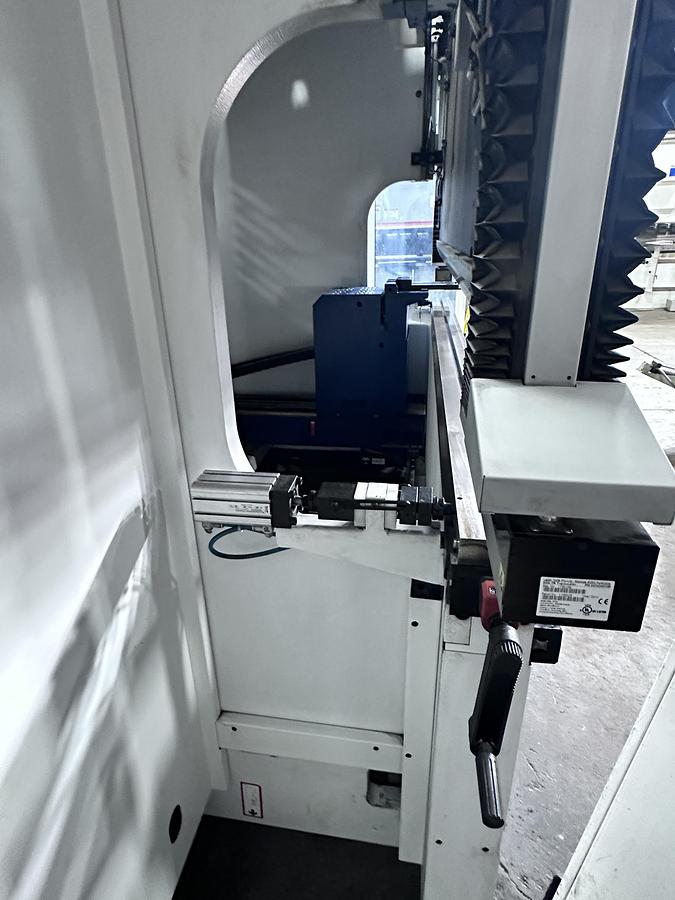

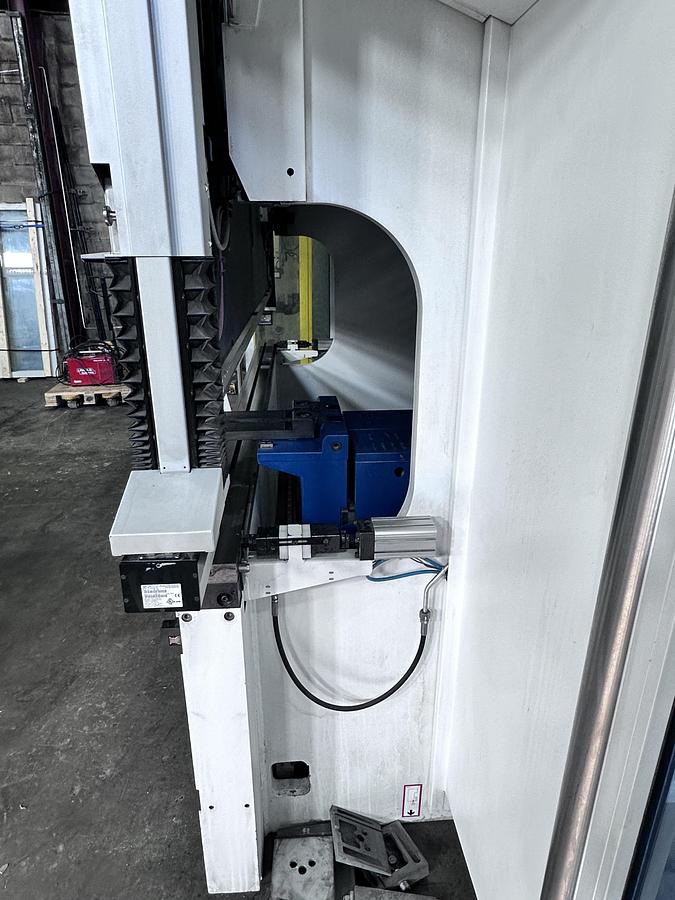

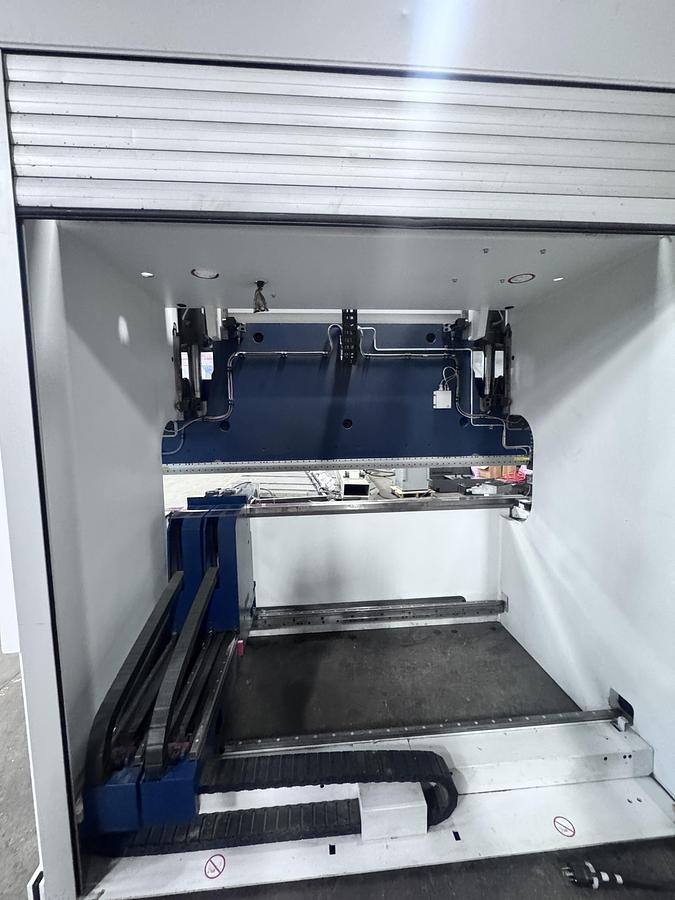

6-AXIS BACKGAUGE - X1, X2 R1 ,R2 , Z1/Z2
I-AXIS CAPABILITY
LAZERSAFE SAFETY SYSTEM

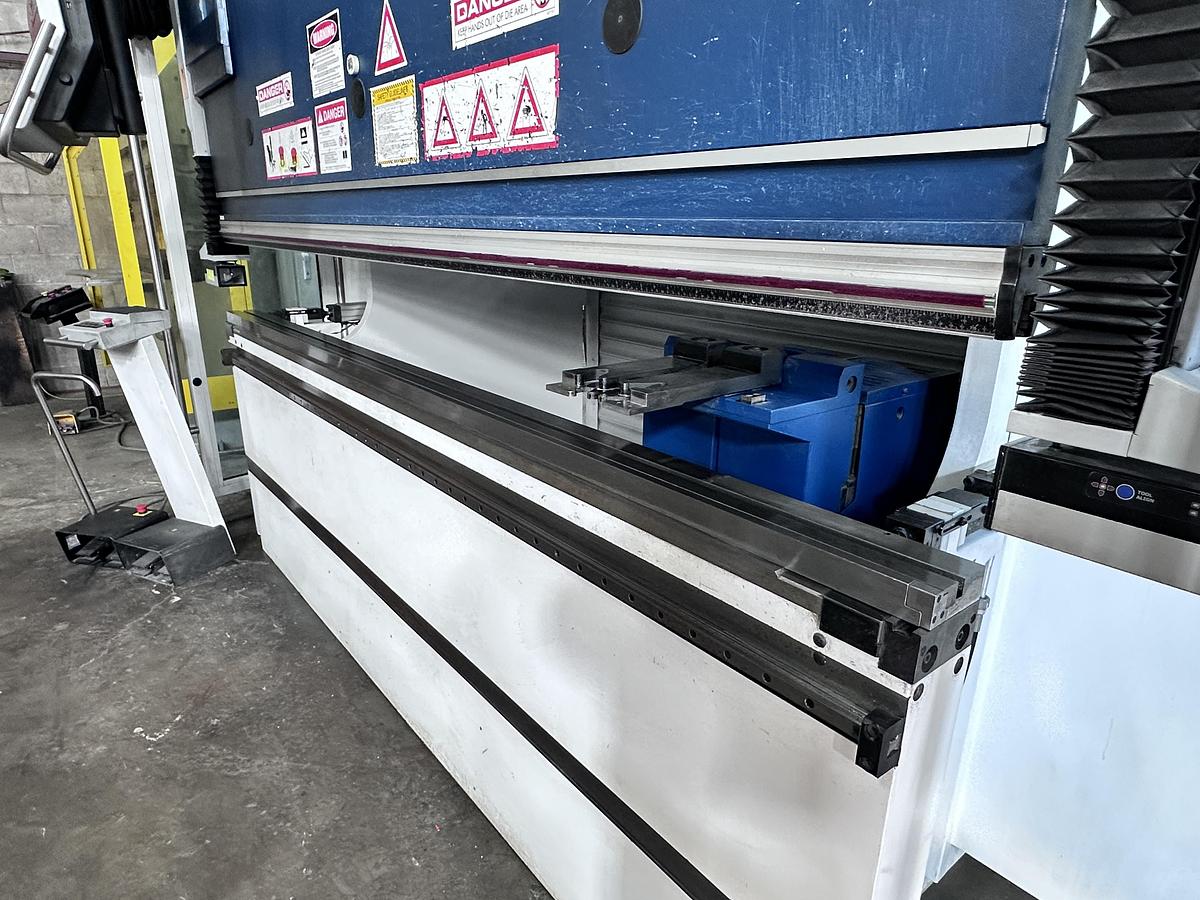

UPPER HYDRAULIC TOOL CLAMPING
LOWER HYDRAULIC TOOL CLAMPING
ADDITIONAL 9" OPEN HEIGHT & STROKE
MANUAL CROWNING
3D VISUAL CONTROL
NETWORKING
