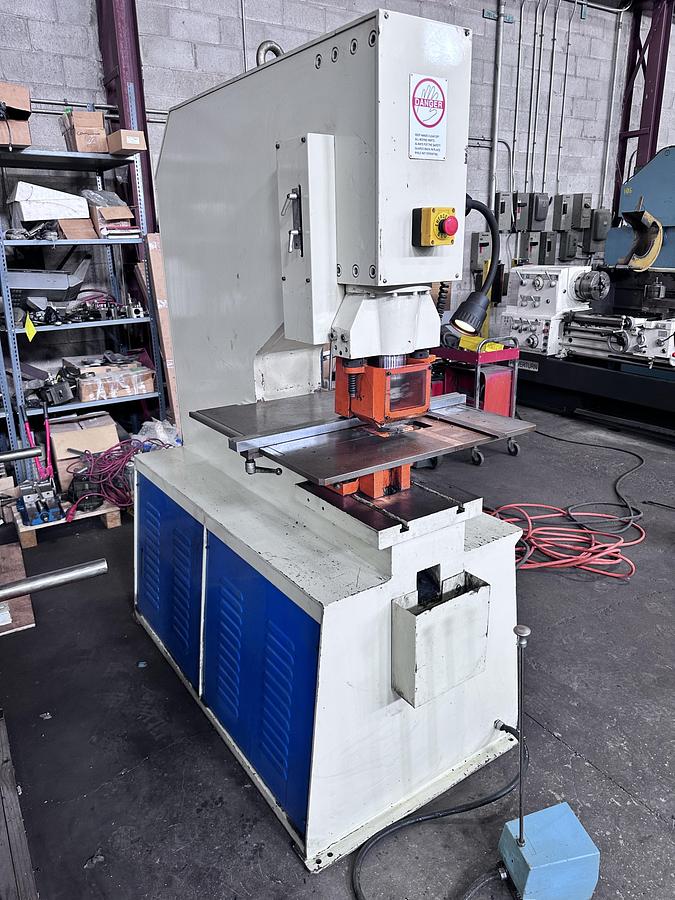

60 TON, FABMASTER, MODEL PM-60LT, HYDRAULIC SINGLE-END PUNCH

or
Call (905) 669-7507

Specifications

ManufacturerFABMASTER
ModelPM-60LT
Year2006
Stock Number4825
PUNCHING PRESSURE60 TON
THROAT DEPTH20"
MAX. CAPACITY ( DIAMETER X THICKNESS )7/8" DIA. HOLE X 11/16" THICK
MOTOR5 HP
Max. stroke length4"
CYCLES PER MINUTE ( 20MM STROKE )28
CHANNEL FLANGE PUNCHING ( H )7"

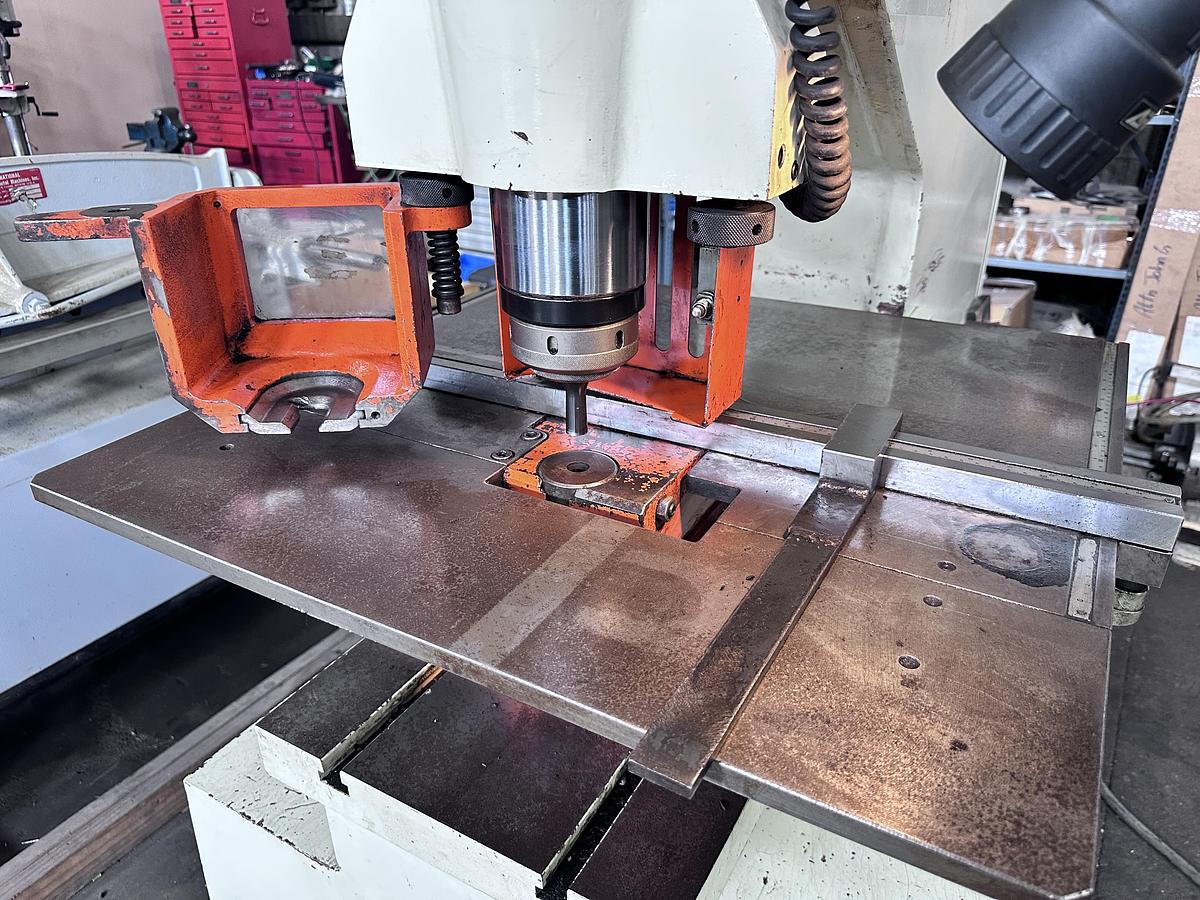

TABLE AREA27.5" X 27.5"
APPROX. WEIGHT4,400 LBS.

Equipped With

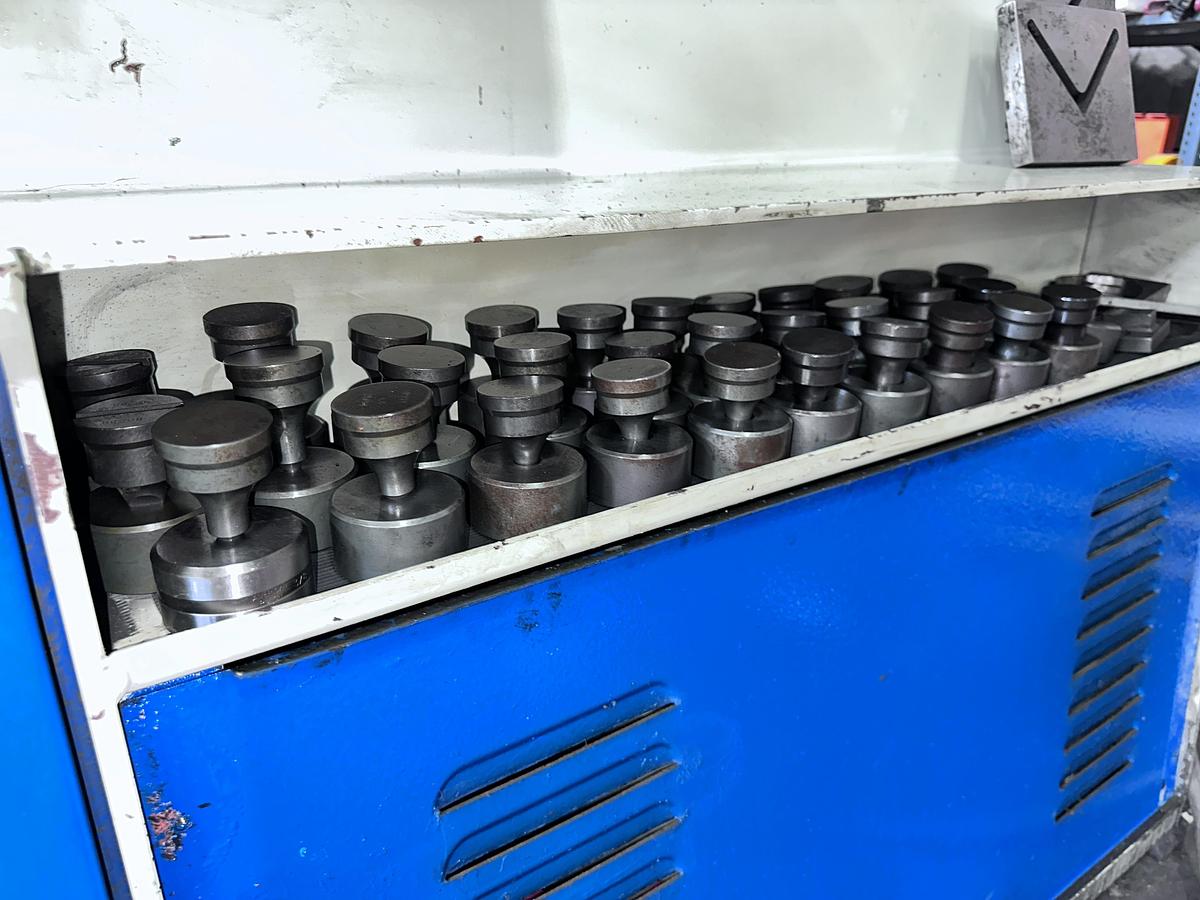

ELECTRIC FOOT PEDAL CONTROL LARGE ASSORTMENT OF PUNCHES & DIES

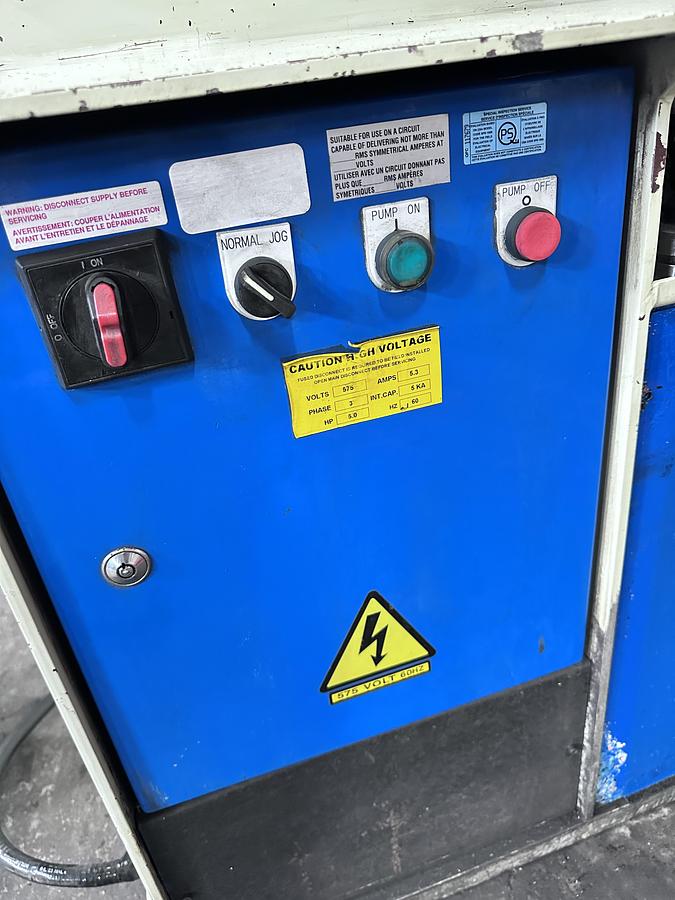

NORMAL / JOG SWITCH

EMERGENCY STOP BUTTON

MNAUL STROKE ADJUSTMENT
