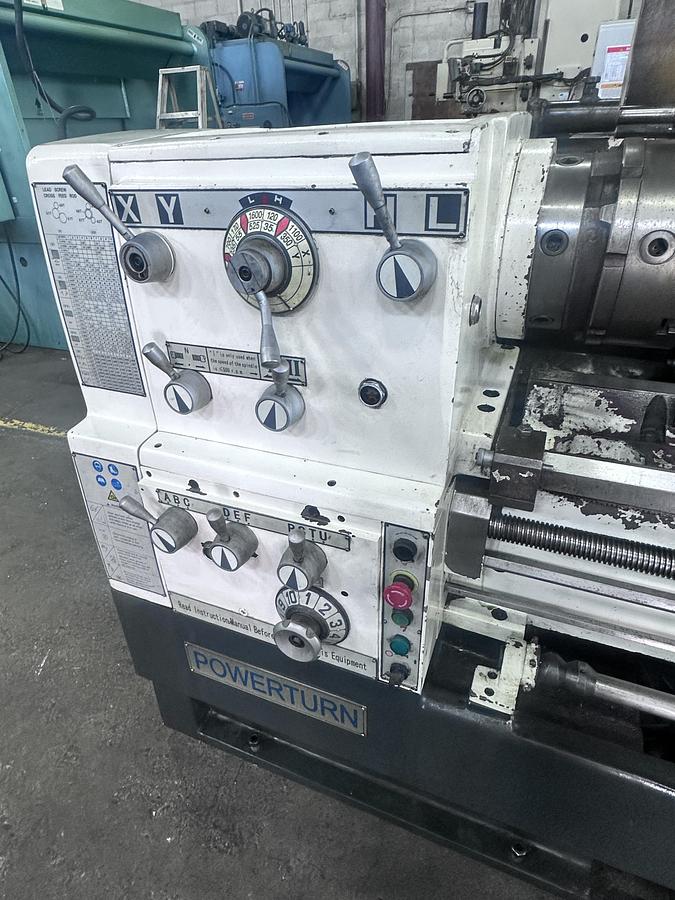

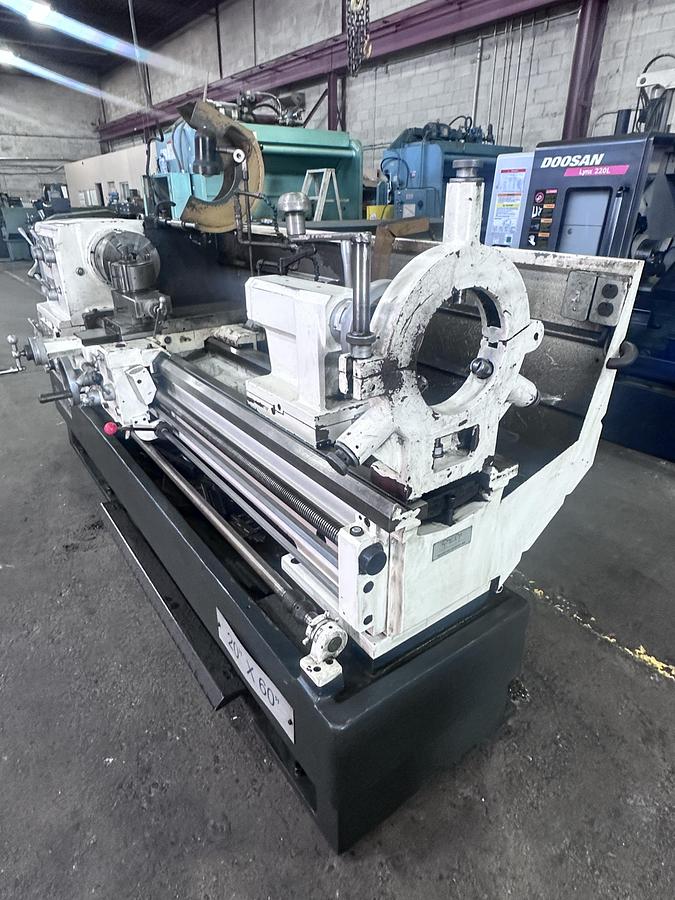

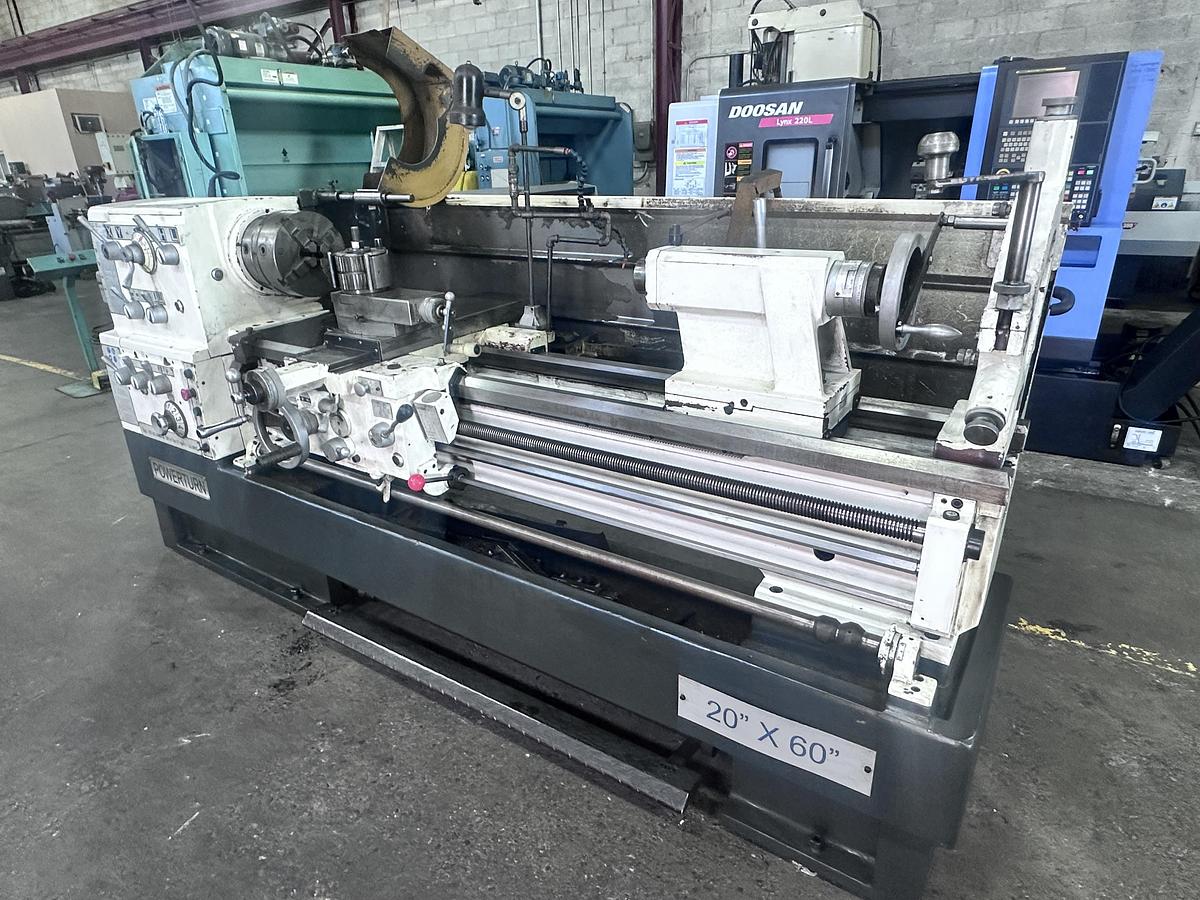

20" X 60" POWERTURN ENGINE LATHE, 2016
Sold
Specifications
| Manufacturer | POWERTURN |
| Model | LO251X1500 |
| Year | 2016 |
| Stock Number | 4823 |
| SWING OVER BEDWAYS | 20" |
| MAX. SWING OVER CROSS SLIDE | 12" |
| SWING IN GAP | 28-1/2" |
| CENTER DISTANCE | 60" |
| SPINDLE BORE | 3-1/8" |
| SPINDLE NOSE - CAMLOCK | D1-8 |
| SPINDLE SPEEDS | 25 - 1600 RPM |
| SPINDLE TRAVEL OF TAILSTOCK | 6-1/4" |
| TAILSTOCK TAPER | 5 MT |
| MAIN SPINDLE MOTOR | 10 HP |
| APPROX. WEIGHT OF MACHINE | 5,200 LBS. |
| ELECTRICS | 600V/3/60 |
Equipped With

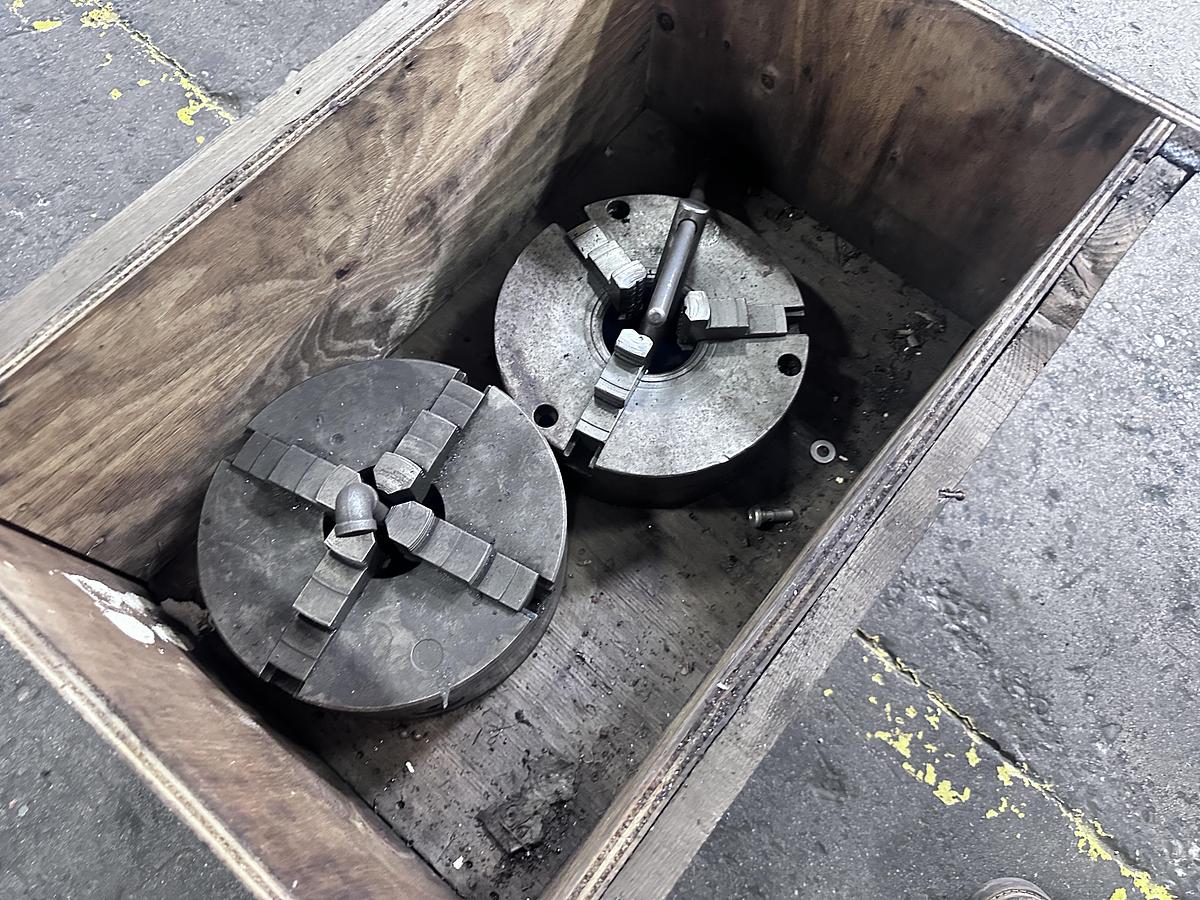

Quick Change Toolpost 40 Pos. w/ toolholders ( 2) - 3 Jaw Chucks 10” Dia. (1 ) - 4 Jaw Chuck 10" Dia. Steady Rest One Piece Cast Base
Hardened & Ground Bed Ways
Inch & Metric Threading
Foot Pedal Brake
Coolant System
Splash Guard
Threading Cutting Dial
