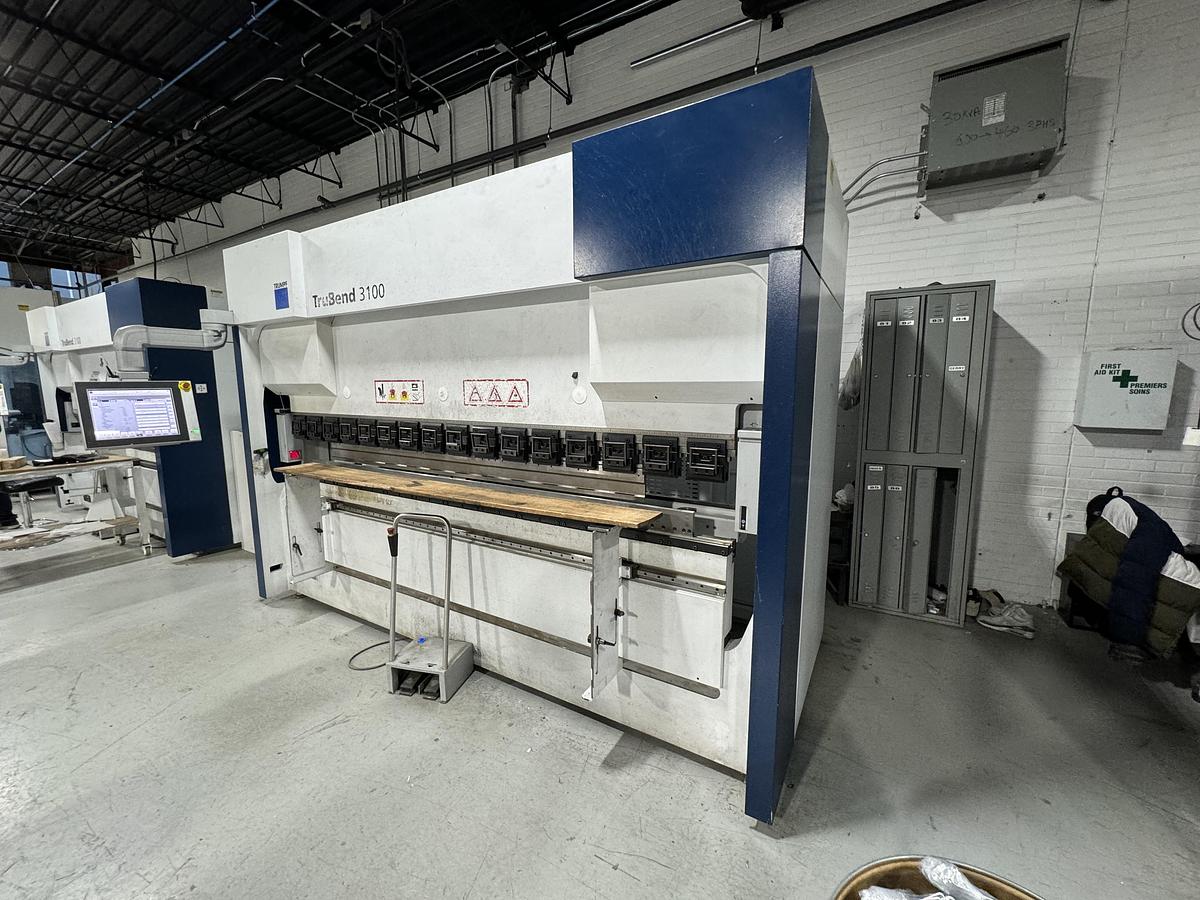

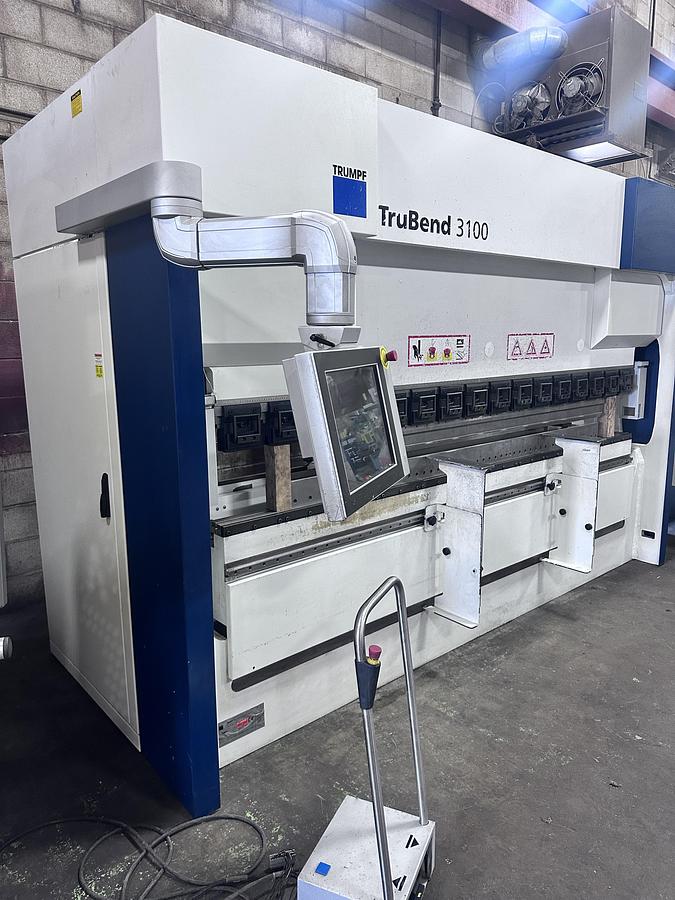

110 TON X 10', TRUMPF, TRUBEND 3100, CNC HYDRAULIC PRESS BRAKE - 2015
or
Call (905) 669-7507
Specifications
| Manufacturer | TRUMPF |
| Model | TRUBEND 3100 |
| Year | 2015 |
| Stock Number | 4808 |
| TONNAGE | 110 TON |
| OVERALL BENDING LENGTH | 120" |
| DISTANCE BETWEEN FRAMES | 133" |
| STROKE | 7.87" |
| OPEN HEIGHT | 17" |
| APPROX. WEIGHT | 16,975 LBS. |
| Y AXIS SPEED | 472 IPM |
| BEND SPEED | 35 IPM |
Equipped With

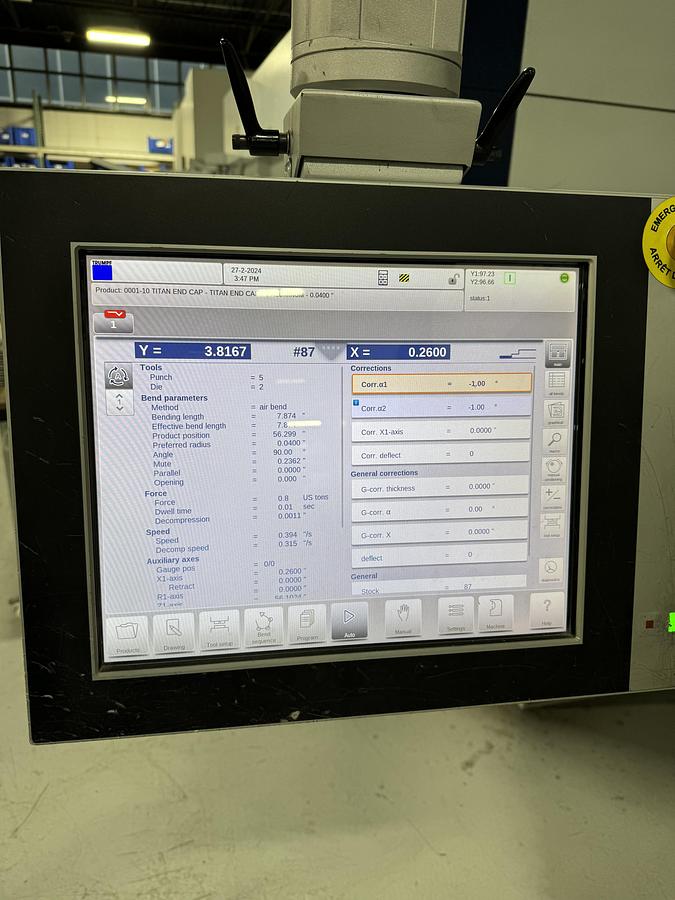

17" T3500T MULTI-TOUCH CNC CONTROL - 6-AXIS CONTROL
HYDRAULIC CNC CROWNING

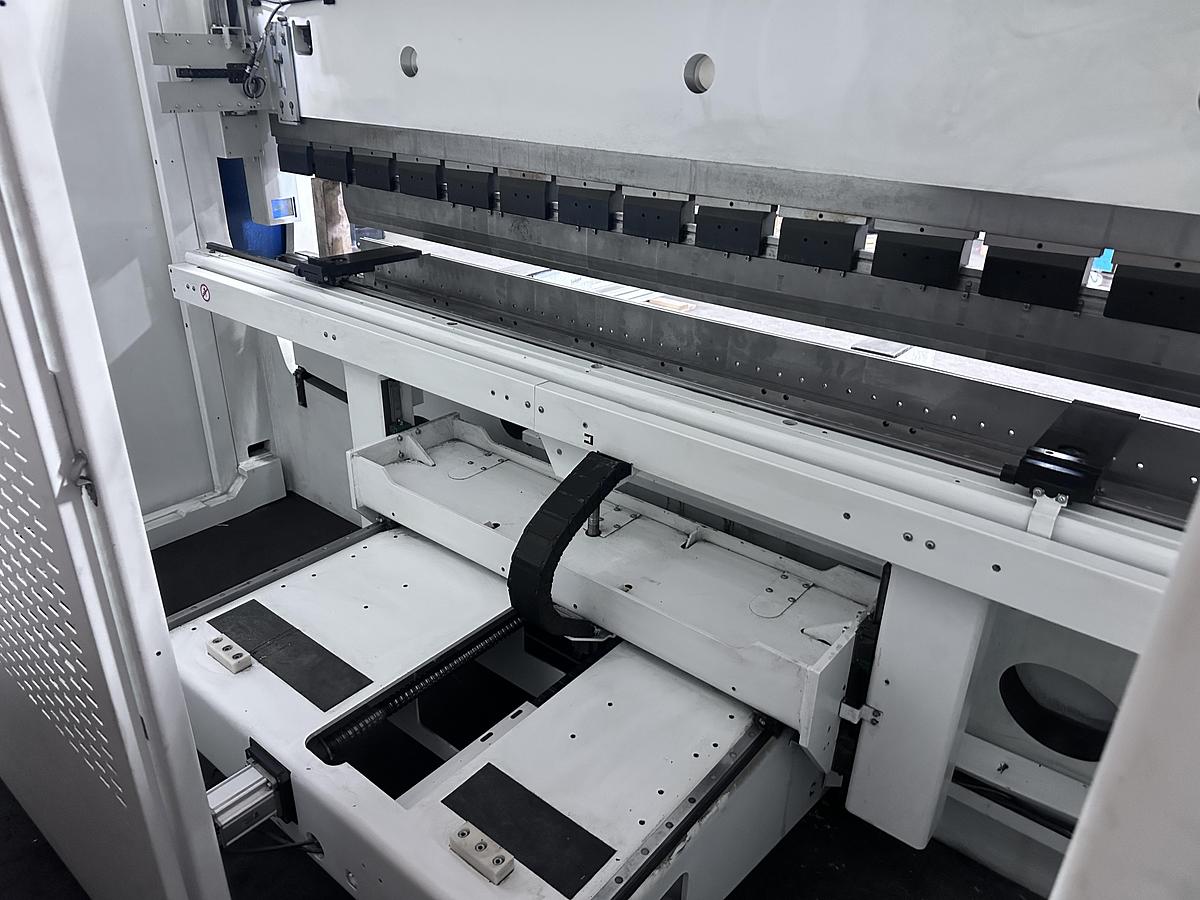

4 AXIS BACK GAUGE (X,R, Z1, Z2)
MANUAL QUICK CLAMPS
LASER SAFETY LIGHTS
2 X FRONT SHEET SUPPORTS ON SLIDING RAIL
FOOT PEDAL CONTROL
