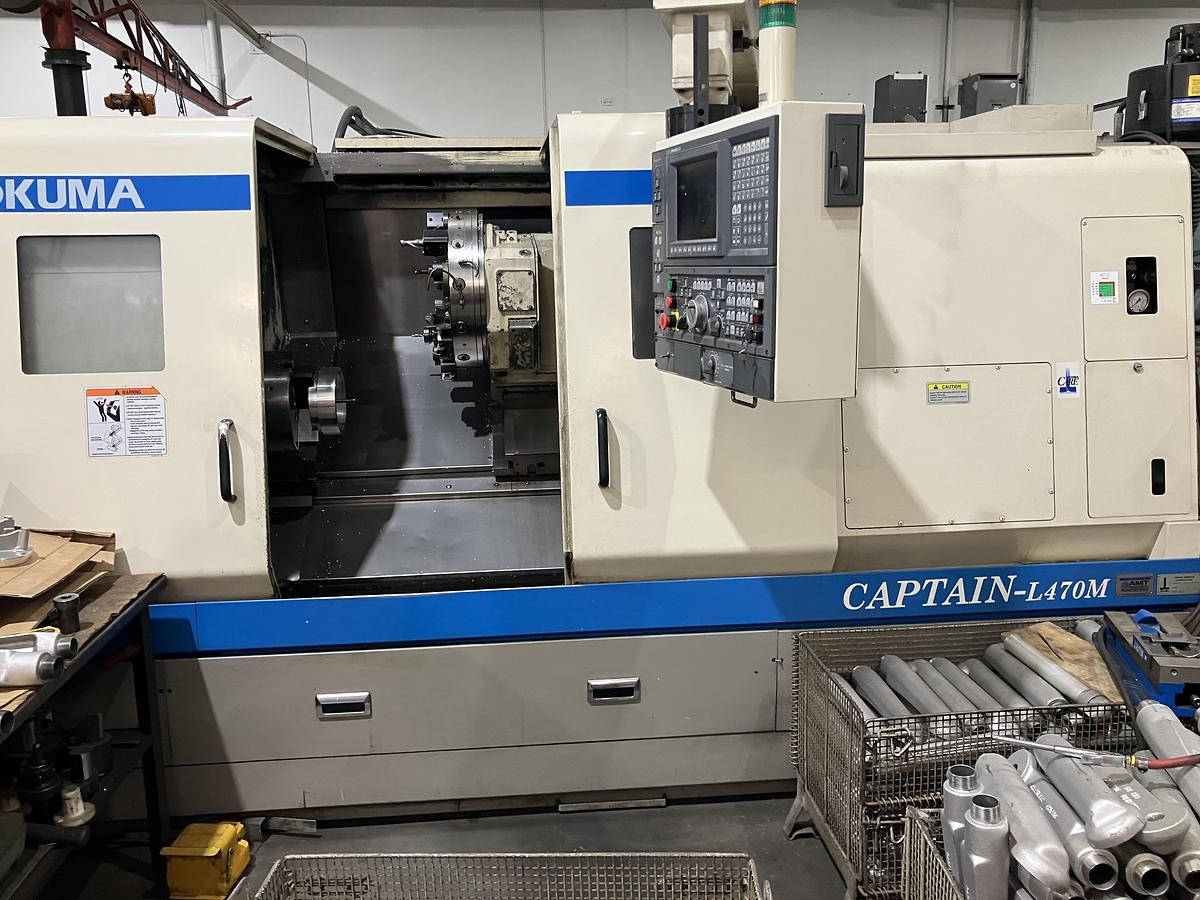

OKUMA CAPTAIN 470M CNC TURNING CENTER W/MILLING & TAILSTOCK, NEW 2003
Sold
Specifications
| Manufacturer | OKUMA |
| Model | CAPTAIN 470M |
| Year | 2003 |
| Stock Number | 4805 |
| SWING OVER BED | 24.41" |
| SWING OVER SADDLE | 16.54" |
| MAX. TURNING LENGTH | 49.2" |
| SPINDLE NOSE | A2-11" |
| BORE DIAMETER | 4.33" |
| RANGE OF SPINDLE SPEED | 15 - 3000 RPM |
| LONGITUDINAL TRAVEL ( Z-AXIS ) | 51.57" |
| CROSS-SLIDE TRAVEL ( X-AXIS ) | 11.81" |
| RAPID TRAVERSE SPEEDS: | Z-AXIS 984 IPM / X-AXIS 787 IPM |
| TYPE & NO. OF TOOL STATIONS | VERT 12 |
| C-AXIS | .001 |
| ROTARY TOOL SPINDLE SPEED | 45 - 3000 RPM |
| ROTARY TOOL HP | 7.5 HP |
| MAIN SPINDLE DRIVE MOTOR | 30 HP |
| DIAMETER OF QUILL ( TAILSTOCK ) | 3.54" |
| QUILL STROKE | 4.72" |
| QUILL CENTER | MT #5 |
| APPROX. WEIGHT | 14,800 LBS. |
Equipped With

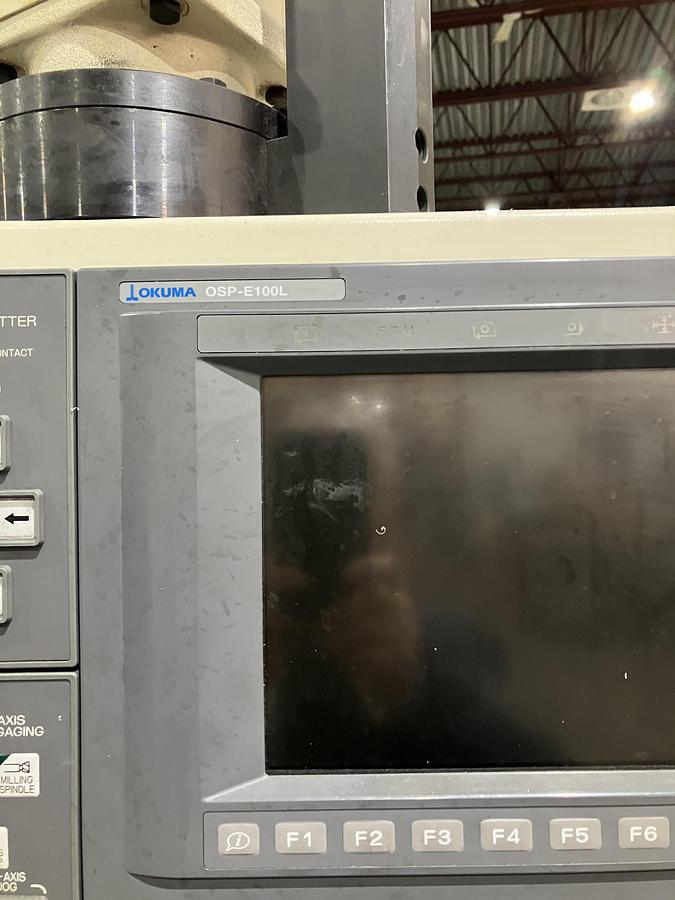

OSP E100L CNC CONTROL
ONE TOUCH IGF
TAPE DATA IN/OUT
320M MEMORY
TOUCH SETTER
HI-G CONTROL

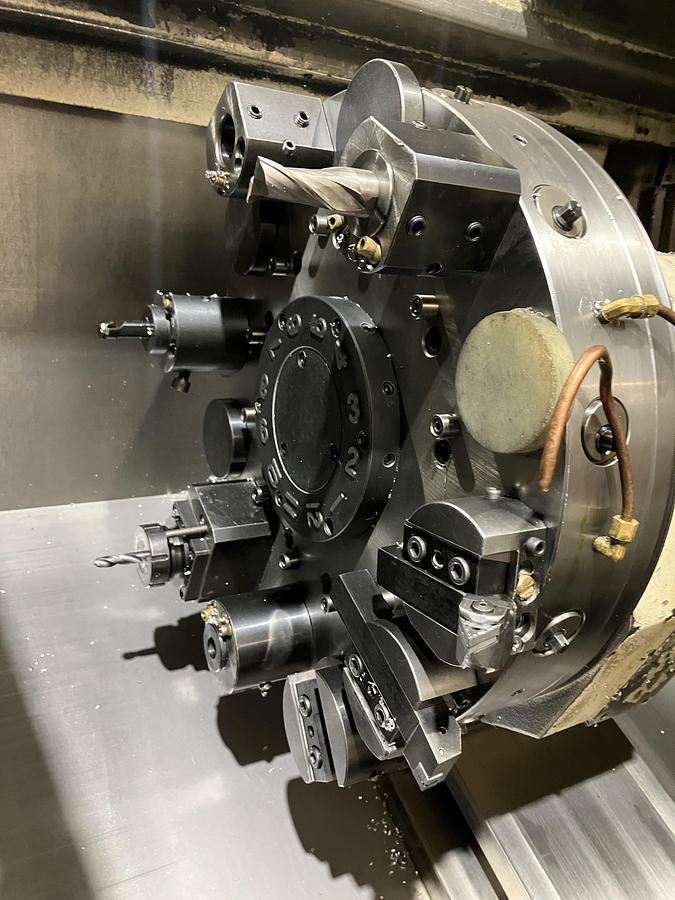

NC TURRET
PLANE CONVERSION
TURRET POSITION COMP.
TOOL LIFE MGMT
PROFILE GENERATION
SYNCHRO TAPPING
HEAVY TOOLING
TOOL WEAR COMP.
NC TORQUE LIMIT
I/M SWITCH
MULTIPLE MACHINE
LAP-4
NOSE-R 2B
USER TASK II
T/M AXIS SWITCH
EXP. AUTO CHAMFER
MAC MAN
ONE TOUCH IGF
PROGRAMMING HELP
SERVO LINK NC
SERVO LINK SPINDLE
3D ANIMATION
LOAD MONITOR
CENTER WORK

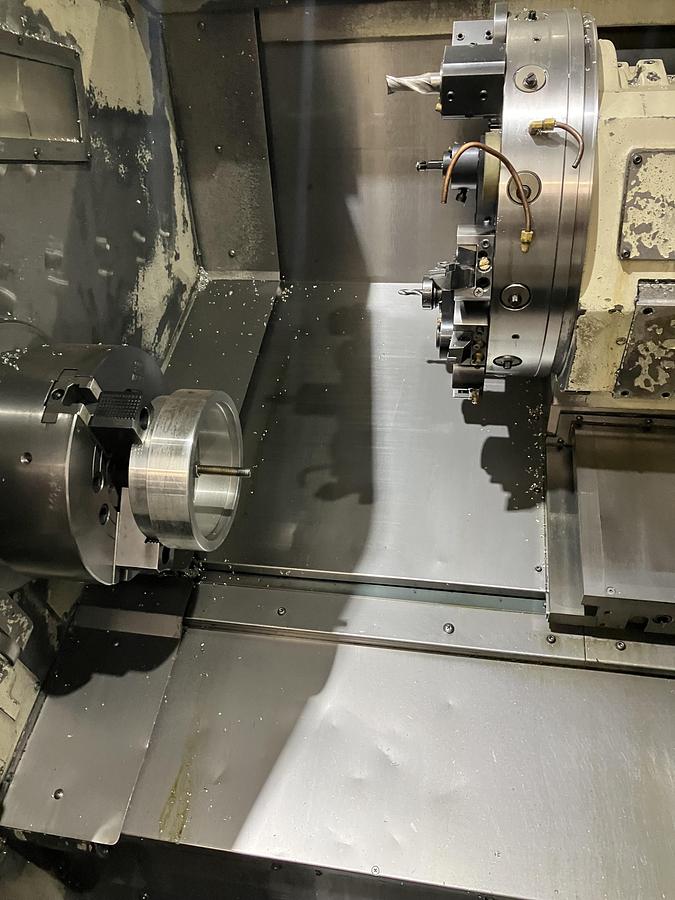

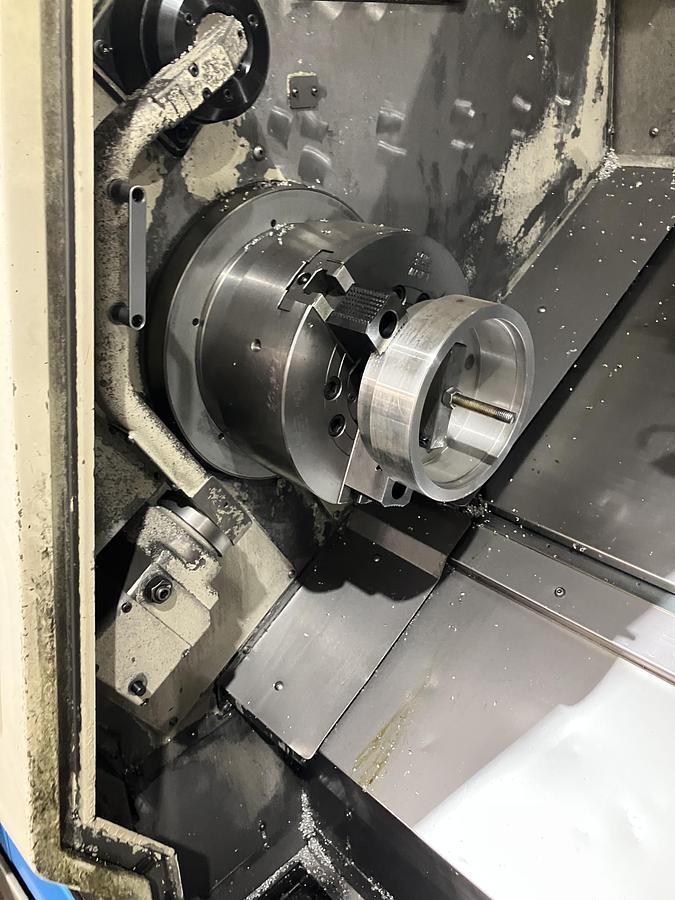

12" 3-JAW HYDRAULIC CHUCK
CHUCK GRSP COMF

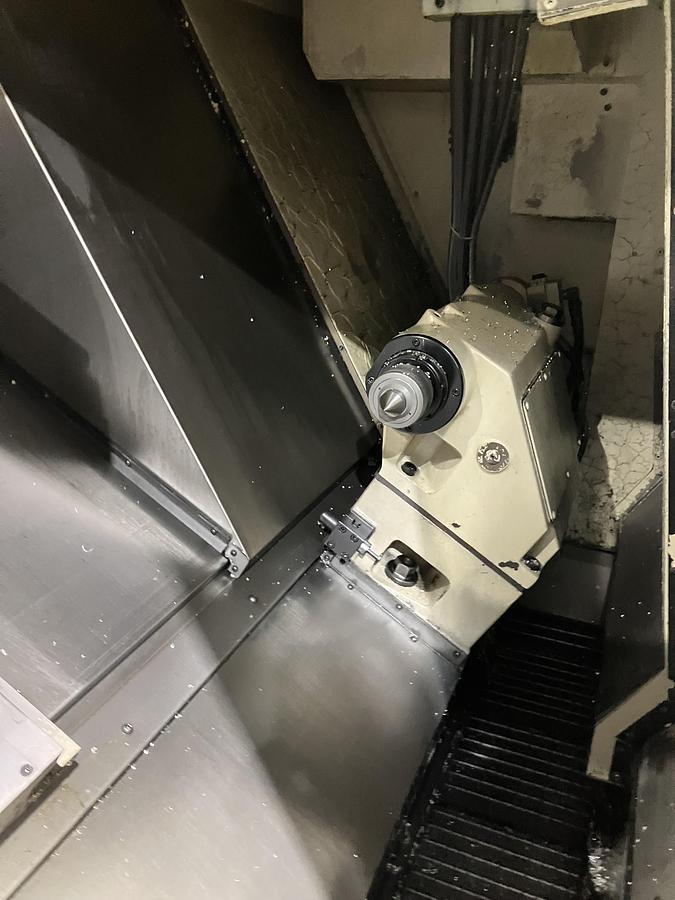

SIMPLE TOW-ALONG TAILSTOCK
M-AXIS ORIENT.
TOOL PRESETTER
LIVE HEADS
SYNC TAP ON MILL HEADS
ALL AVAILABLE MANUALS
ALL AVAILABLE TOOL HOLDERS
