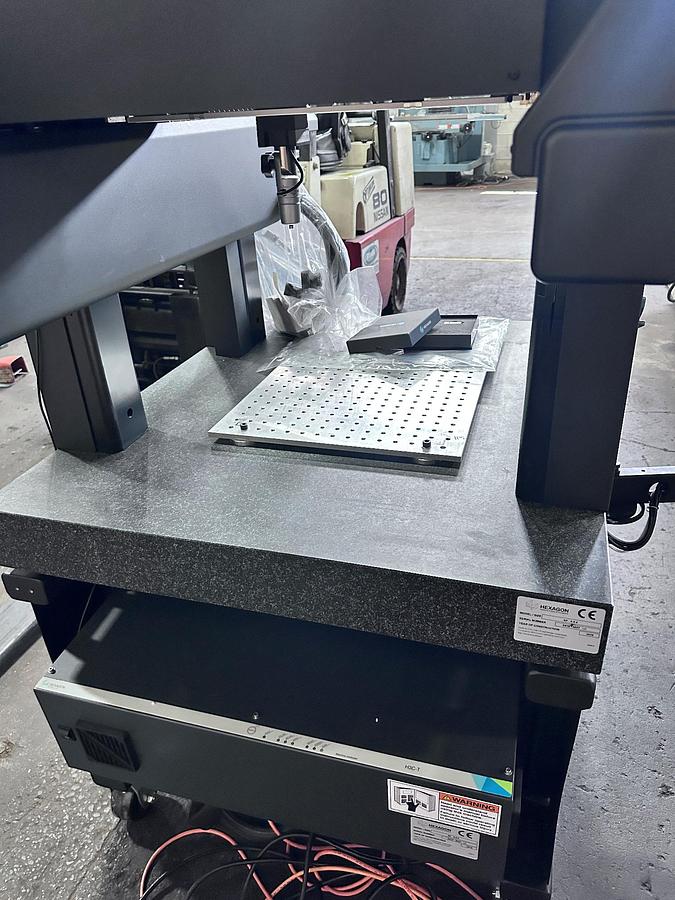

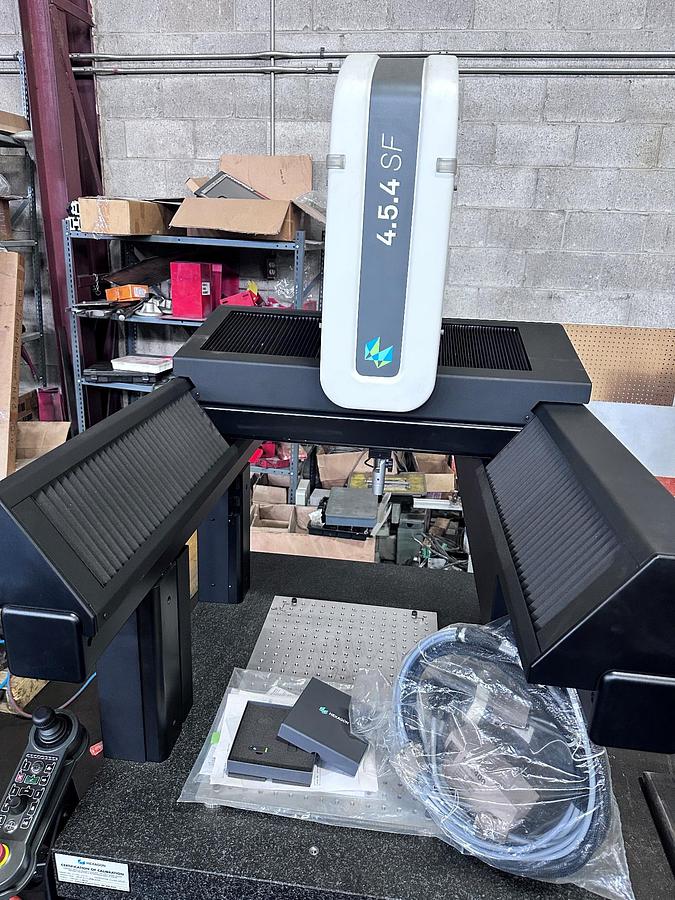

2018 HEXAGON SF4.5.4 CMM
or
Call (905) 669-7507
Specifications
| Manufacturer | HEXAGON |
| Model | SF 4.5.4 |
| Year | 2018 |
| Stock Number | 4800 |
| MEASURING ENVELOPE | X - 14", Y - 20.2", Z - 13.9" |
| WORK CAPACITY | X (UPPER) - 20.8", X (LOWER) - 24", Y - 43.3", Z - 18" |
| RECOMMENDED WORKPIECE WEIGHT | 350 LBS. |
| ELECTRICAL | 110V/1/60 |
| OVERALL APPROX. DIMENSIONS | X - 43.5", Y - 61.2", Z - 79.5" |
| APPROX. WEIGHT OF MACHINE | 1,390 LBS. |
Equipped With

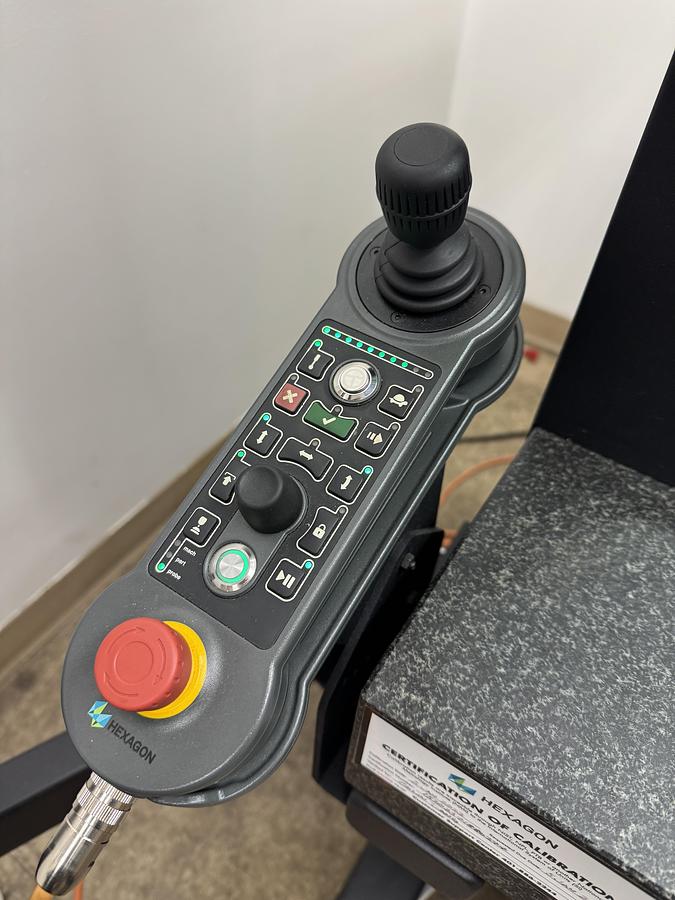

HAND HELD REMOTE

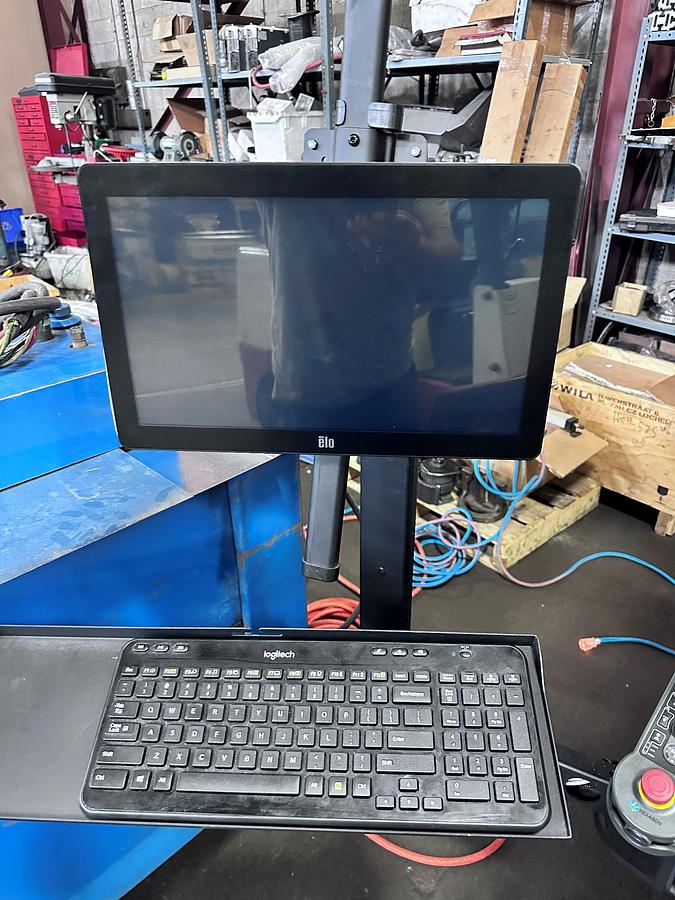

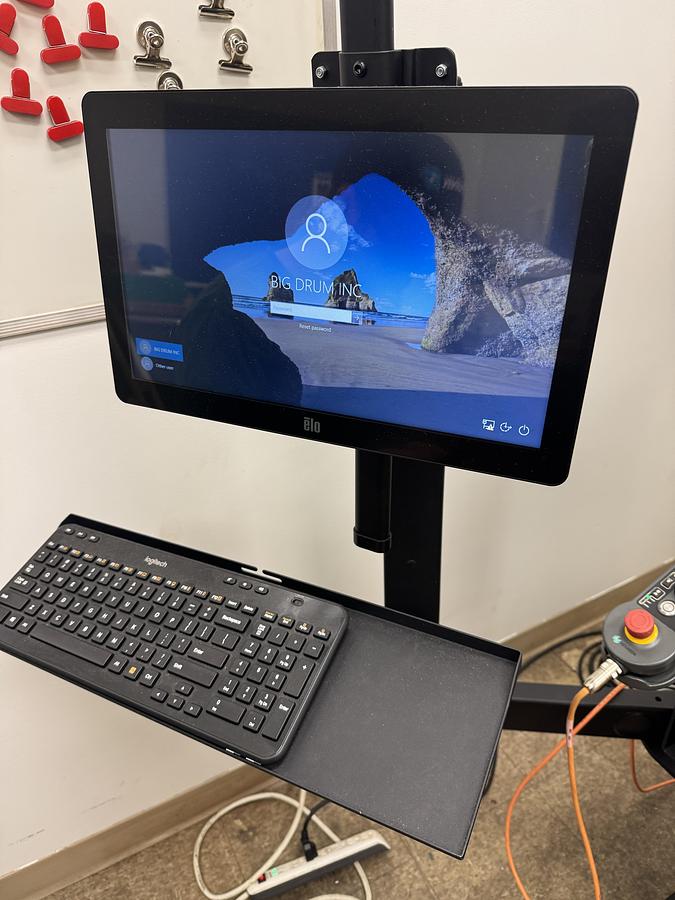

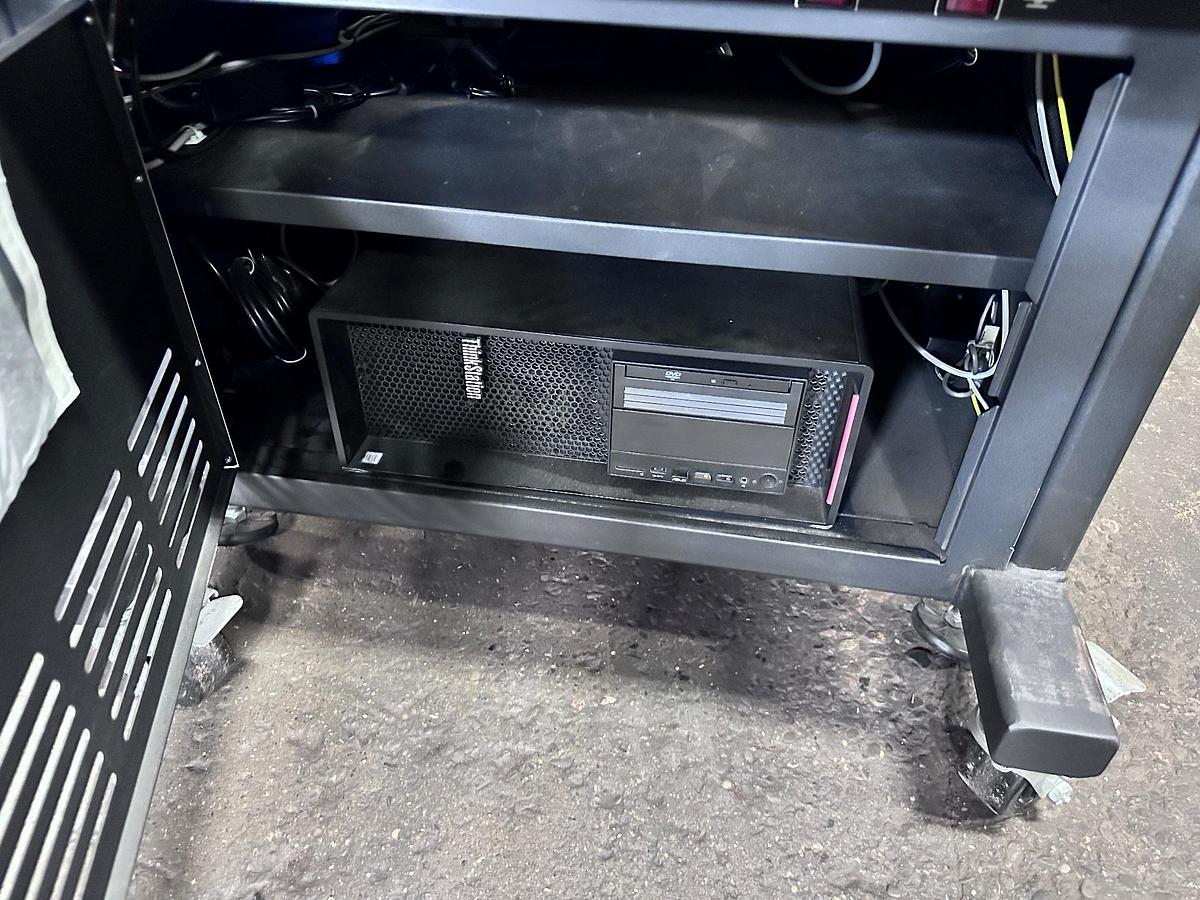

PC /MONITOR/ PC DIMIS CAD ( 2022 Version )
