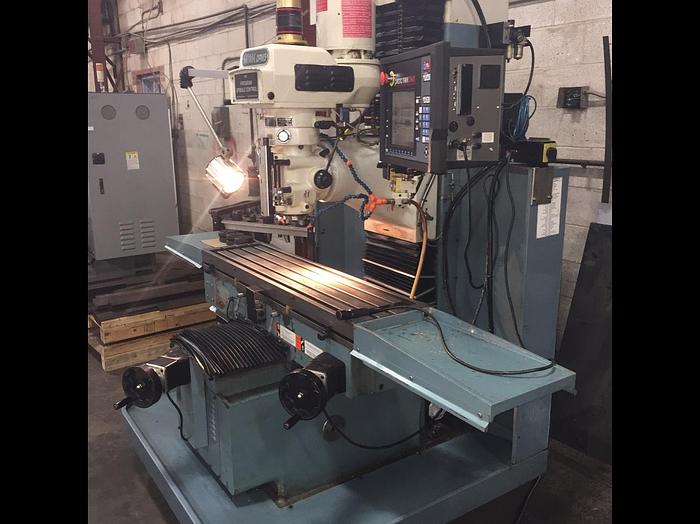

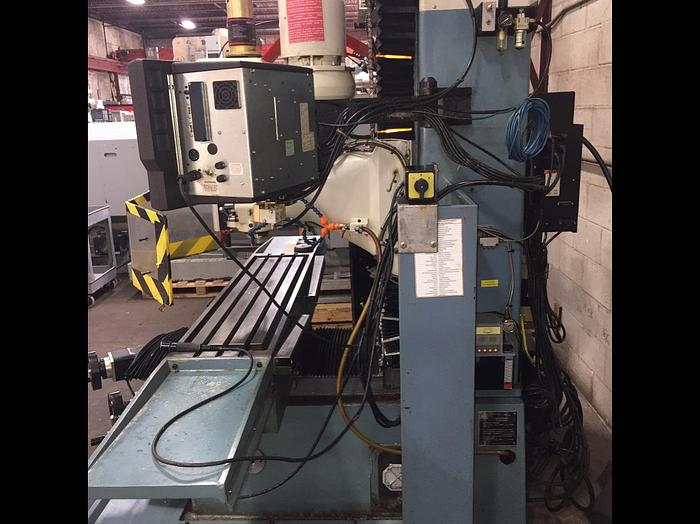

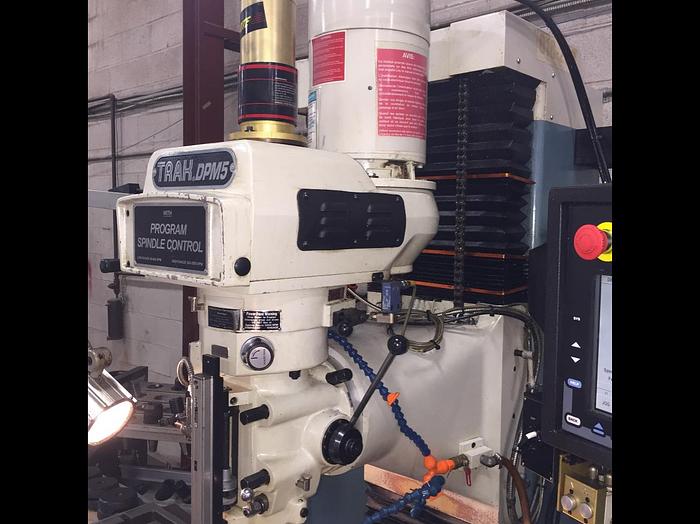

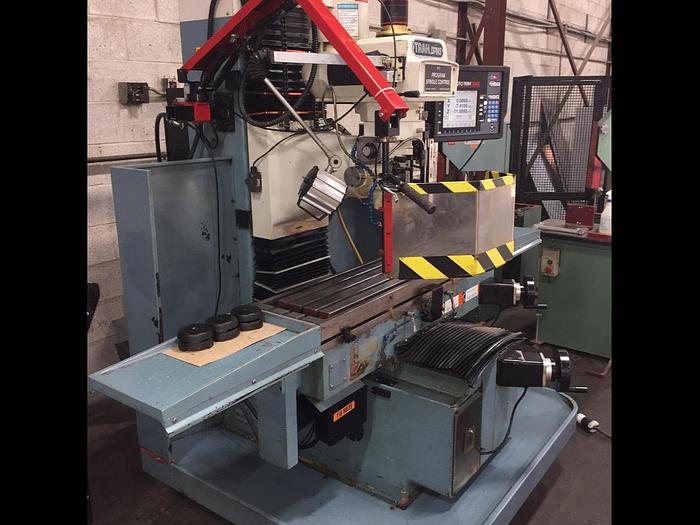

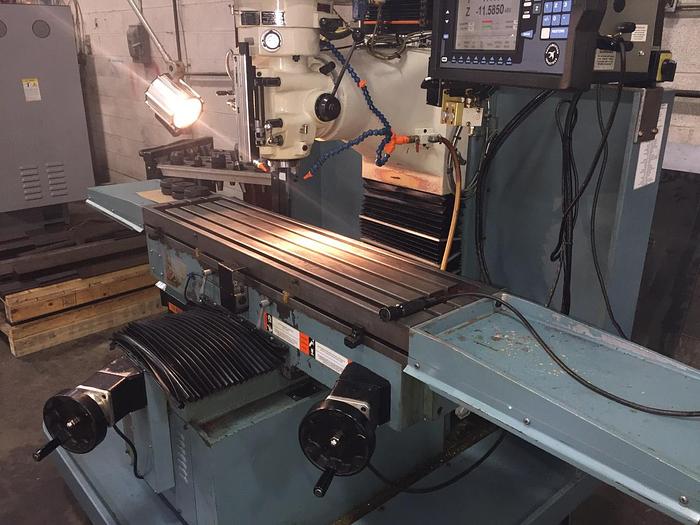

12" X 50" SWI, TRAK, DPM5SX5P ,2012 CNC VERTICAL BED TYPE MILL
Sold
Specifications
| Manufacturer | SWI, TRAK |
| Model | TRAK DPM SX5P |
| Year | 2012 |
| Stock Number | 4052 |
| TABLE SIZE | 12" X 50" |
| TRAVELS (X, Y, Z) | 40" X, 20"Y, 23.5"Z |
| QUILL DIAMETER | 3-15/16" |
| MAX. QUILL TRAVEL | 5" |
| SPINDLE TAPER | NMTB 40 |
| SPINDLE SPEEDS | 40 - 5000 RPM |
| SPINDLE MOTOR | 5 HP |
| MAX. WORKPIECE WEIGHT | 1,760 LBS. |
| MACHINE WEIGHT | 4500 LBS |
Equipped With

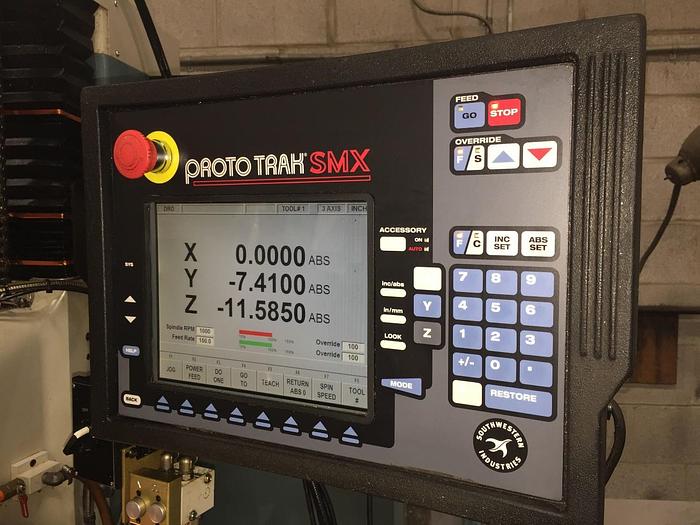

3 AXIS PROTOTRAK SMX CNC CONTROL (RUN IN MANUAL OR CNC MODE)
ELECTRONIC PROGRAMMABLE SPINDLE SPEEDS
30 TOOL HOLDERS POWER DRAWBAR PRECISION GROUND BALLSCREWS IN THE TABLE, SADDLE AND RAM CHROME HARDENED & GROUND QUILL ELECTRONIC HANDWHEELS WITH FINE/COURSE RESOLUTION AUTO LUBE PUMP
