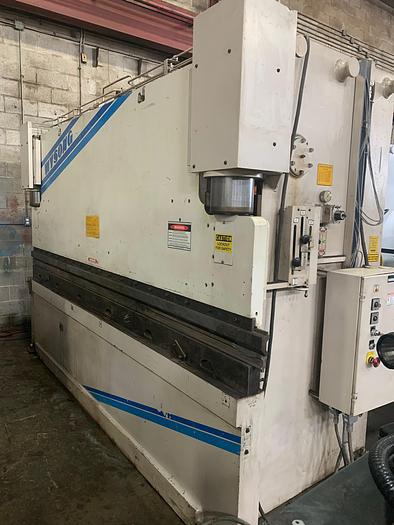

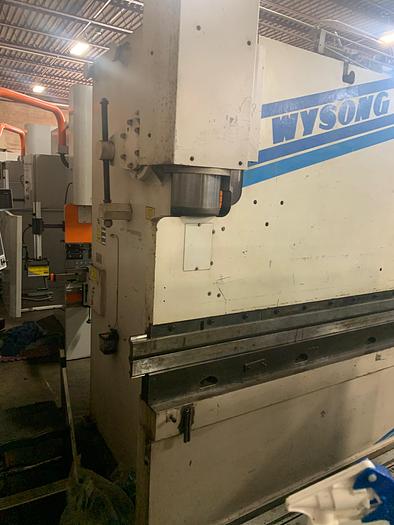

175 TON X 12', WYSONG, HYDRAULIC PRESS BRAKE
Sold
Specifications
| Manufacturer | WYSONG |
| Model | MTH 175-144 |
| Year | 1999 |
| Stock Number | 4030 |
| TONNAGE | 175 TON |
| OVERALL BENDING LENGTH | 144" |
| DISTANCE BETWEEN FRAMES | 126" |
| STROKE | 8" |
| OPEN HEIGHT | 19" |
| CLOSED HEIGHT | 9" |
| MOTOR | 15 HP |
| ELECTRICS | 575 V/3/60 |
| APPROX. WEIGHT | 25,800 LBS. |
| THROAT DEPTH | 8" |
| APPROACH SPEED | 300 IPM |
| PRESS SPEED | 22 IPM |
| RETURN SPEED | 250 IPM |
Equipped With
DUAL PALM & FOOT PEDAL CONTROL REAR OPERATED MANUAL BACK GAUGE ASSORTED BRAKE TOOLING
