146 Ton x 10', MODEL HFE M2 1303, 2017, 8-AXIS CNC HYDRAULIC PRESS BRAKE
Sold
Specifications
| Manufacturer | AMADA |
| Model | HFE M2 1303 |
| Year | 2017 |
| Stock Number | 4625 |
| MAX. TONNAGE | 146 TON |
| MIN. TONNAGE | 16.9 TONS |
| WORKING LENGTH | 123" |
| TABLE WIDTH | 3.54" |
| WORKING HEIGHT | 37.8" |
| OPEN HEIGHT | 18.5" |
| STROKE LENGTH | 7.87" |
| THROAT DEPTH | 16.5" |
| DISTANCE BETWEEN FRAMES | 106.3" |
| MAX. APPROACH SPEED | 3.94"/SEC. |
| MAX. BENDING SPEED | 0.39"/SEC. |
| MAX. RETURN SPEED | 0.394"/SEC. |
| APPROX. DIMENSIONS | 174.8" L-R X 103.3" F-B X 110.8" TALL |
| APPROX. WEIGHT | 17,970 LBS. |
Equipped With

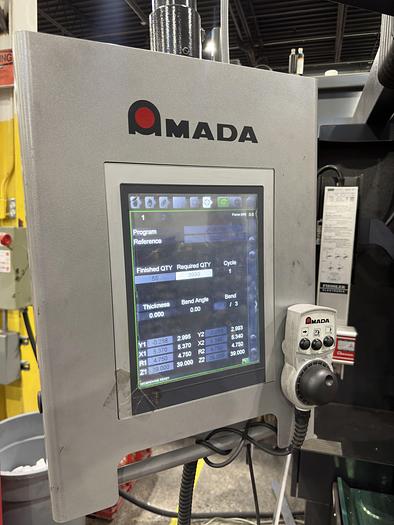

AMADA 8-AXIS CNC CONTROL

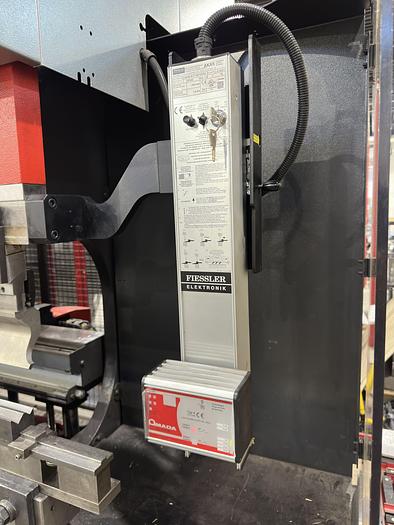

FIESSLER LASER SAFTY LIGHTS
FOOT PEDESTAL CONTROL
