TSCHUDIN, HTG-310, CYLINDRICAL GRINDER- 1986

orCall (905) 669-7507

Specifications

ManufacturerTSCHUDIN
ModelHTG-310
Year1986
Stock Number4620
GRINDING DIAMETER7.87"
GRINDING LENGTH13.38"
CENTER HEIGHT3.93"
POWER CONSUMPTION4.5 KW
WORKHEAD SPINDLE TAPERMORSE 5
WORKHEAD SWIVEL RANGE360°
SPINDLE SPEED RANGE ( STEPLESS )50 - 500 RPM
TAILSTOCK BARREL TAPERMORSE 3
TAILSTOCK BARREL TRAVEL.787"
WHEELHEAD WHEEL DIAMETER ( NOMINAL )13.77"
WHEELHEAD WHEEL WIDTH ( MAX. )1.96"
WHEEL BORE DIAMETER5"
MOTOR POWER3 KW
TABLE SLIDE TRAVEL13.38"
TABLE SLIDE SPEED RANGE0 - 196"/MIN.
TABLE SWIVELLING RANGE+/- 11°
WHEELHEAD SLIDE MANUAL TRAVEL1.77"
WHEELHEAD FAST APPROACH TRAVEL1.49"
NORMAL INFEED TRAVEL ( MAX. )0.047"
FINE INFEED TRAVEL ( MAX. )0.0059"
SPARK OUT TIME RANGE2 - 30 S
HYDRAULIC UNIT TANK CAPACITY145.55 GAL.
APPROX. WEIGHT3,800 LBS.

Equipped With

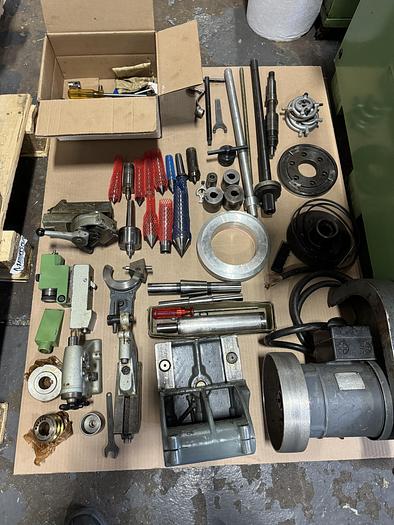

LARGES ASSORTMENT OF TOOLING & ACCESSORIES INCLUDING:

DRESSING ATTACHMENT

ANGLE DRESSING ATTACHMENT

RADIUS DRESSING ATTACHMENT

TWO POINT STEADY

TAILSTOCK

ID GRINDING ATTACHMENT

COOLANT SYSTEM/ W PAPER FILTRATION

FULL SET OF MANUALS


THI MACHINE IS IN EXCELLENT CONDITION
