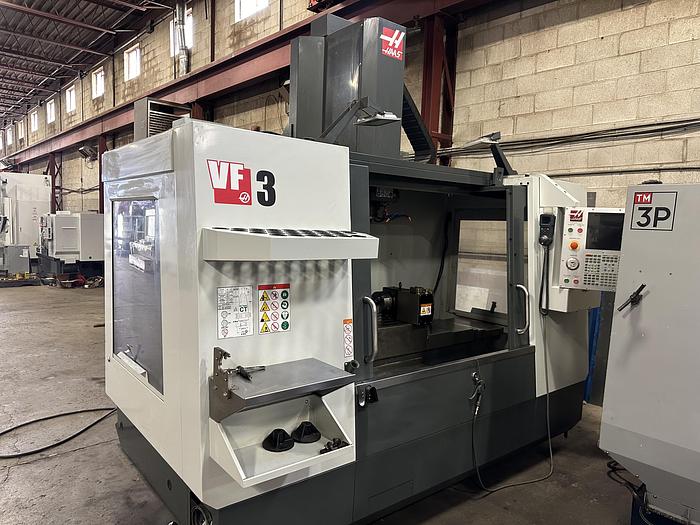

40"X, 20"Y, 25"Z, HAAS, 2019, CNC VERTICAL MACHINING CENTER
orCall (905) 669-7507
Specifications
| Manufacturer | HAAS |
| Model | VF-3 |
| Year | 2019 |
| Stock Number | 4602 |
| X-AXIS TRAVEL | 40" |
| Y-AXIS TRAVEL | 20" |
| Z-AXIS TRAVEL | 25" |
| SPINDLE NOSE TO TABLE - MAX./MIN. | 29.2" / 4.2" |
| SPINDLE MAX. RATING | 30 HP |
| MAX. SPEED | 8100 RPM ( 2 SPEED GEARBOX ) |
| TAPER | CAT 40 |
| TABLE LENGTH X WIDTH | 48" X 18" |
| MAX. WEIGHT ON TABLE | 3,500 LBS. |
| FEEDRATE - RAPIDS - X/Y/Z | 1000 IPM |
| FEEDRATE CUTTING | 650 IPM |
| TOOLCHANGER CAPACITY | 20 |
| MAX. TOOL DIAMETER | 3.5" |
| MAX. TOOL WEIGHT | 12 LBS. |
| APPROX. WEIGHT | 11,720 LBS. |
Equipped With

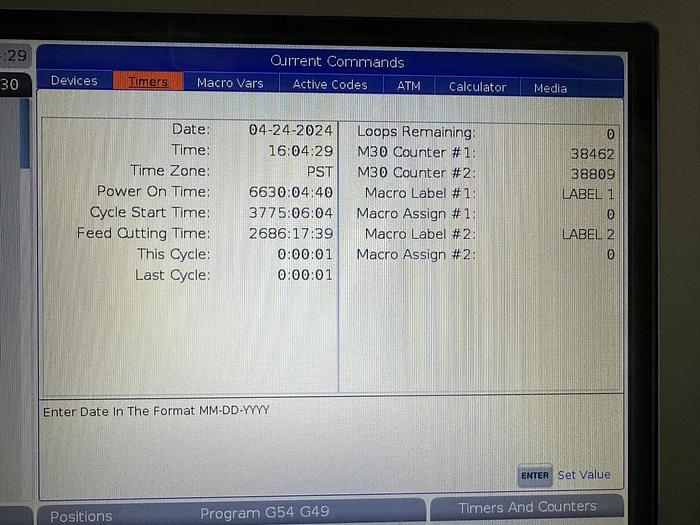

HAAS CNC CONTROL

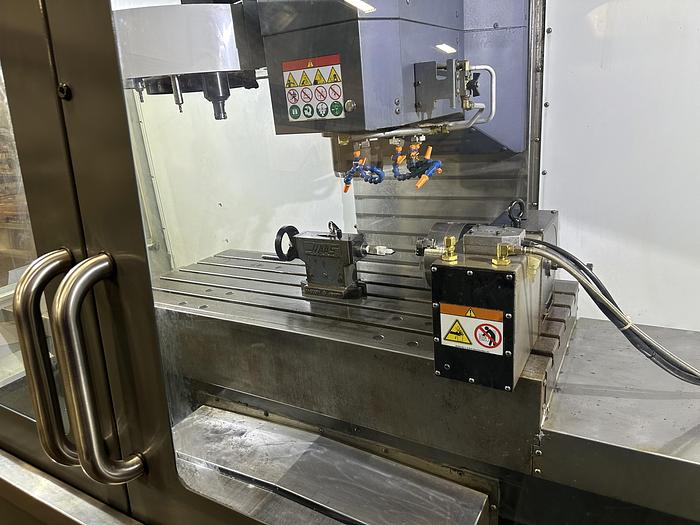

6", 4TH AXIS ROTARY TABLE ( HRT160 ) WITH MANUAL TAILSTOCK
HAAS CONNECT
REMOTE JOG HANDLE
ETHERNET
RIGID TAPPING
55 GAL. COOLANT TANK & PUMP
CHIP AUGER
CHIP STRAINER
