17" X 60" VOEST, ENGINE LATHE
Sold
Specifications
| Manufacturer | VOEST |
| Model | DATR 1.5 |
| Stock Number | 4021 |
| SWING OVER BED | 17" |
| SWING IN GAP | 23" |
| DISTANCE BETWEEN CENTERS | 60" |
| TAILSTOCK TAPER | 4 MT |
| MAIN MOTOR | 5 HP |
| ELECTRICS | 575V/3/60 |
| APPROX. WEIGHT | 3,500 LBS. |
| APPROX. DIMENSIONS | 101" X 40" X 54" |
Equipped With
-3-jaw chuck
-Square toolpost

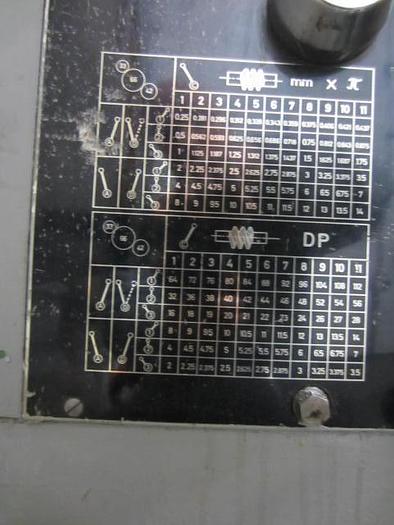

-Inch/metric threading

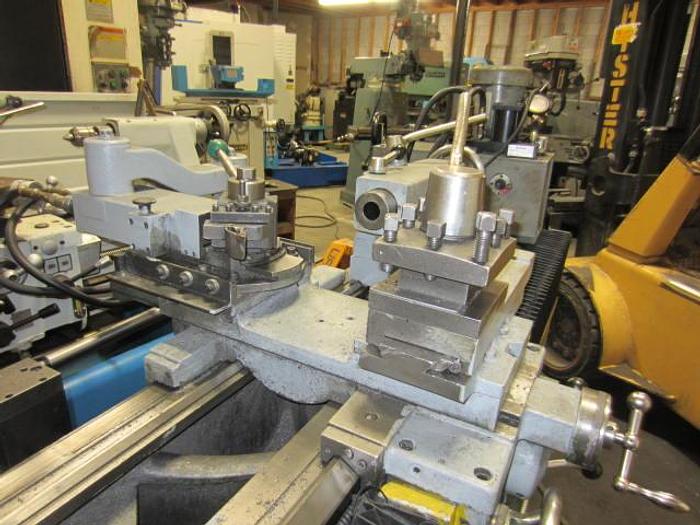

-Mimik U tracing attachment
-Leadscrew cover
