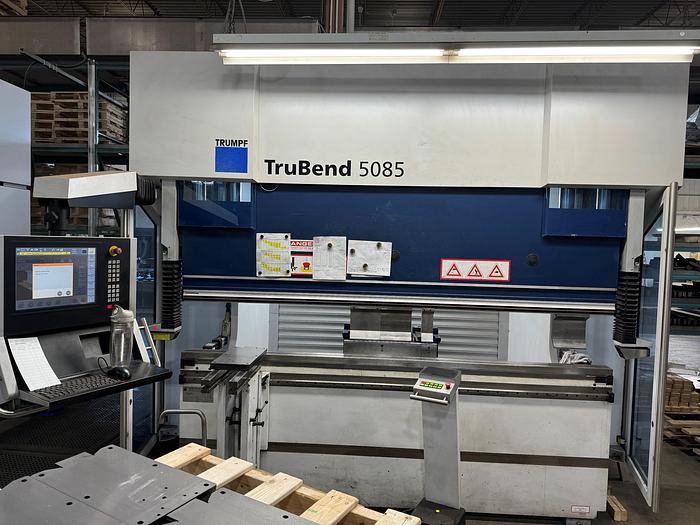

94 TON X 107", TRUMPF, 2010, CNC PRESS BRAKE, MODEL 5085S
Sold
Specifications
| Manufacturer | TRUMPF |
| Model | 5085S |
| Year | 2010 |
| Stock Number | 4554 |
| TONNAGE | 94 TONS |
| OVERALL BENDING LENGTH | 107" |
| DISTANCE BETWEEN FRAMES | 89" |
| STROKE | 17.5" |
| EXPANDED DIE SPACE | 24.2" |
| THROAT DEPTH | 16.5" |
| BED WIDTH | 4.7" |
| Y-AXIS PRESS SPEED | .24 - 24 IPM |
| SPEEDS: Y-AXIS RAPID | 520 IPM |
| X-AXIS SPEED | 2362 IPM |
| RETURN SPEED | 520 IPM |
| R-AXIS SPEED | 780 IPM |
| APPROX. WEIGHT OF MACHINE | 16,975 LBS. |
| APPROX. OVERALL DIMENSIONS | 142" X 68.5" X 112" TALL |
Equipped With

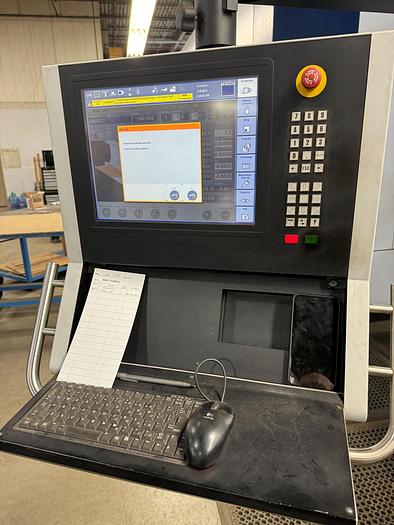

TASC 6000 TOUCH SCREEN CNC CONTROL

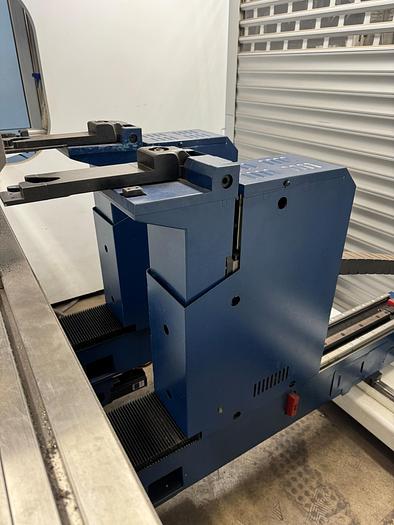

6-AXIS BACKGAUGE - X1, X2 R1 ,R2 , Z1/Z2
LAZERSAFE SAFETY SYSTEM
UPPER HYDRAULIC TOOL CLAMPING
ADDITIONAL 9" OPEN HEIGHT & STROKE
CNC CROWNING
3D VISUAL CONTROL
NETWORKING
BENDGAURD SAFETY DEVICE
FRONT & REAR LIGHTING OF THE MACHINE
LED LIGHTING FOR ACCURATE TOOL POSITIONING

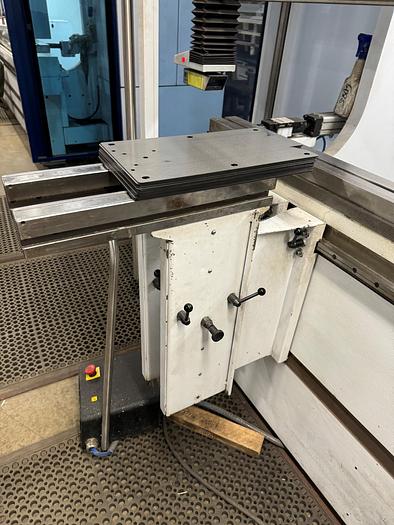

2 UPGRADED FRONT SUPPORTS
THIS MACHINE IS IN EXCELLENT CONDITION AND HAS ONLY BEEN SERVICED BY TRUMPF, MACHINE IS UNDER POWER IN A PLANT- AVAILABILITY APPROX APRIL 2024
