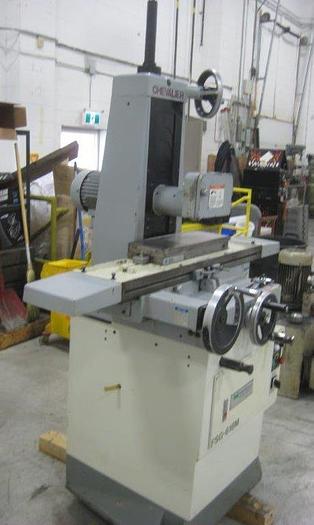

6" X 18", CHEVALIER, FSG-618M, 2004, MANUAL SURFACE GRINDER
Sold
Specifications
| Manufacturer | CHEVALIER |
| Model | FSG-618M |
| Year | 2004 |
| Stock Number | 3871 |
| TABLE SIZE | 5.75" x 18" |
| LONGITUDINAL TRAVEL (X AXIS) | 19" |
| CROSSFEED TRAVEL (Y AXIS) | 7" |
| MAX DISTANCE (TABLE SURFACE-SPINDLE) | 18" |
| MAX GRINDING LENGTH | 18" |
| MAX GRINDING WIDTH | 6" |
| MAX WORKPIECE WEIGHT | 462 LBS |
| SPINDLE MOTOR | 2 HP |
| SPINDLE SPEED | 3370 RPM |
| GRINDING WHEEL DIAMETER, MAX. | 8" |
| GRINDING WHEEL WIDTH | 0.5" |
| GRINDING WHEEL BORE | 1.25" |
| DIMENSIONS (L x W x H) | 53" x 36" x 67" |
| APPROX MACHINE WEIGHT | 1480 LBS |
Equipped With

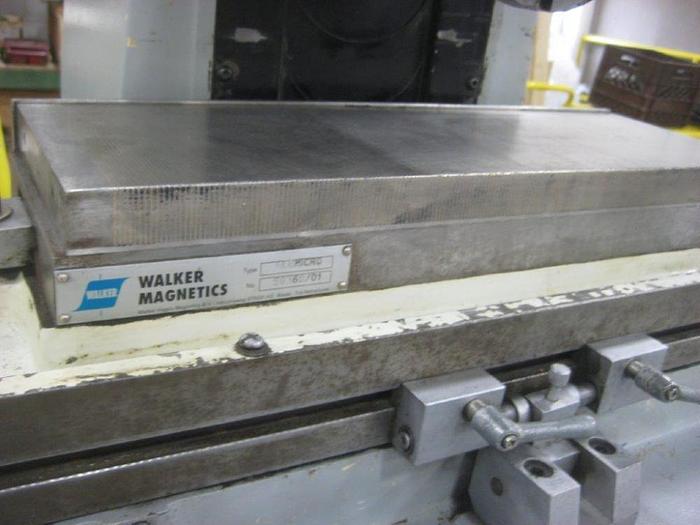

6" x 18" WALKER, FINE POLE PERMANENT MAGNETIC CHUCK
