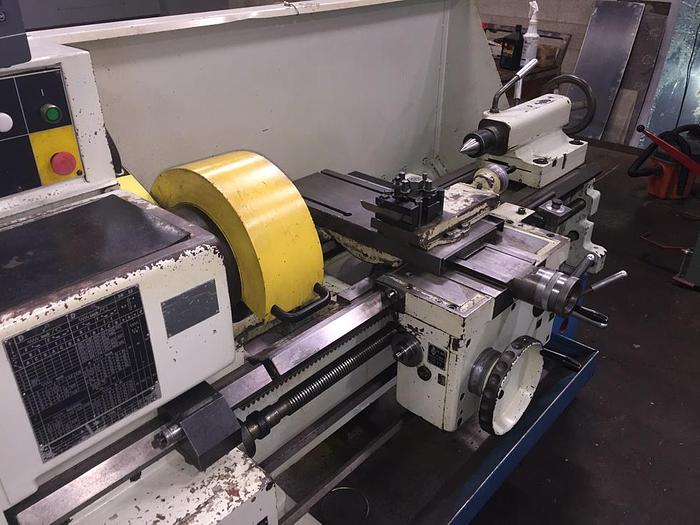

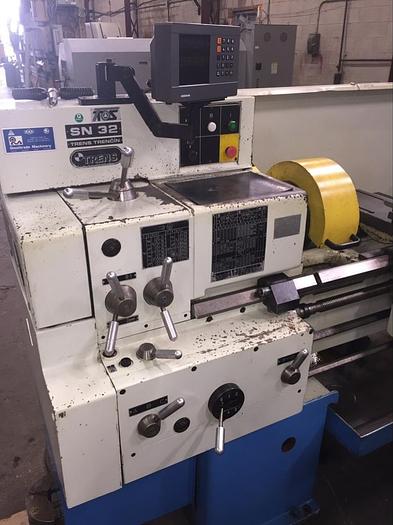

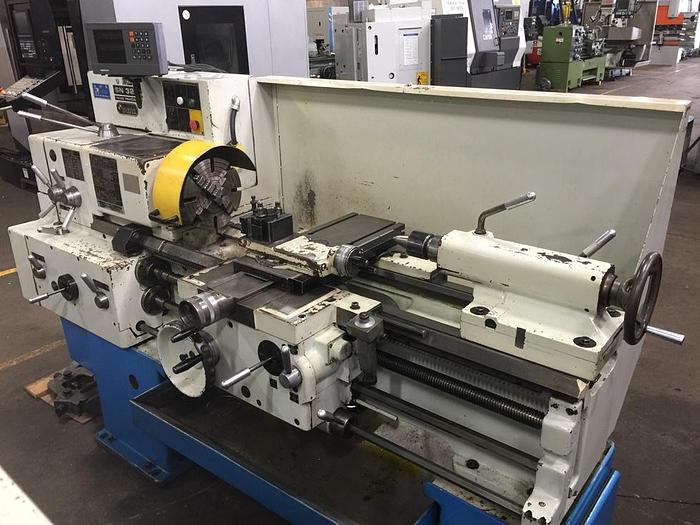

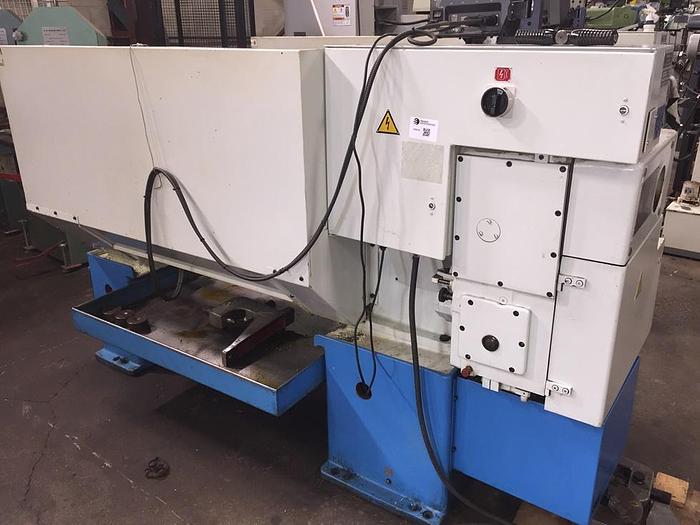

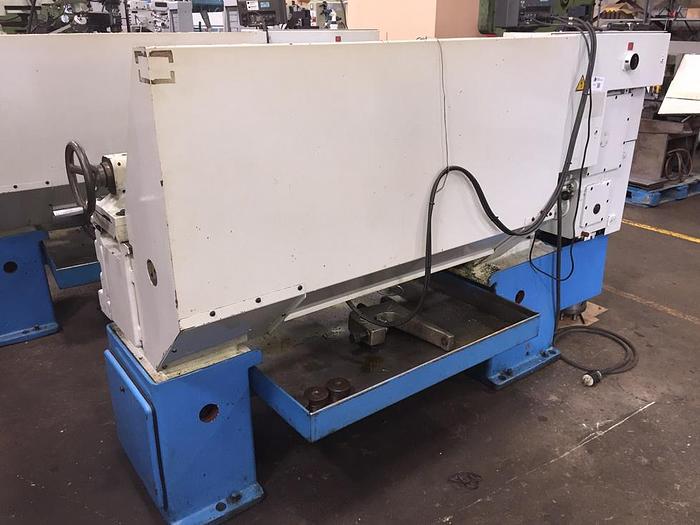

13" X 40", TOS, SN32, TOOLROOM LATHE
Sold
Specifications
| Manufacturer | TOS |
| Model | SN32 |
| Stock Number | 3945 |
| SWING OVER BED | 13.3" |
| SWING OVER CROSS SLIDE | 6.6" |
| SWING IN GAP | 20.5" |
| DISTANCE BETWEEN CENTERS | 40" |
| SPINDLES SPEEDS | 14 - 2500 RPM |
| SPINDLE HOLE | 2" |
| TAPER IN SPINDLE SLEEVE | MORSE 4 |
| CROSS SLIDE TRAVEL | 10.3" |
| TOP SLIDE TRAVEL | 5.5" |
| TAILSTOCK SPINDLE TRAVEL | 7" |
| APPROX. WEIGHT | 3,400 LBS. |
| OVERALL APPROX. DIMENSIONS | 96" L-R X 60" F-B X 42" TALL |
Equipped With

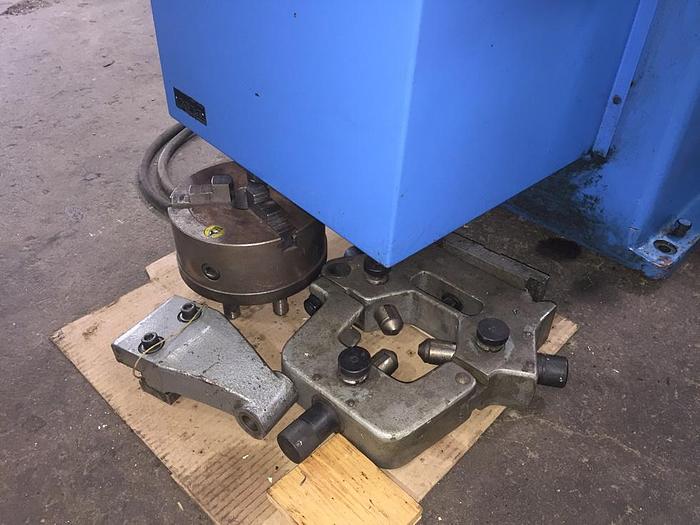

2-AXIS HEIDENHAIN DIGITAL READOUT 8" - 3 JAW CHUCK 4-WAY QUICK-CHANGE TOOL-POST STEADY REST FOLLOW REST
