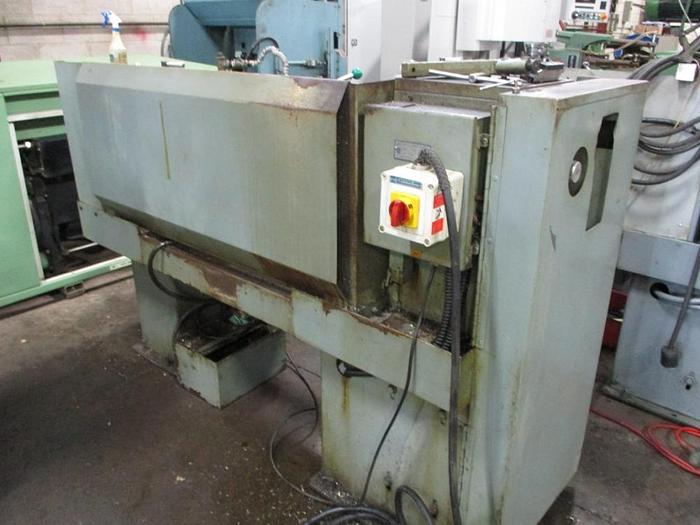

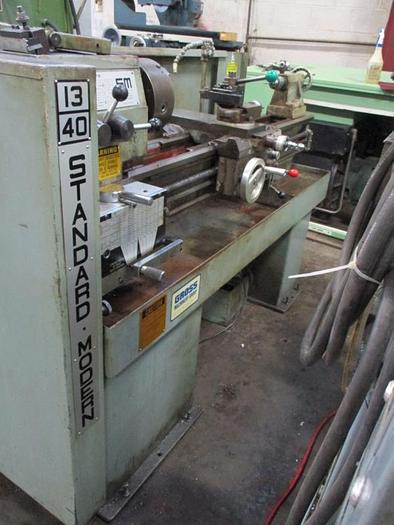

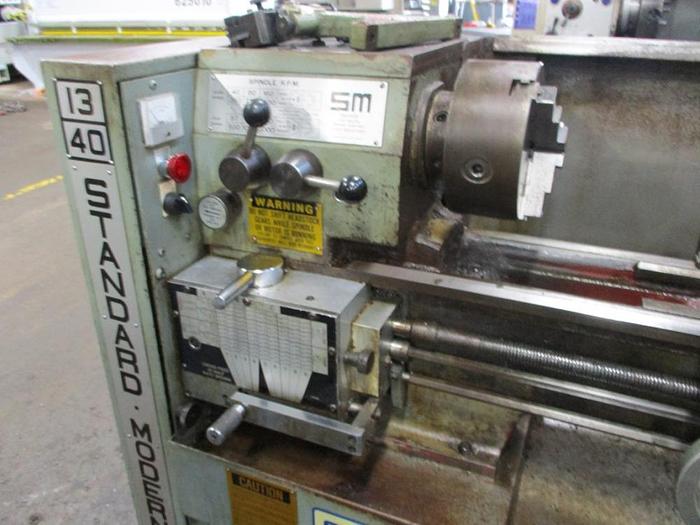

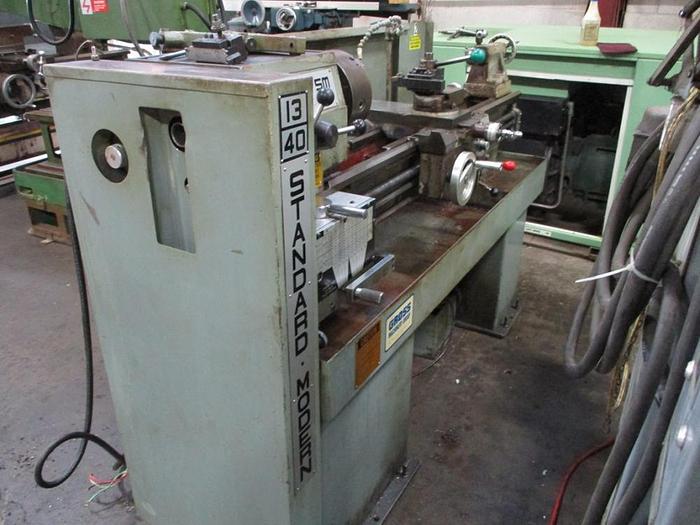

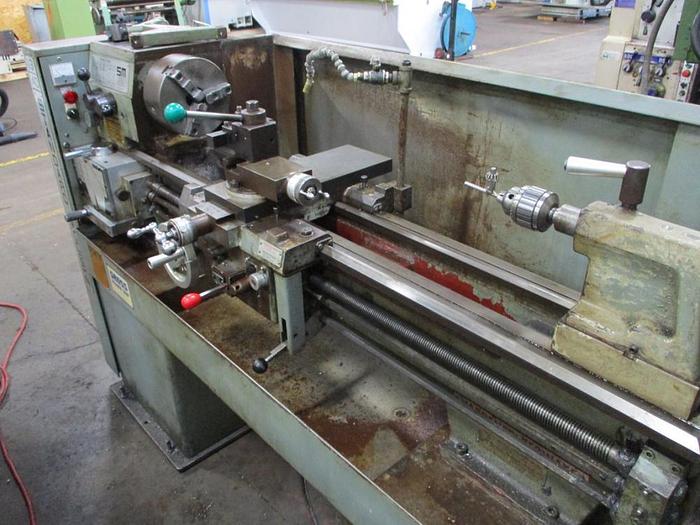

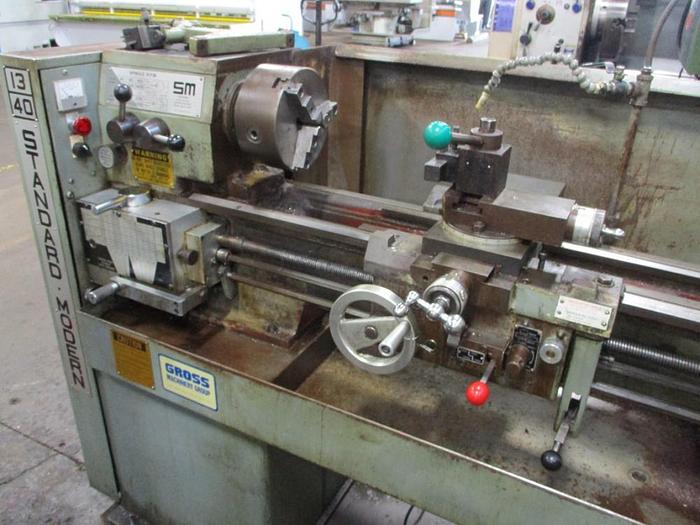

STANDARD MODERN 1340
Sold
Specifications
| Manufacturer | STANDARD MODERN |
| Model | 1340 |
| Stock Number | 3906 |
| SWING OVER BED | 13" |
| SWING OVER CROSS SLIDE | 7-3/4" |
| DISTANCE BETWEEN CENTERS | 40" |
| MOTOR | 3 HP |
| SPINDLE SPEED RANGE | 40 - 2000 RPM |
| SPINDLE NOSE | D1-4" CAMLOCK |
| SPINDLE BORE | 1-3/8" |
| TAPER HOLE IN SPINDLE CENTER | NO. 5 MORSE |
| SPINDLE CENTER | NO. 3 MORSE |
| CROSS SLIDE TRAVEL | 7" |
| COMPOUND SLIDE TRAVEL | 3-1/4" |
| TOOLHOLDER SIZE OF SHANK | 1/2" - 1-1/8" |
| WIDTH OF BED | 8-1/2" |
| APROX. SHIPPING WEIGHT | 1,800 LBS. |
Equipped With
INCH / METRIC THREADING
FOLLOW REST
