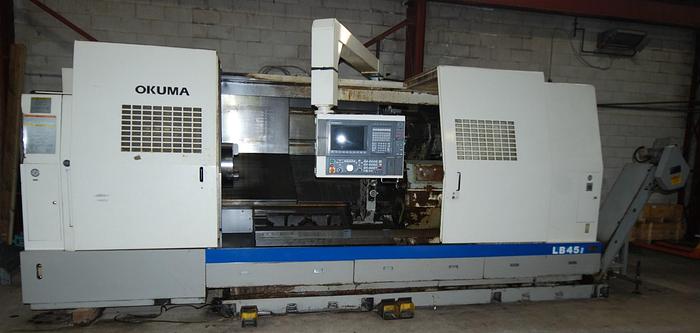

OKUMA, LB45II, CNC LATHE

orCall (905) 669-7507

Specifications

ManufacturerOKUMA
ModelLB45II
Stock Number3978
SWING OVER BED35.43
SWING OVER THE CROSS-SLIDE21.7"
MAX. TURNING DIAMETER25.98"
DISTANCE BETWEEN CENTERS81.10"
CROSS-SLIDES TRAVEL X-AXIS17.32"
LONGITUDINAL TRAVEL Z-AXIS81.10"
RAPID TRAVERS SPPED X/Z AXIS590 / 787 IPM
MAX. RECOMMENDED ALLOWABLE WEIGHT880 LBS. CHUCKING WORK
SPINDLE DIAMETER AT FRONT BEARING5.90"
SPINDLE BORE4.33"
SPINDL SPEEDS12 - 2800 RPM
SPINDLE MOTOR50 HP

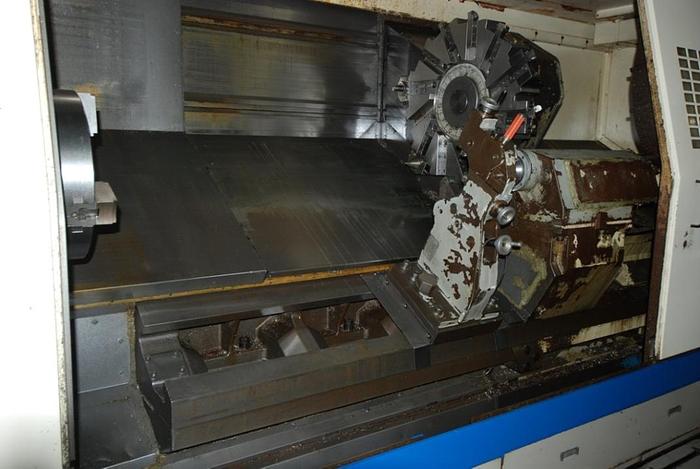

TURRET12 STATION
TAILSTOCK QUILL DIAMETER5.11"
QUILL TAPER HOLE W/BUILTIN BEARINGSMT. NO. 5
QUILL TRAVEL6.69"
FLOOR SPACE REQUIREMENTS114" X 226"
TOTAL HEIGHT102"
APPROX. WEIGHT31,900 LBS

Equipped With

CUTTING HOURS: 15,268 HOURS OSP7000L WITH COLOR IGF CNC CONTROL TAILSTOCK 18" 3-JAW CHUCK (2) SMALL & LARGE STEADY REST CHIP CONVEYOR COOLANT SYSTEM LARGE ASSORTMENT OF TOOL HOLDERS, JAWS & CUTTING TOOLS
