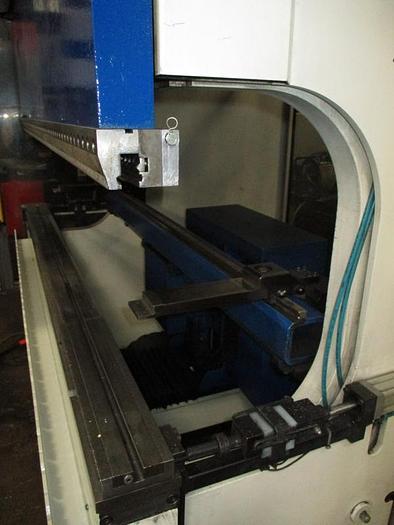

93 TON X 80", TRUMPF, V85, CNC HYDRAULIC PRESS BRAKE
Sold
Specifications
| Manufacturer | TRUMPF |
| Model | V85 |
| Year | 1998 |
| Stock Number | 3937 |
| MAX. PRESSURE FORCE | 93 TON ( 85 METRIC ) |
| OVERALL BENDING LENGTH | 80" |
| DISTANCE BETWEEN FRAMES | 68.8" |
| MAX. STROKE | 8.4" |
| OPEN HEIGHT | 15.1" |
| THROAT DEPTH | 16.1" |
| FAST APPROACH SPEED | 200 MM/S |
| RETURN SPEED | 135 MM/S |
| APPROX. WEIGHT | 17,000 LBS |
Equipped With

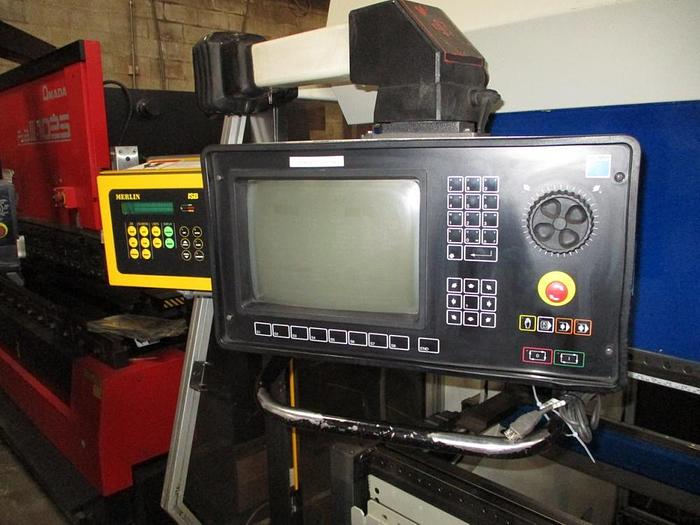

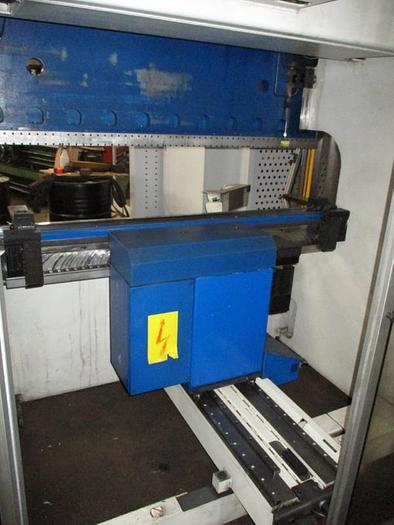

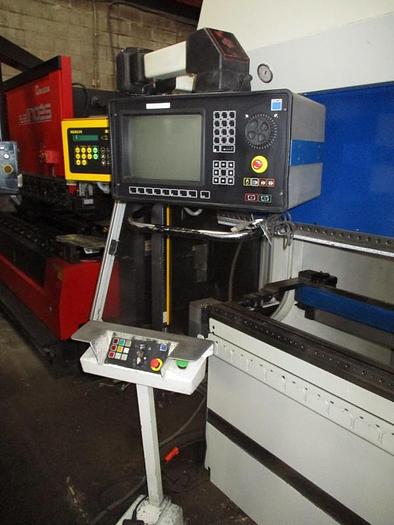

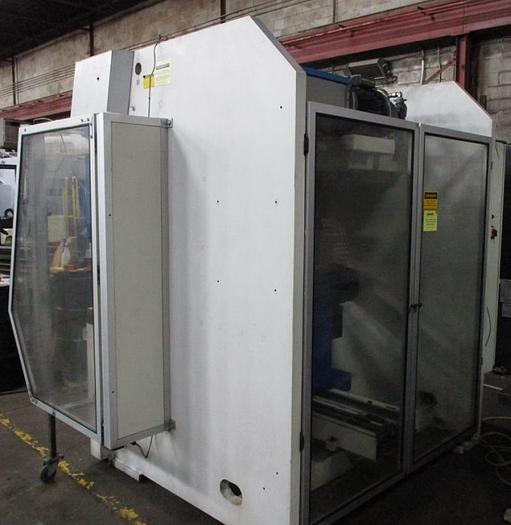

DELEM CNC CONTROL, 4-AXIS BACKGAUGE I-AXIS ( MOVING BED ) HYDRAULIC CLAMPING FOR TOP PUNCH SAFETY LIGHT CURTAINS SIDE & REAR GUARDING FOOT PEDESTAL CONTROL
