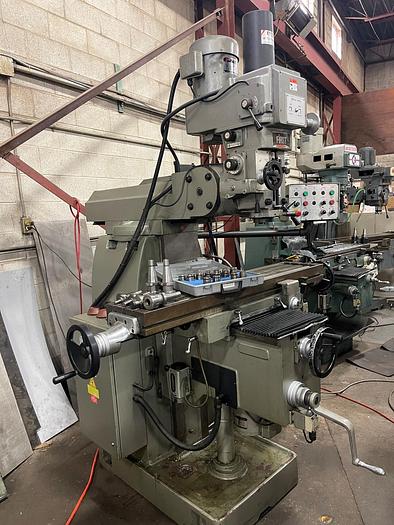

10" X 51", FIRST, VERTICAL MILLING MACHINE
Sold
Specifications
| Manufacturer | FIRST |
| Model | LC20-VSG |
| Stock Number | 4525 |
| TABLE SIZE | 10" X 50" |
| TRAVEL X AXIS | 31" |
| TRAVEL Y AXIS | 16.5" |
| TRAVEL Z AXIS (KNEE) | 16.5" |
| FEED RATE X AXIS | 0.086 - 27"/MIN |
| RAPID X AXIS | 82.6"/ MIN |
| SPINDLE SPEEDS | 60 - 4500 RPM |
| SPINDLE TAPER | #40 |
| SPINDLE TRAVEL | 5" |
| SPINDLE MOTOR | 5 HP |
| ELECTRICS | 575V/3PH/60CY |
| APPROX. WEIGHT | 3,400 LBS. |
Equipped With
3-AXIS HEIDENHAIN DIGITAL READOUT
POWER DRAWBAR

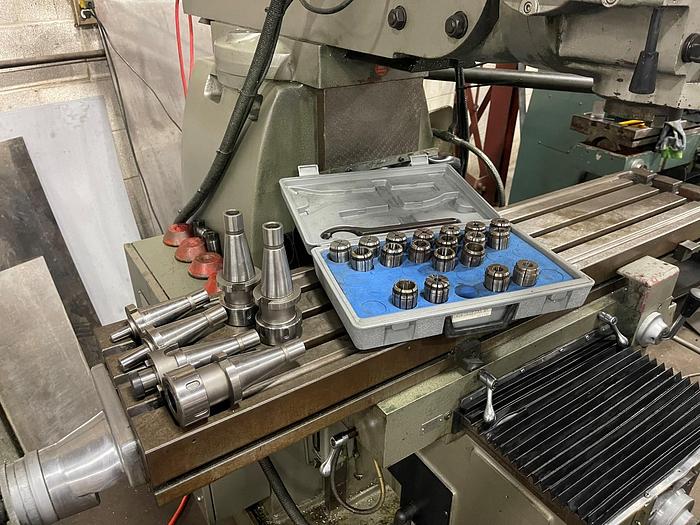

ASSORTED TOOL HOLDERS
COLLET SET POWERFEED ON X-AXIS RAPID FEED ON Z-AXIS PENDANT CONTROL ONE SHOT LUBRICATION
