10" X 54" FIRST, 2014, VERTICAL MILLING MACHINE
Sold
Specifications
| Manufacturer | FIRST |
| Model | LC-185VS-B |
| Year | 2014 |
| Stock Number | 4518 |
| WORKING SURFACE | 10" X 50" |
| MAX. TABLE LOAD | 882 LBS. |
| LONGITUDINAL TRAVEL | 35" |
| CROSS TRAVEL | 16.75" |
| VERTICAL TRAVEL (KNEE) | 15.3" |
| VERTICAL FEEDS (KNEE) | RAPID |
| SPINDLE SPEEDS | 60 - 4500 RPM, VARIABLE |
| SPINDLE NOSE TO COLUMN SURFACE | 9.6" - 28.1" |
| SPINDLE TAPER | R8 |
| QUILL TRAVEL | 5" |
| OVERARM TRAVEL | 18.5" |
| HEAD SWIVELS | R&L 90° / F&B 45° |
| SPINDLE MOTOR | 3 HP |
| VERTICAL FEEDS | 1/2 HP |
| COOLANT PUMP | 1/8 HP |
| ELECTRICS | 575V/3/60 |
| APPROX. WEIGHT | 2,750 LBS. |
Equipped With

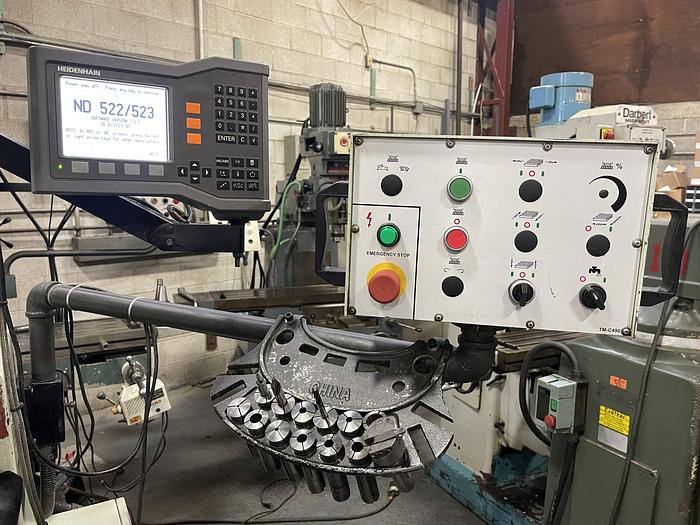

HEIDENHAIN 2-AXIS DIGITAL READOUT PENDANT CONTROL ALIGN POWER DRAWBAR POWERFEED X-AXIS POWERED RAPID FEED Z-AXIS (KNEE)
ASSORTED COLLETS COOLANT SYSTEM ONE SHOT LUBRICATION SYSTEM
