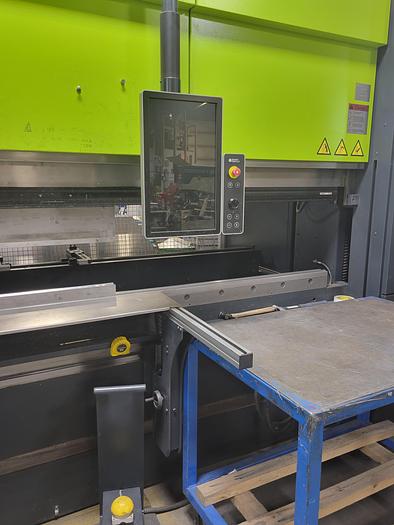

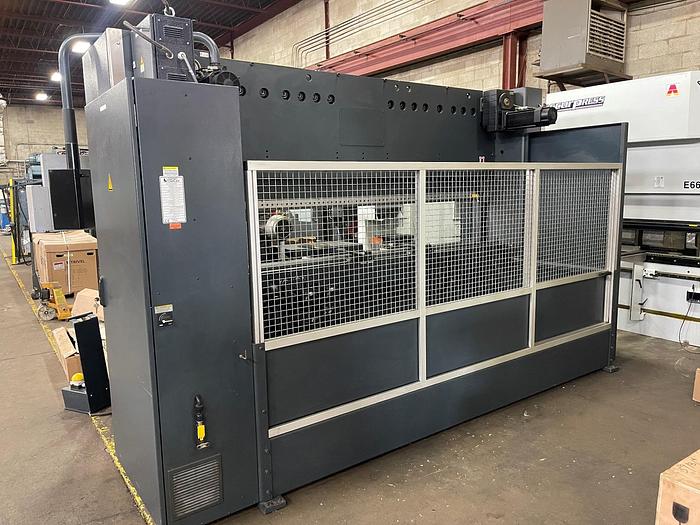

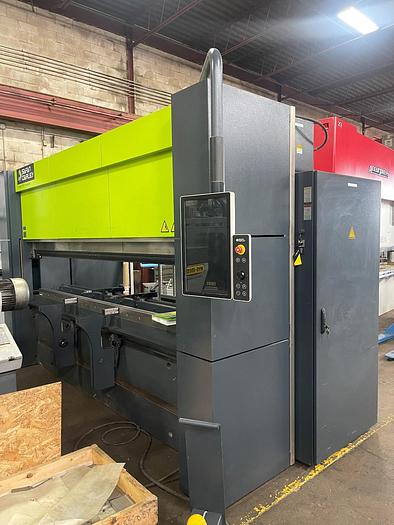

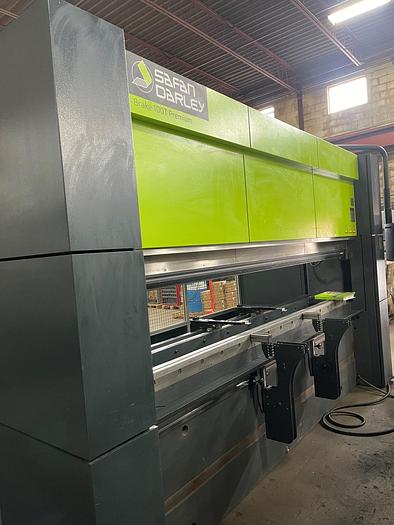

110 TON X 10' SAFAN DARLEY PREMIUM SERIES ELECTRIC PRESS BRAKE NEW IN 2019
Sold
Specifications
| Manufacturer | SAFAN DARLEY |
| Model | E100-3100 |
| Year | 2019 |
| Stock Number | 4515 |
| AGE | 2019 |
| TONNAGE | 110 TON |
| OVERALL BENDING LENGTH | 122.04" |
| DISTANCE BETWEEN FRAMES | 120.4" |
| STROKE | 11.8" |
| OPEN HEIGHT | 23.23" |
| CLOSING SPEED | 2.95" / SEC |
| MOTOR HP | 15 HP |
| WEIGHT | 16 500 LBS |
| BENDING SPEED UPPER BEAM W/USE OF SAFETY LIGHT GUARD | 0.393"/SEC. |
| APPROACH SPEED UPPER BEAM | 2.952"/SEC. |
| BENDING SPEED UPPER BEAM | .393"/SEC. |
| RETURN SPEED UPPER BEAM | 2.952"/SEC. |
| MAX. STROKE BACK GAUGE | 21.65" |
| MAX. SPEED BACK GAUGE | 13.78"/SEC. |
Equipped With

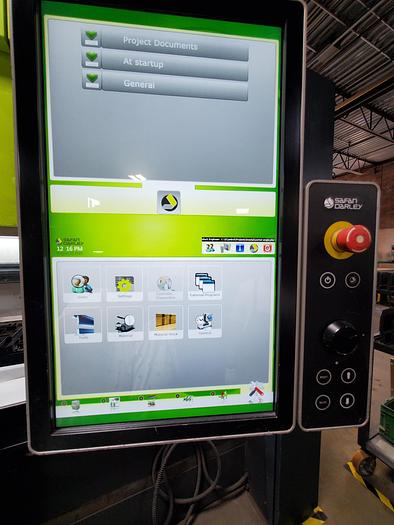

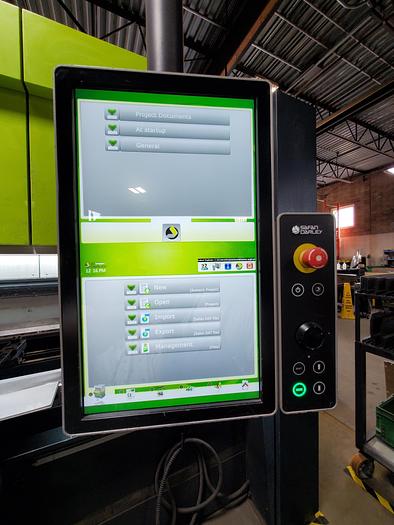

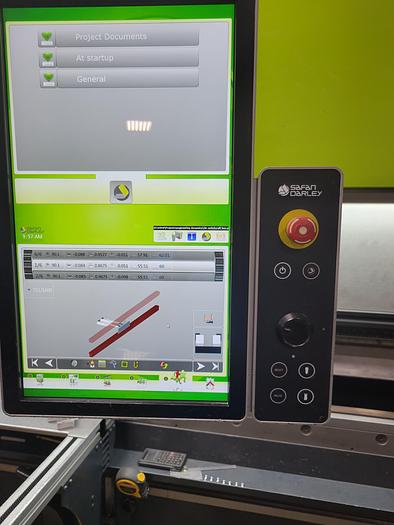

EC-20 2D GRAPHIC TOUCH SCREEN CONTROL (21")

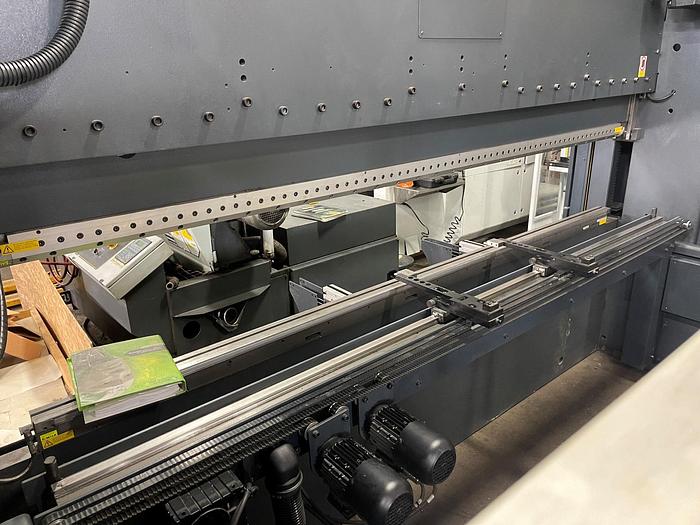

4 AXIS CNC BACK GAUGE (X + R +Z1+Z2)
WILA NEW STANDARD HYDRAULIC UPPER CLAMPING
WILA HYDRAULIC LOWER TABLE CLAMPING
SICK C4000 SAFETY LIGHT CURTAINS
STL-SMART TOOL LOCATING-LED FRONT WORK AREA
FRONT SHEET SUPPORTS, HANDWHEEL ADJUSTED

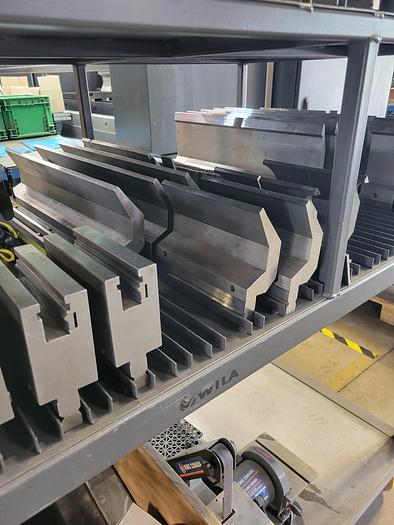

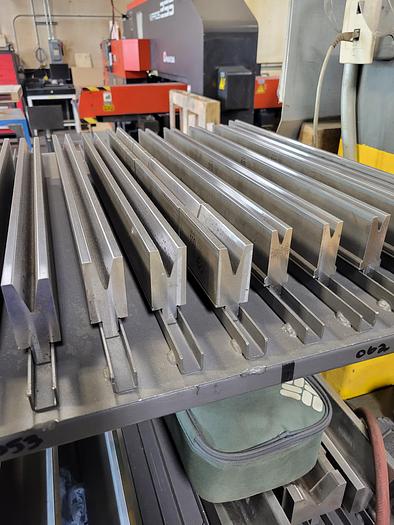

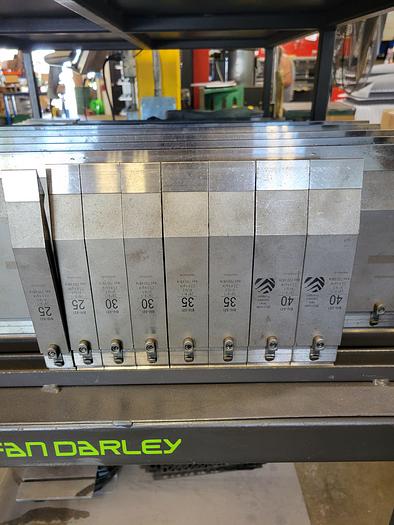

LARGE ASSORTMENT OF WILA NEW STANDARD TOOLING (APPROX 45K US NEW)
THIS MACHINE IS IN MINT CONDITION WITH VERY LITTLE USE.
