50"X, 26"Y, 25"Z, HAAS, VF-5/40, 2021, 5-AXIS CNC VERTICAL MACHINING CENTER
Sold
Specifications
| Manufacturer | HAAS |
| Model | VF-5/40 |
| Year | 2021 |
| Stock Number | 4471 |
| X-AXIS TRAVEL | 50" |
| Y-AXIS TRAVEL | 26" |
| Z-AXIS TRAVEL | 25" |
| TABLE AREA | 54" X 24" |
| MAX WEIGHT ON WORKTABLE | 4000 LBS. |
| SPINDLE NOSE TO TABLE (MAX.) | 29.2" |
| SPINDLE NOSE TO TABLE (MIN.) | 4.2" |
| MAX. HP RATING | 30 HP |
| MAX. SPEED | 8100 |
| MAX. TORQUE | 90 FT-LBF @ 2000 RPM |
| TAPER | CAT 40 |
| MAX. CUTTING FEEDRATE | 500 IPM |
| RAPIDS ON X, Y, Z | 710 IPM |
| MAX. TOOL WEIGHT | 12 LBS. |
| MAX. TOOL DIAMETER | 3.5" |
| TOOL TO TOOL (AVG) | 4.2 SEC. |
| COOLANT CAPACITY | 95 GAL. |
| AIR REQUIREMENTS | 4 SCFM @ 100 PSI |
| AIR PRESSURE MIN. | 80 PSI |
| INLINE AIR HOSE | 3/8" |
| APPROX. WEIGHT OF MACHINE | 12,700 LBS. |
Equipped With

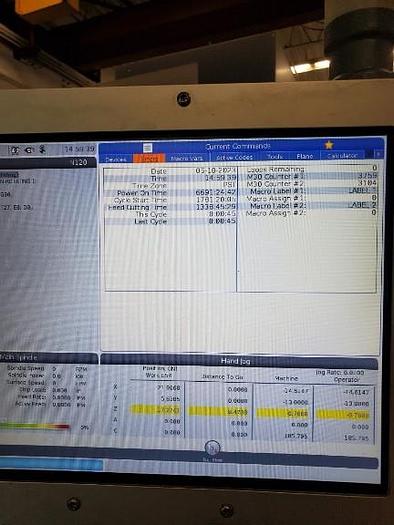

LOW HOURS: 1338 FEED CUTTING TIME
4TH & 5TH AXIS DRIVE AND WIRING

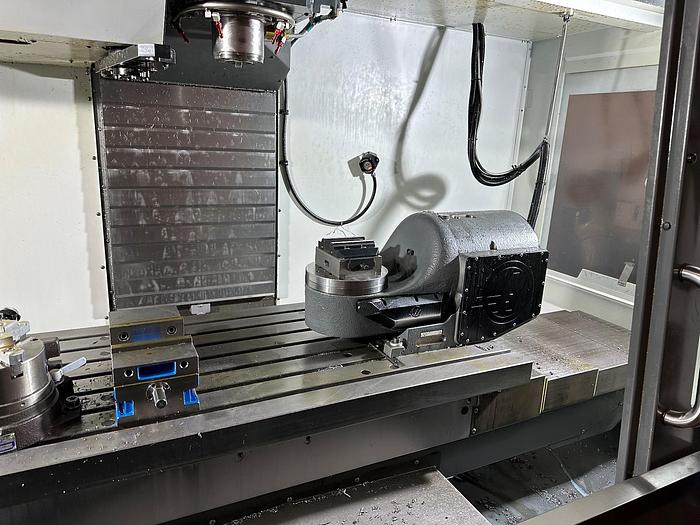

TRT-210 - 5-AXIS ROTARY UNIT
30 + 1 SIDE MOUNT TOOLCHANGER
HIGH SPEED MACHINING

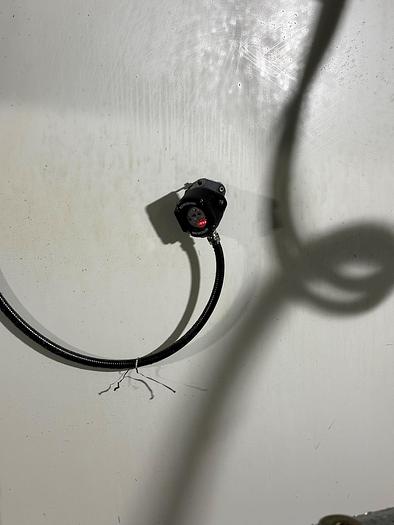

WIRELESS PROBING ( PART & TOOL )
THRU SPINDLE COOLANT

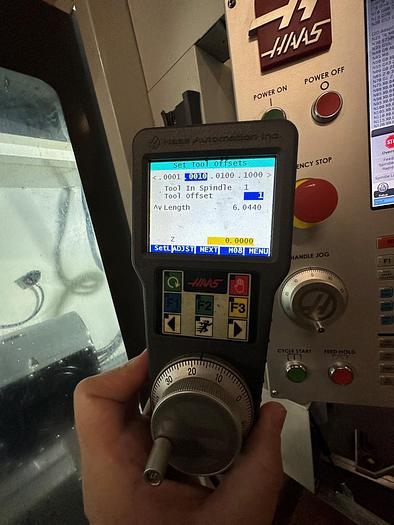

REMOTE JOG HANDLE WITH TOUCHSCREEN

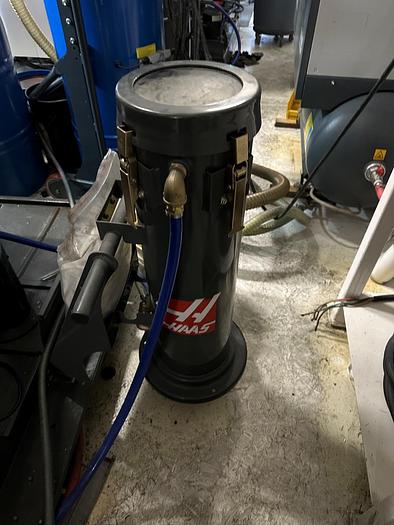

AUXILIARY COOLANT FILTER
DYNAMIC WORK OFFSETS & TOOL CENTER POINT
CHIP AUGER
THIS MACHINE IS IN IMMACULATE CONDITION WITH ONLY 1350 CUTTING HOURS ON IT. INSTALLED AUGUST 2021
