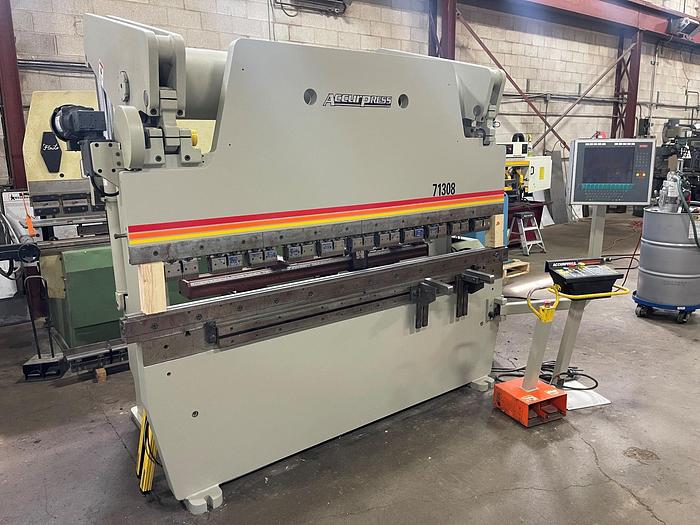

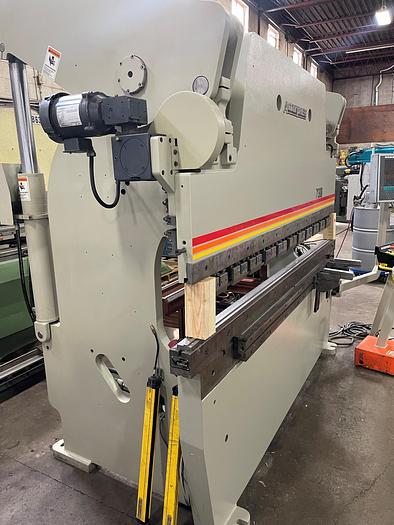

130 TON X 8', ACCURPRESS, 2011, CNC HYDRAULIC PRESS BRAKE
Sold
Specifications
| Manufacturer | ACCURPRESS |
| Model | 71308 |
| Year | 2011 |
| Stock Number | 4453 |
| TONS | 130 |
| LENGTH OF BED | 8' |
| DISTANCE BETWEEN FRAMES | 76" |
| LENGTH OF RAM STROKE | 8" |
| OPEN HEIGHT ( EXTRA HEIGHT OPTION ) | 20" ( STANDARD IS 14" ) |
| CLOSED HEIGHT | 6" |
| THROAT DEPTH | 10" |
| FAST APPROACH SPEED | 115 IPM |
| SLOW BEND SPEED | 24 IPM |
| FAST RETURN SPEED | 200 IPM |
| MOTOR | 10 HP |
| ELECTRICS | 575V/3/60 |
| APPROX. WEIGHT | 13,000 LBS. |
Equipped With
20" OPEN HEIGHT OPTION ( STANDARD IS 14" )

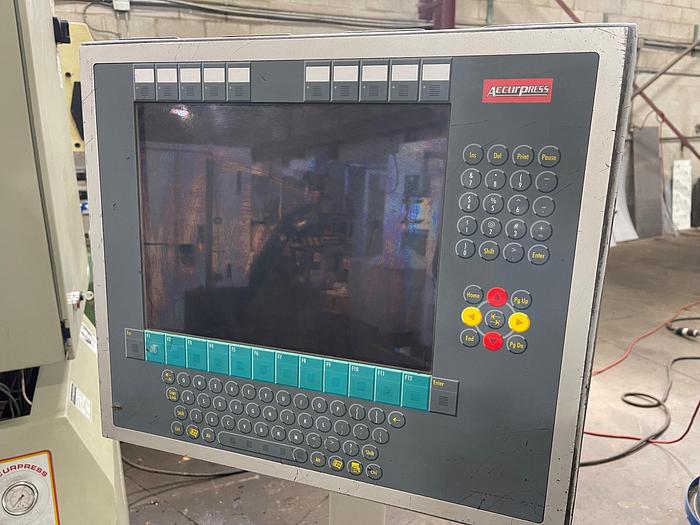

ETS3000 - 3-AXIS CNC CONTROL, X, Y, R

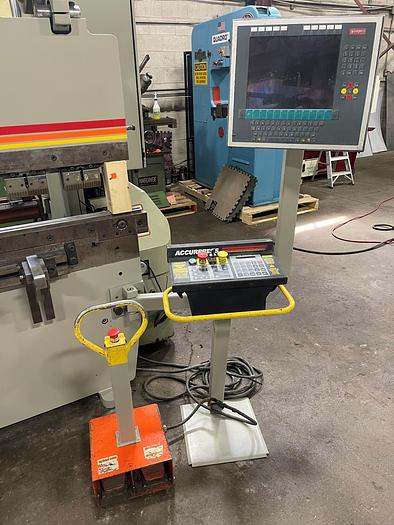

ETS PEDESTAL CONTROL UNIT
FOOT PEDESTAL CONTROL
WILSON EXPRESS QUICK CLAMPS
WILA MANUAL CROWNING
SAFETY LIGHT CURTAINS
SIDE & REAR SAFETY GAURDING
POWER RAM TILT
