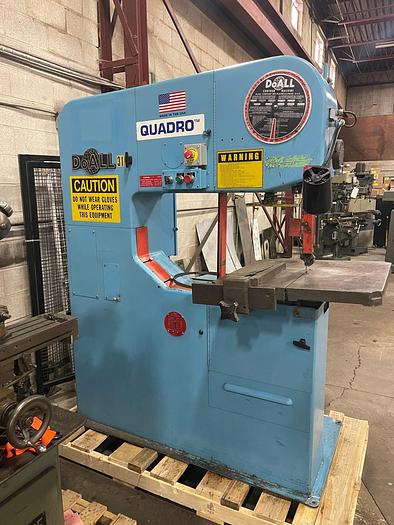

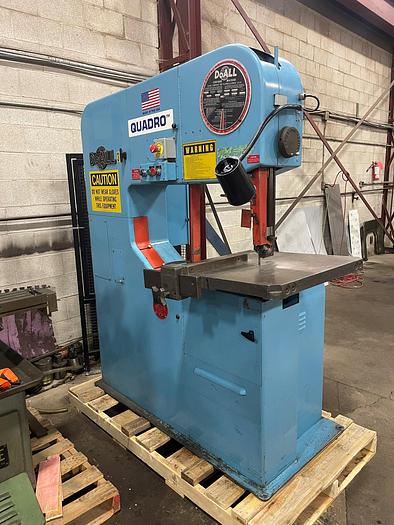

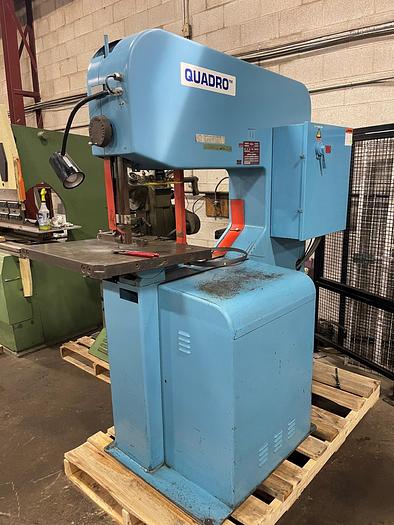

13" x 36" DOALL, VERTICAL BANDSAW
Sold
Specifications
| Manufacturer | DOALL |
| Model | 3613-1 |
| Stock Number | 4447 |
| THROAT DEPTH - BAND TO COLUMN | 36" |
| MAX. WORKHEIGHT | 13" |
| BAND WIDTH CAPACITY | 1/16" TO 1" |
| SAW BAND LENGTH | 199" |
| MOTOR | 5 HP |
| VARIABLE BAND SPEED | 50 - 5200 FPM |
| WORKTABLE AREA | 26" X 26" |
| ELECTRICS | 575V/3/60 |
| APPROX. MACHINE WEIGHT | 1,550 LBS. |
Equipped With
TILTING WORKTABLE 45 DEG. NEGATIVE, 10 DEG POSITIVE

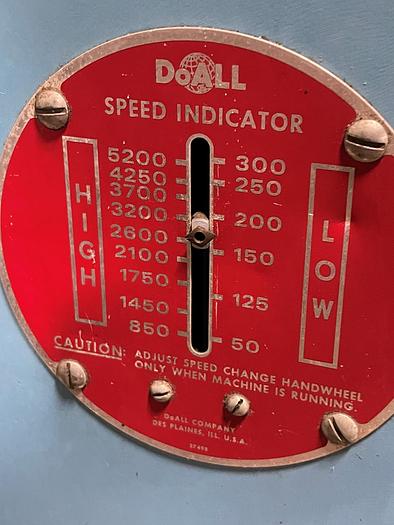

BAND SPEED INDICATOR READING IN FPM
BAND TENSION INDICATOR
WORK LIGHT
POST ELEVATING HANDWHEEL
REMOVABLE CHIP DRAWER
