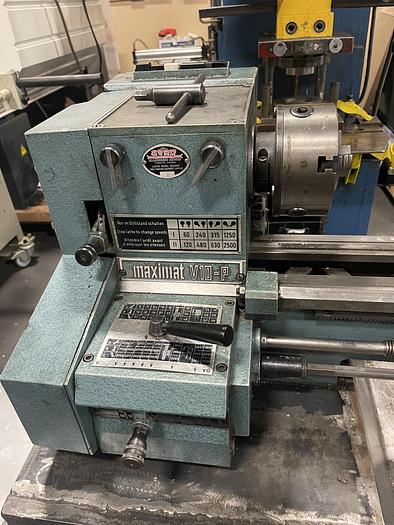

10" X 25", EMCO, BENCH TOP LATHE/MILL CENTER
Sold
Specifications
| Manufacturer | EMCO |
| Model | V10-P |
| Stock Number | 4442 |
| SWING OVER BED | 10" |
| DISTANCE BETWEEN CENTERS | 25.59" |
| CENTER HEIGHT | 5" |
| SWING OVER CROSS SLIDE | 5.7" |
| SPINDLE SPEEDS | 60 - 2500 RPM ( 8 RANGES ) |
| HOLE THRU SPINDLE | .787" |
| MORSE TAPER IN TAILSTOCK | NO.2 |
| ELECTRICS | 120/1/60 |
| APPROX. WEIGHT | 300 LBS. |
| MAX. HEIGHT BETWEEN SUPPORT TABLE & VERTICAL SPINDLE | 12" |
| DISTANCE CENTER OF SPINDLE TO COLUMN | 5.7" |
| MORSE TAPER | NO. 2 |
| STROKE OF QUILL | 1.57" |
| VERTICAL SPINDLE SPEEDS | 420, 770, 940, 1740 RPM |
Equipped With
ASSORTED TOOLING & ACCESSORIES
