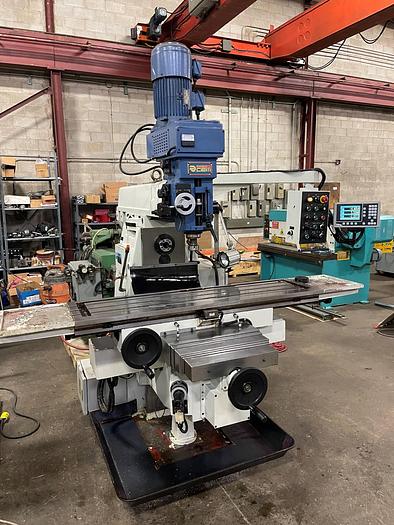

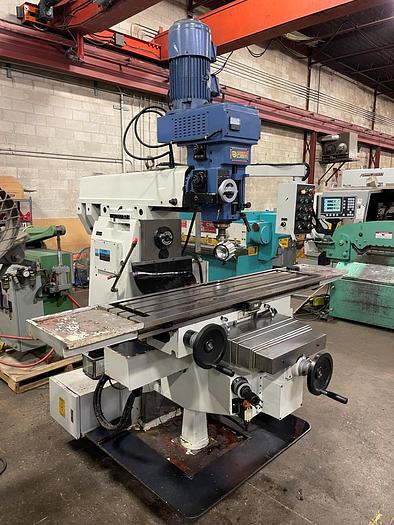

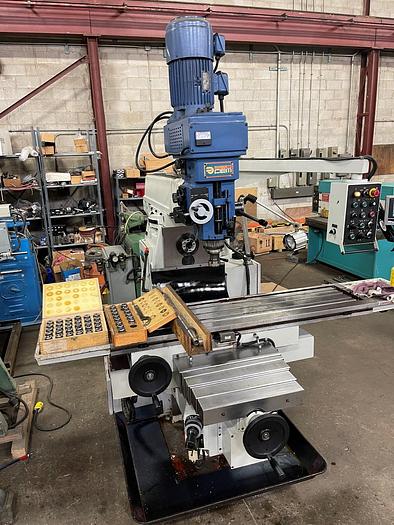

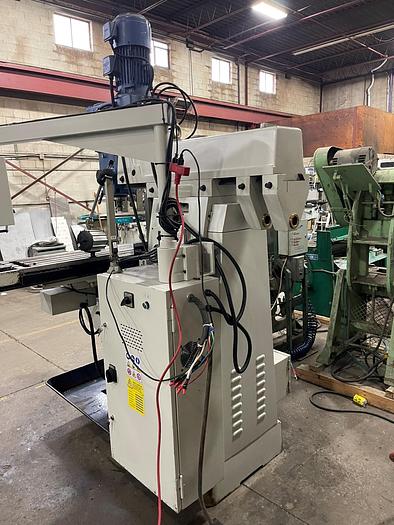

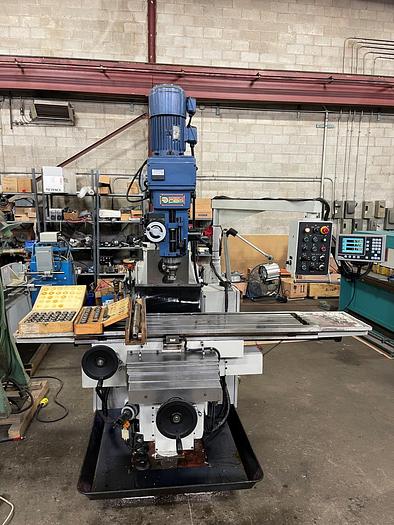

14-1/2" X 58", PHOEBUS, 2011, VERTICAL & HORIZONTAL MILLING MACHINE
Sold
Specifications
| Manufacturer | PHOEBUS |
| Model | PBM-GEVS500A |
| Year | 2011 |
| Stock Number | 4429 |
| TABLE AREA | 14-1/2" X 58" |
| X-AXIS TRAVEL | 36.2" |
| Y-AXIS TRAVEL | 20.4" |
| Z-AXIS TRAVEL | 17.3" |
| SPINDLE TAPER | #40 |
| SPINDLE SPEEDS - VERTICAL | 60 - 3600 RPM - VARIABLE ELECTRIC |
| SPINDLE NOSE TO TABLE | 3.3" - 19.9" |
| SPINDLE SPEED - HORIZONTAL | 65 - 1500 RPM |
| HORIZONTAL SPINDLE TAPER | #40 |
| VERTICAL SPINDLE HP | 5 HP |
| HORIZONTAL SPINDLE HP | 5 HP |
| FEED X, Y AXIS MOTORS | AC SERVO 750 W |
| FEED Z-AXIS MOTOR | 1 HP |
| APPROX. DIMENSIONS | 81.5" X 75" X 98" TALL |
| APPROX. WEIGHT | 6,000 LBS. |
Equipped With
3-AXIS FAGOR DIGITAL READOUT
PENDANT CONTROL
JOYSTICK FOR X, Y, Z
ELECTRONIC VARIABLE SPEED CONTROL
COOLANT SYSTEM
AUTOMATIC LUBRICATION
SET OF COLLETS
ARBOR SUPPORTS AND SPINDLE
WORK LIGHT
