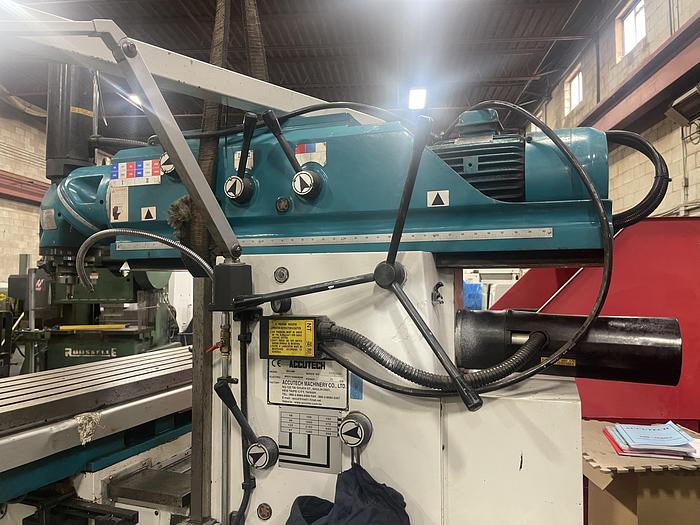

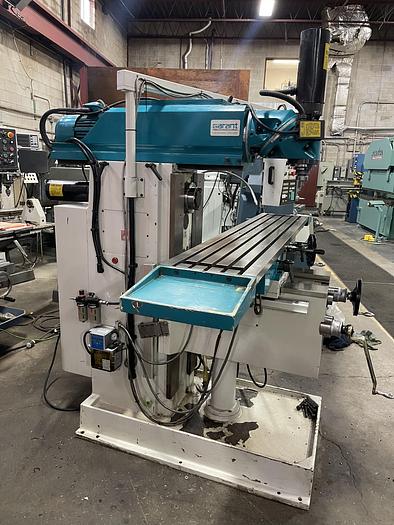

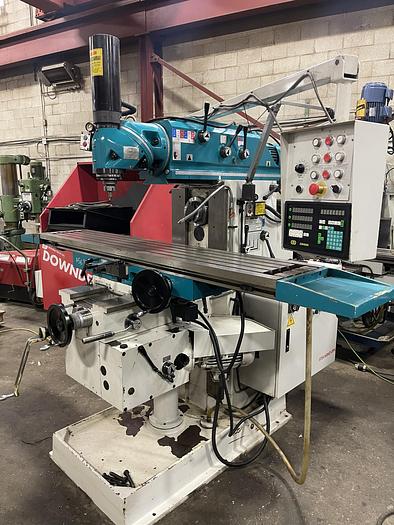

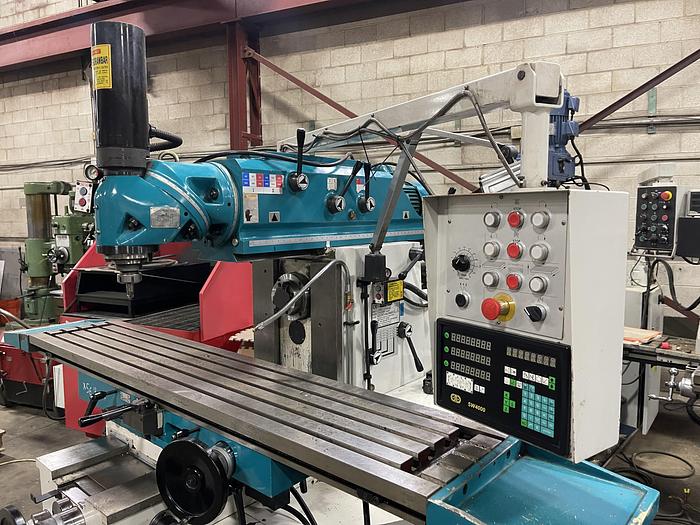

14” X 72-3/4”, ACCUTEC, 2017, MODEL 2500-UM, VERTICAL/HORIZONTAL MILLING MACHINE
Sold
Specifications
| Manufacturer | ACCUTEC |
| Model | 2500-UM |
| Year | 2017 |
| Stock Number | 4400 |
| TABLE AREA | 14” X 72-3/4” |
| X-AXIS TRAVEL | 56.4” |
| Y-AXIS TRAVEL | 15.75” |
| Z-AXIS TRAVEL | 20” |
| SPINDLE SPEED - VERTICAL | 45 - 1960 RPM |
| SPINDLE SPEED - HORIZONTAL | 48 - 2160 RPM |
| SPINDLE TAPER - VERTICAL/HORIZONTAL | ISO 50 |
| SPINDLE MOTOR - VERTICAL | 5.5 HP |
| SPINDLE MOTOR - HORIZONTAL | 7.5 HP |
| APPROX. WEIGHT | 7,700 LBS. |
Equipped With
3-AXIS DIGITAL READOUT
PENDANT CONTROL
VARIABLE TABLE FEED FOR X,Y,Z
AUTOMATIC LUBRICATION
COOLANT
MANUAL RAM ADJUSTMENT FOR VERTICAL SPINDLE
POWER DRAWBAR FOR VERTICAL & HORIZ. SPINDLES
