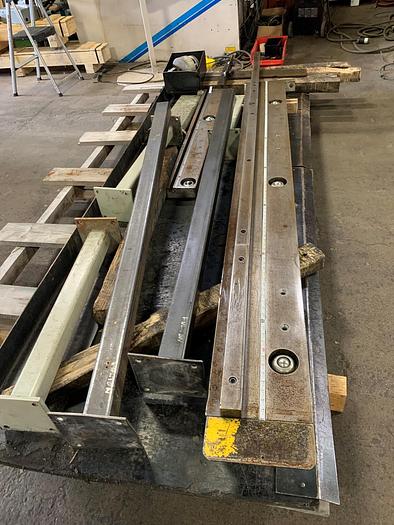

1/4" X 10' ACCURSHEAR, 2004, HYDRAULIC SHEAR
Sold
Specifications
| Manufacturer | ACCURSHEAR |
| Model | 625010 |
| Stock Number | 4372 |
| CUTTING CAPACITY | 1/4" |
| LENGTH | 10' |
| KNIFE SIZE INCHES | 1" X 3" X 124" |
| NO. OF HOLD DOWNS | 16 |
| HOLD DOWN TONNAGE | 16 |
| CYCLES PER MINUTE - FULL STROKE | 23 |
| CYCLES PER MINUTE - SHORT STROKE | 48 |
| MOTOR HP | 20 HP |
| ELECTRICS | 575V/3/60 |
| OVERALL DIMENSIONS | 147"L X 85"D X 83"H |
| APPROX. WEIGHT | 17,000 LBS |
Equipped With
STANDARD FEATURES:
2 FRONT SUPPORT ARMS PENDANT CONTROL C/W ON/OFF BUTTONS, MODE SELECTOR SWITCH & STROKE CONTROL DIAL BACKGAUGE CONTROL INCLUDES LED DISPLAY, INCH OR METRIC CONVERSION, GO-TO-POSITION FUNCTION, 999 PRE-SELECT PROGRAMS, HOUR METER & STROKE COUNTER 36" BACKGAUGE TRAVEL WITH AUTOMATIC SWING UP BACKSTOP AT FULL EXTENSION 4-EDGED BLADES, TOP & BOTTOM FOOT SWITCH CONTROL SHADOW LIGHT & LINE
OIL COOLER
OPTIONS INSTALLED:
POWERED BLADE CLEARANCE ADJUSTMENT
REAR SAFETY LIGHT CURTAINS
10' SQUARING ARM WITH PROTRACTOR
BALL TRANSFERS ON TABLE
