16" X 30", SOUTHWESTERN INDUSTRIES, 2011, MODEL TRAK TRL 1630SX, CNC LATHE
Sold
Specifications
| Manufacturer | SOUTHWESTERN INDUSTRIES |
| Model | TRL 1630SX |
| Year | 2011 |
| Stock Number | 4361 |
| HEIGHT OF CENTERS | 8" |
| DISTANCE BETWEEN CENTERS | 30" |
| SWING OVER BED | 16" |
| SWING OVER CROSS SLIDE | 8.6" |
| CROSS SLIDE TRAVEL | 8.5" |
| TOOL SECTION MAX. | 3/4" |
| CHUCK DIAMETER | 8" |
| COOLANT CAP. | 8 GAL. |
| OIL PUMP - WAY LUBRICATION | 2 LITER |
| OIL RESERVOIS - HEADSTOCK | 1.5 GAL. |
| BED WIDTH | 12.6" |
| SPINDLE NOSE | D1-6 |
| SPINDLE THRU HOLE | 2.12" |
| SPINDLE TAPER | MT#6 |
| SPINDLE SPEED RANGE | 150 - 2500 RPM |
| QUILL TRAVEL | 5.75" |
| SPINDLE MOTOR | 7.5 HP |
| ELECTRICS | 220V/3/60 |
| APPROX. WEIGHT | 2,800 LBS. |
Equipped With

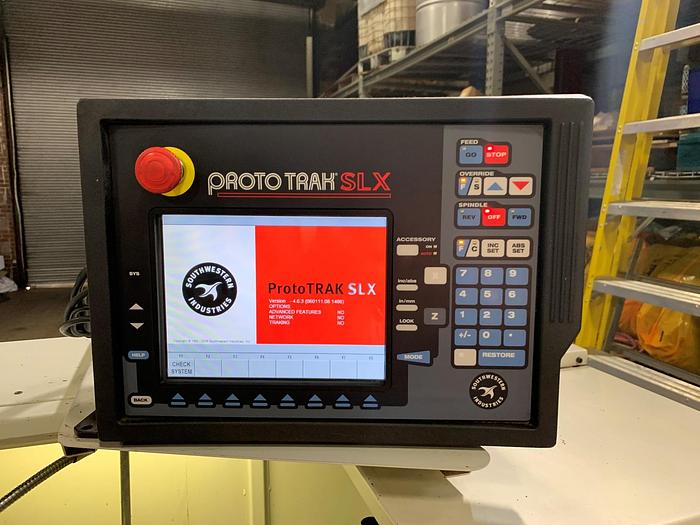

PROTO-TRAK SLX CNC CONTROL
8" 3-JAW CHUCK
QUICK CHANGE TOOLPOST W/EXTRA HOLDERS
AUTOMATIC LUBRICATION
COOLANT SYSTEM
WORKLIGHT
