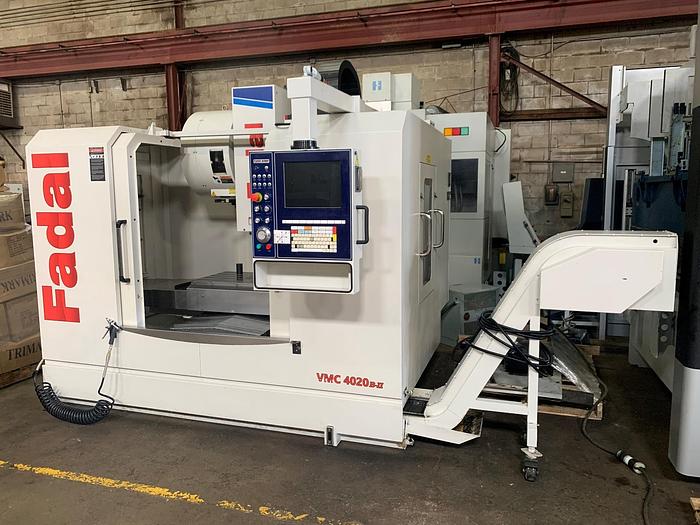

40"X, 20"Y, 20"Z, FADAL, 2018, MODEL 4020B-II, CNC VERTICAL MACHINING CENTER

Sold

Specifications

ManufacturerFADAL
Model4020B-II
Year2018
Stock Number4368
MANUFACTURING DATE07-2018
TABLE AREA47.25" X 19.75"
X-AXIS TRAVEL40"
Y-AXIS TRAVEL20"
Z-AXIS TRAVEL20"
MAX. TABLE LOAD1,320 LBS
SPINDLE NOSE TO TABLE SURFACE5" TO 25"

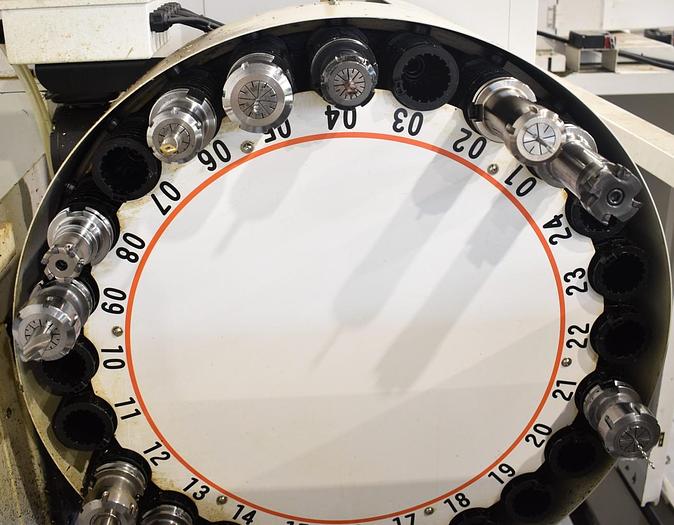

NO. OF STATIONS ON ATC24
SPINDLE TAPERCAT40
MAX. TOOL WEIGHT15 LBS.
MAX. SPINDLE SPEED10,000 RPM
RAPID TRAVERSE RATE1000"/MIN, X/Y/Z
MAIN MOTOR15 / 22.5 Hp
APPROX. WEIGHT11,770 LBS.

Equipped With

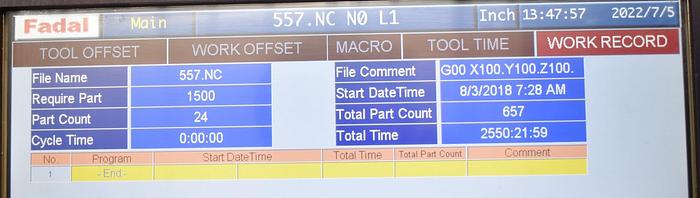

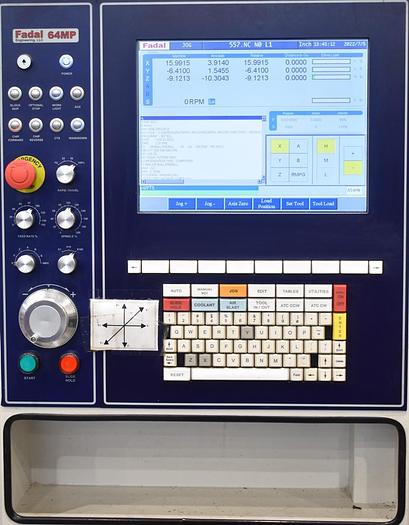

.Fadal 64 MP CNC controller

  • Box Way Construction
  • Spindle Oil Cooler
  • Side mount toolchanger
  • LED Work Lamp
  • Fully Enclosed
  • Spindle Air Blast
  • Automatic PDI Lubrication System
  • Operation Indication Lamp
  • Rigid Tapping



This machine is in mint condition with very little use.
