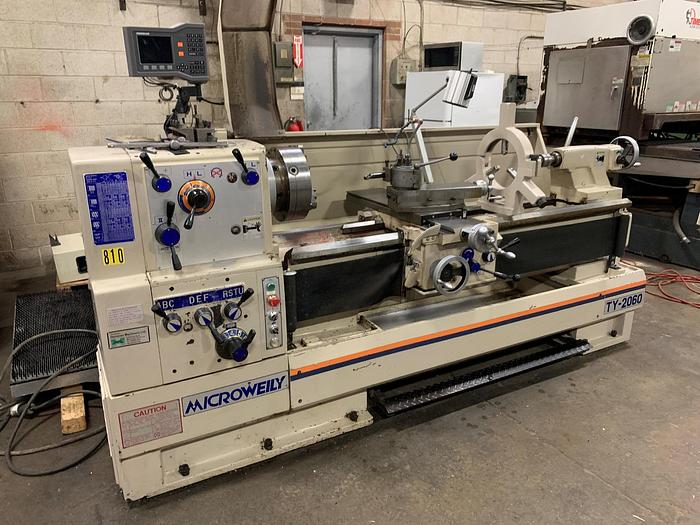

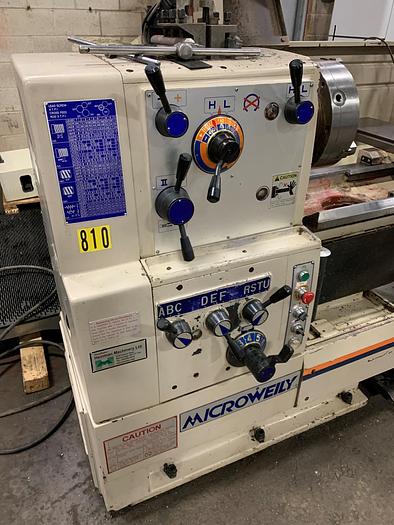

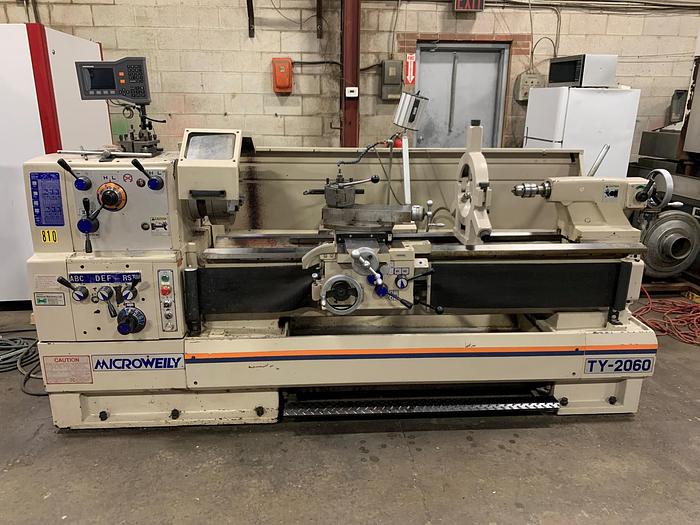

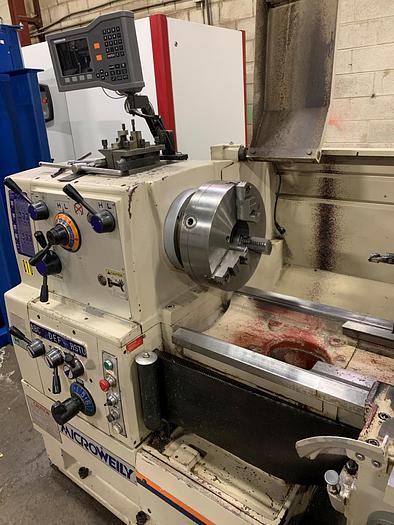

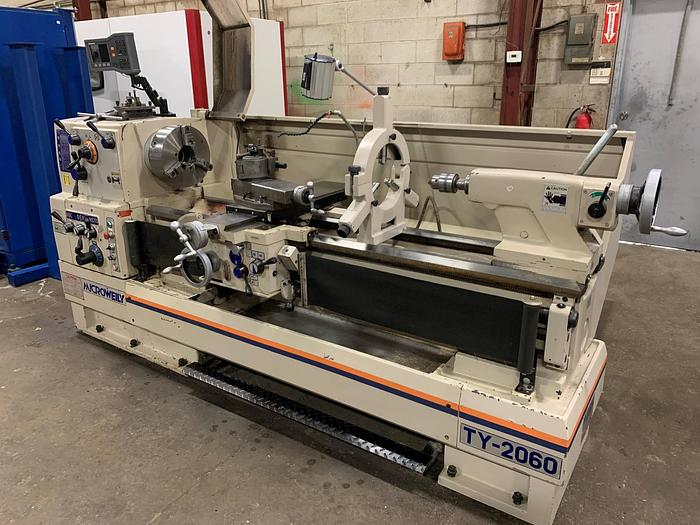

20” X 60” MICROWEILY, 2012, TOOLROOM LATHE
Sold
Specifications
| Manufacturer | 20" X 60", MICROWEILY, 2012, TY-2060, TOOLROOM LATHE |
| Model | TY-2060 |
| Year | 2012 |
| Stock Number | 4307 |
| SWING OVER BED | 20" |
| DISTANCE BETWEEN CENTERS | 60" |
| SWING OVER CROSS SLIDE | 13" |
| SWING IN GAP | 26-3/8" |
| CENTER HEIGHT | 10.03" |
| BED WIDTH | 15.74" |
| SPINDLE BORE | 3-1/8" |
| SPINDLE NOSE | D1-8 |
| SPEED RANGE | 20 - TO 1550 RPM |
| CROSS SLIDE TRAVEL | 12.59" |
| COMPOUND REST TRAVEL | 10.03" |
| QUILL TAPER | MT5 |
| QUILL DIAMETER | 2.95" |
| QUILL TAPER | MT5 |
| SPINDLE MOTOR | 10 HP |
| COOLANT PUMP | 1/8 HP |
| APPROX. WEIGHT | 4,916 LBS. |
Equipped With
HEIDENHAIN 2-AXIS DIGITAL READOUT
STEADY REST
QUICK CHANGE TOOLPOST WITH EXTRA HOLDERS
2-SPEED FEED TAILSTOCK
COOLANT SYSTEM
HARDENED & PRECISION GROUND GEARS & BEDWAY
INCH / METRIC THREADING
