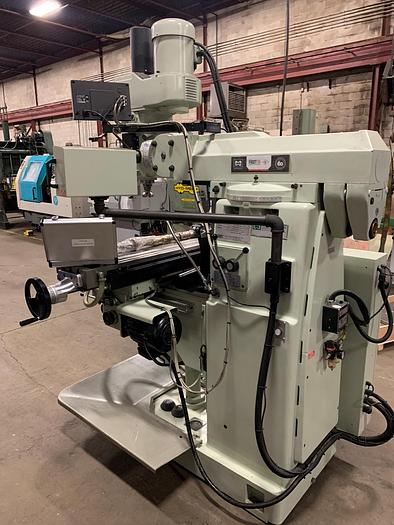

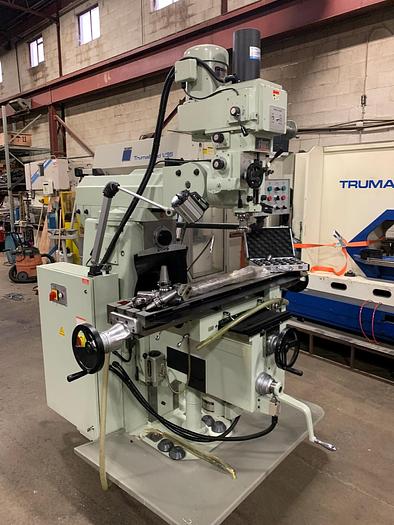

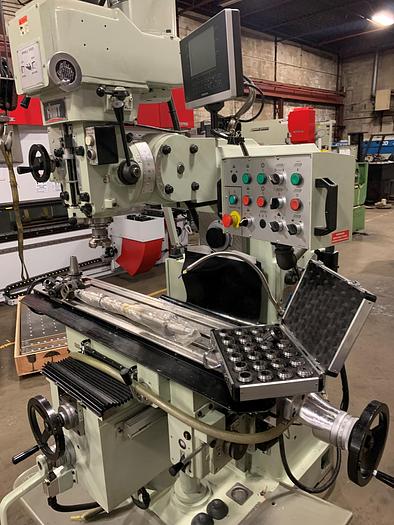

10" X 51", FIRST, 2019, LC-20VHS, HEAVY DUTY VERTICAL/HORIZONTAL VARIABLE SPEED MILLING MACHINE
Sold
Specifications
| Manufacturer | FIRST |
| Model | LC-20VHS |
| Year | 2019 |
| Stock Number | 4260 |
| TABLE WORK SURFACE | 51" X 10" |
| X-AXIS TRAVEL | 31.5" |
| Y-AXIS TRAVEL | 16.9" |
| Z-AXIS TRAVEL | 17.12" |
| MAX. TABLE LOAD | 1,102 LBS. |
| SPINDLE TAPER | ISA 40 |
| SPINDLE DRIVE MOTOR | 5 HP |
| VERTICAL SPINDLE SPEED - VARIABLE | 60 - 4500 RPM |
| HORIZONTAL SPINDLE SPEED - 6 STEP | 55 - 1180 RPM |
| HORIZONTAL SPINDLE DRIVE MOTOR | 5 HP |
| ELECTRICS | 600V/3/60 |
| APPROX. WEIGHT | 4,430 LBS. |
Equipped With

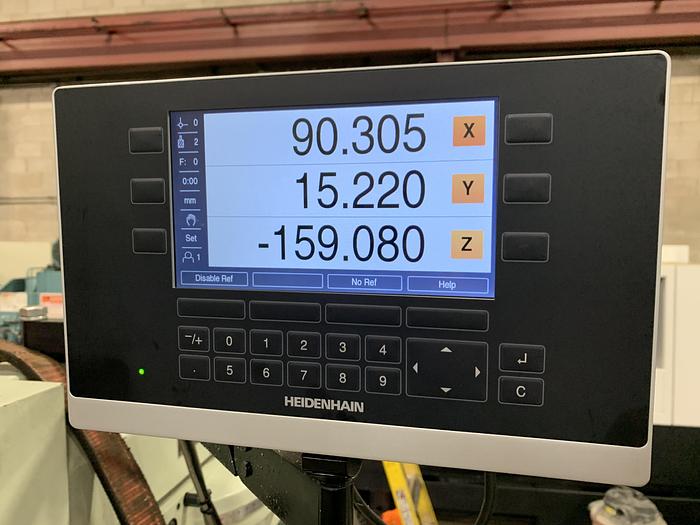

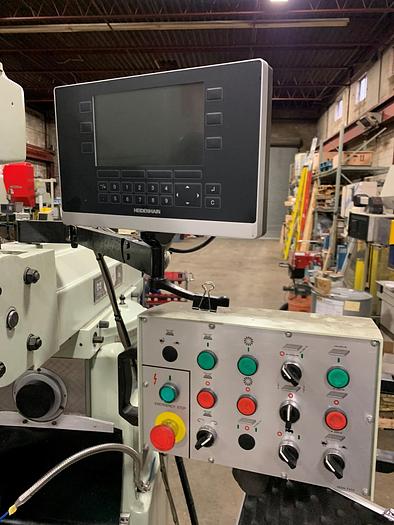

3-AXIS HEIDENHAIN DIGITAL READOUT
POWERFEED ON X-AXIS
ALIGN AIR POWER DRAWBAR
HORIZONTAL MILLING ARBOR & SUPPORTS
EXTRA TOOL HOLDERS
COLLET SET
ONE SHOT LUBRICATION
COOLANT SYSTEM & SPLASH TRAY
RUBBER CHIP COVERS
THIS MACHINE IS IN LIKE NEW CONDITION !!
