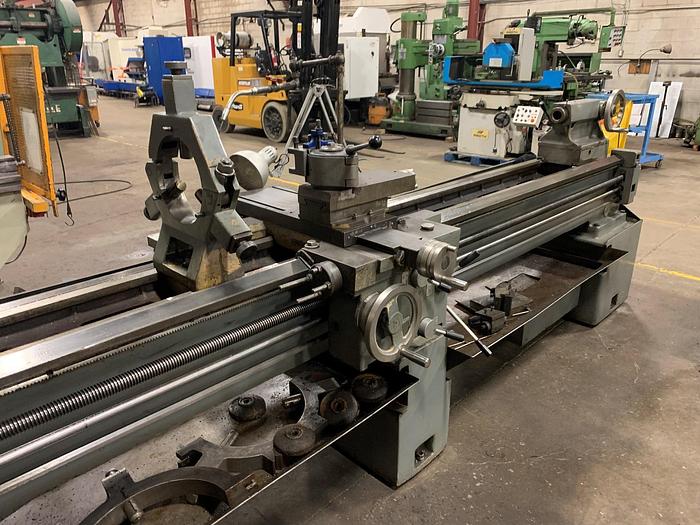

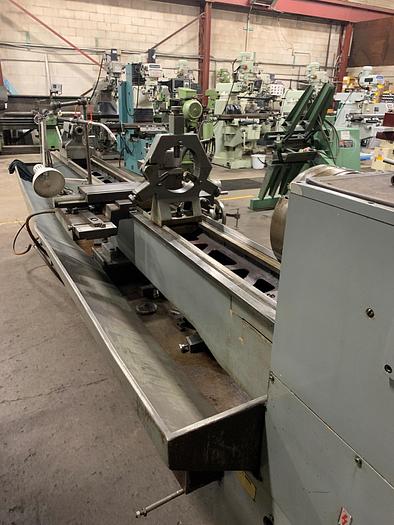

20" X 120", SIRCO, PA-20, HEAVY DUTY ENGINE LATHE
Sold
Specifications
| Manufacturer | SIRCO |
| Model | PA-20 |
| Stock Number | 4257 |
| SWING OVER BED | 20" |
| SWING OVER CROSS SLIDE | 12-1/4" |
| SWING OVER GAP | 27-1/2" |
| WIDTH OF GAP IN FRONT OF FACEPLATE | 10" |
| DISTANCE BETWEEN CENTERS | 120" |
| DIAMETER OF SPINDLE BORE | 4-1/8" |
| SPINDLE NOSE CAMLOCK | D 1-8 |
| NUMBER OF SPINDLE SPEEDS | 12 |
| RANGE OF SPINDLE SPEEDS | 22 - 1500 RPM |
| WIDTH OF BED | 14" |
| CROSS SLIDE TRAVEL | 14" |
| TOP SLIDE TRAVEL | 6-1/2" |
| SPINDLE TAPER | 5 MT |
| SPINDLE DIAMETER | 3" |
| SPINDLE TRAVEL OF TAILSTOCK | 8" |
| APPROX. WEIGHT | 7,000 LBS |
Equipped With
12" 3-JAW CHUCK
18" 4-JAW CHUCK
(2) STEADY RESTS
QUICK CHANGE TOOL POST W/EXTRA TOOL HOLDERS
TAPER ATTACHMENT
INCH/METRIC THREADING
COOLANT
