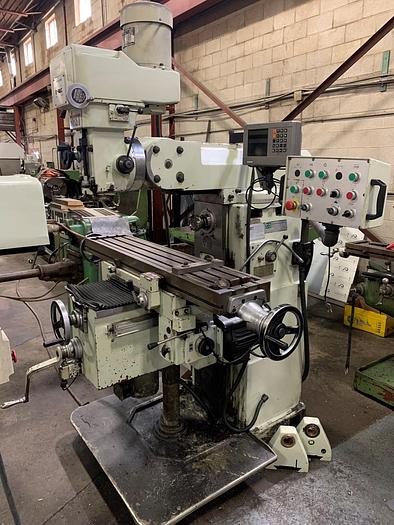

10" X 51", FIRST, LC-20VHS, UNIVERSAL MILLING MACHINE
Sold
Specifications
| Manufacturer | FIRST |
| Model | LC-20VHS |
| Stock Number | 4192 |
| TABLE WIDTH | 10" |
| TABLE LENGTH | 51” |
| TABLE TRAVEL - LONGITUDINAL | 31" |
| TABLE TRAVEL - CROSS | 16" |
| VERTICAL QUILL TRAVEL | 5" |
| VERTICAL KNEE TRAVEL | 15" |
| SPINDLE TAPER | 40 |
| SPINDLE SPEED | 60 - 4500 RPM |
| MOTOR | 5 HP |
| ELECTRICS | 575V/3/60 |
| APPROX. DIMENSIONS | 70" X 66" X 94" Tall |
| APPROX. WEIGHT | 3,250 LBS |
Equipped With
2-AXIS HEIDENHAIN DIGITAL READOUT POWER RISE AND FALL ON KNEE ONE SHOT LUBRICATION PENDANT CONTROL
