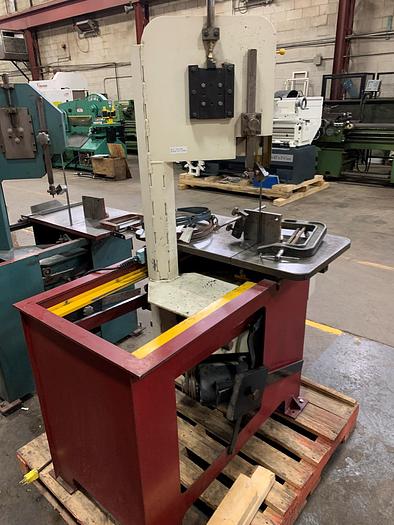

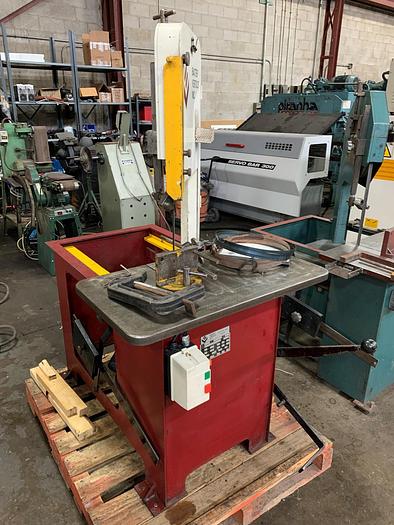

10" X 13" BAXTER VERTICUT , MODEL 115B, VERTICAL ROLL-IN SAW
Sold
Specifications
| Manufacturer | BAXTER |
| Model | 115B |
| Stock Number | 4185 |
| CUTTING CAPACITY - ROUND | 10" |
| ROUND AT MAX. 8-1/2" LENGTH | 13" |
| ROUND AT 45 DEGREES | 7" |
| RECTANGULAR | 10" X 13" |
| RIP CUTTING WIDTH | 9" |
| BLADE SIZE | 1/4" TO 3/4" X 10' |
| BLADE SPEEDS | 75, 130, 215, 350 FT./MIN. |
| BLADE GUIDES | HARDENED ROLLERS |
| WORK TABLE (GROUND SOLID STEEL ) | 1" X 18" X 30" |
| APPROX. MACHINE WEIGHT | 1,000 LBS. |
| BLADE DRIVE | 3/4" |
| MOTOR STARTER | MANUAL |
| VOLTAGE | 115V / 1 PH/ 60 CY |
Equipped With
FOOT PEDAL FOR HANDS FREE OPERATION
GRADUATED SCALE FOR DEPTH OF CUT
ADJUSTABLE CUTTING FORCE FOR CUTTING OF SOLIDS OR STRUCTURAL SHAPES
HEAVY DUTY BASE
