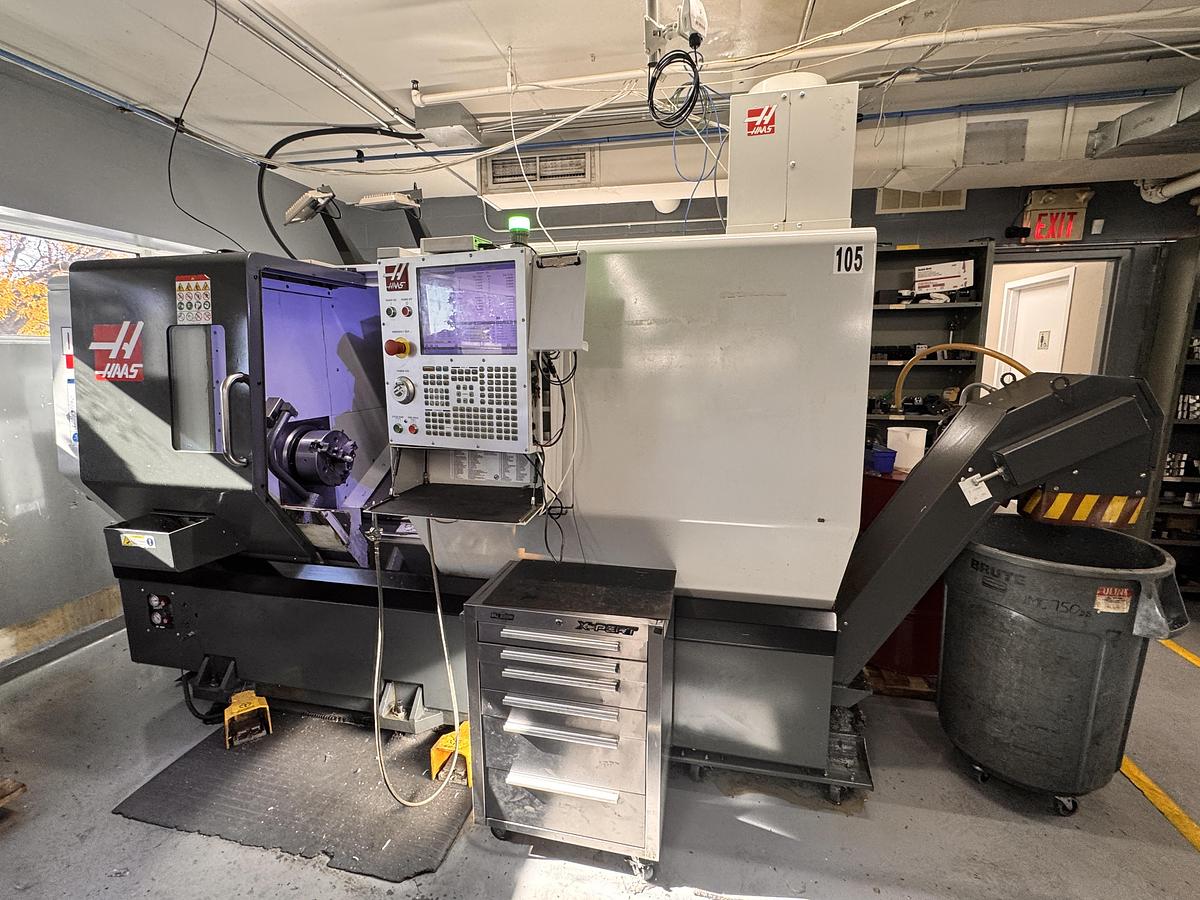

HAAS, DS-30Y, 2019, CNC LATHE, WITH Y-AXIS, SUB-SPINDLE, LIVE TOOL CAPABILITY
or
Call (905) 669-7507
Specifications
| Manufacturer | Lathes, CNC |
| Model | DS-30Y |
| Year | 2019 |
| Stock Number | 10091 |
| MAX. PART SWING | 21" |
| MAX. CUTTING DIAMETER | 13.75" |
| MAX. CUTTING LENGTH | 32.5" |
| MAIN SPINDLE RPM | 4,500 RPM |
| MAX. BAR CAPACITY | 3" |
| X-AXIS TRAVEL | 9.4" |
| Y-AXIS TRAVEL | +/- 2" |
| Z-AXIS TRAVEL | 32.5" |
| ELECTRICS | 220V/3/60 |
| MAIN SPINDLE MOTOR | 30 HP |
| APPROX. MACHINE WEIGHT | 12,200 LBS. |
Equipped With
APPROX, 9,300 CUTTING HOURS
HAAS CNC CONTROL
10' MAIN CHUCK

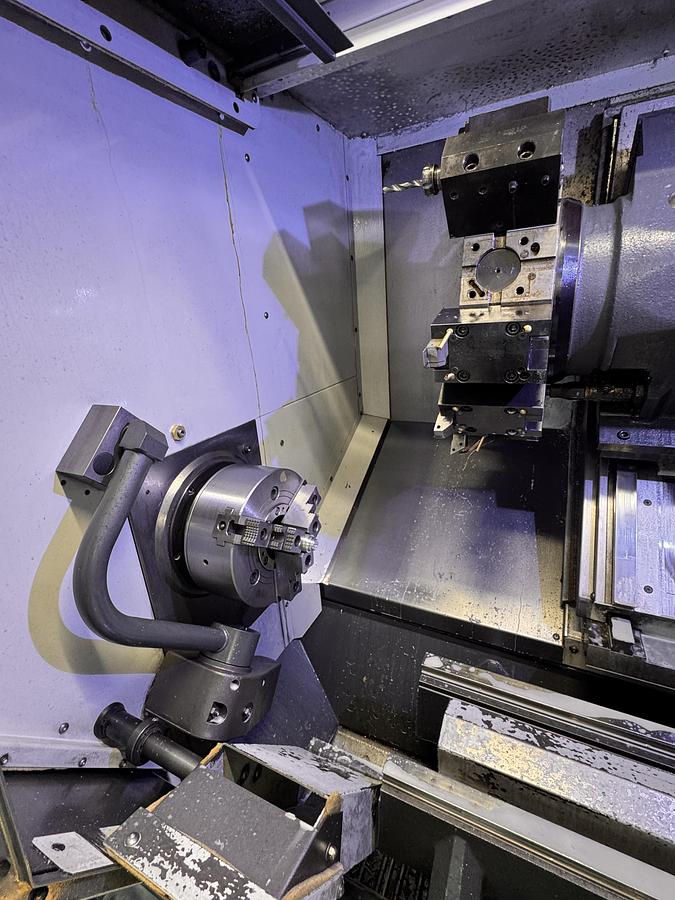

8" SUB-SPINDLE CHUCK

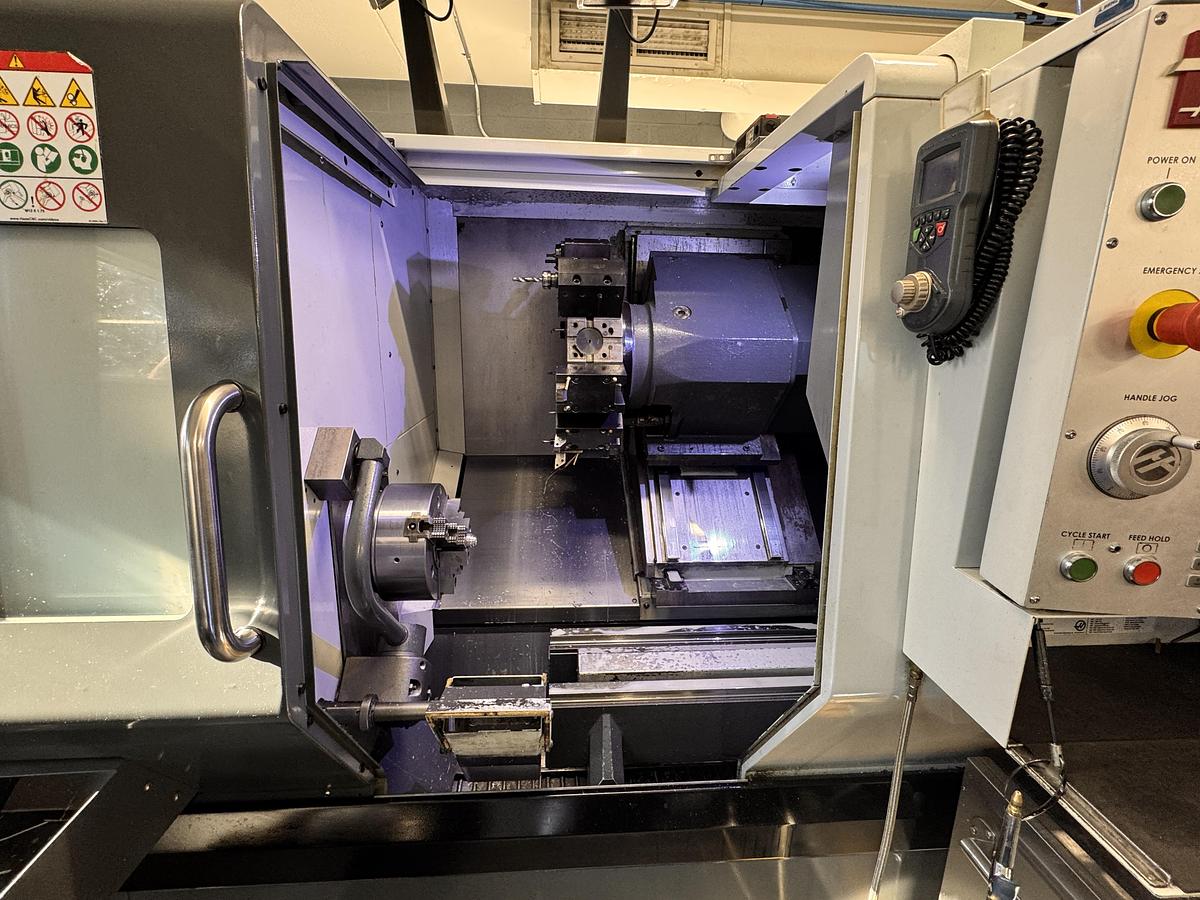

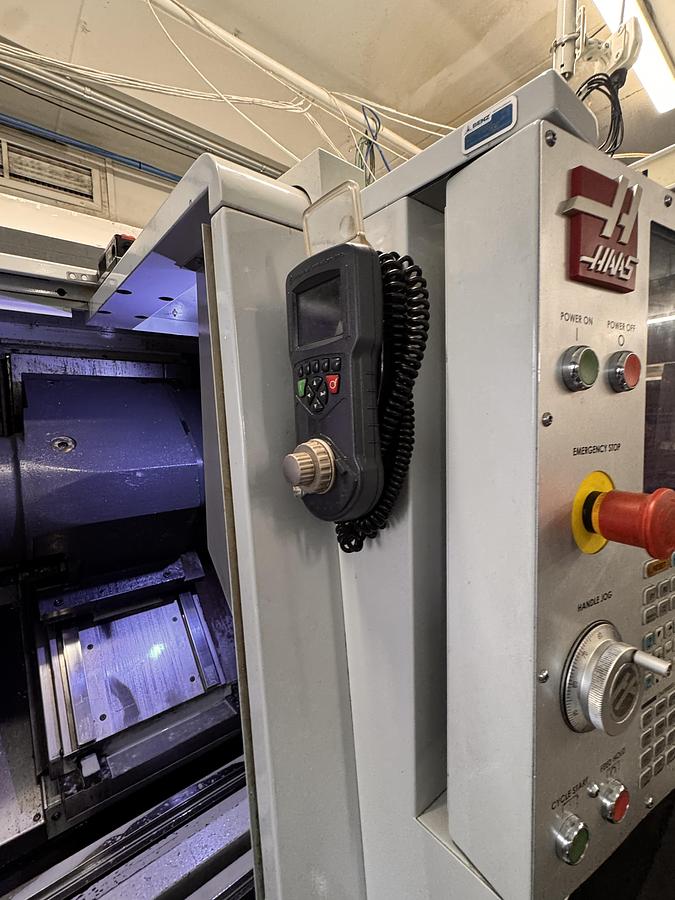

REMOTE JOG HANDLE
Y-AXIS ENABLED
HIGH PRESSURE COOLANT 300 PSI

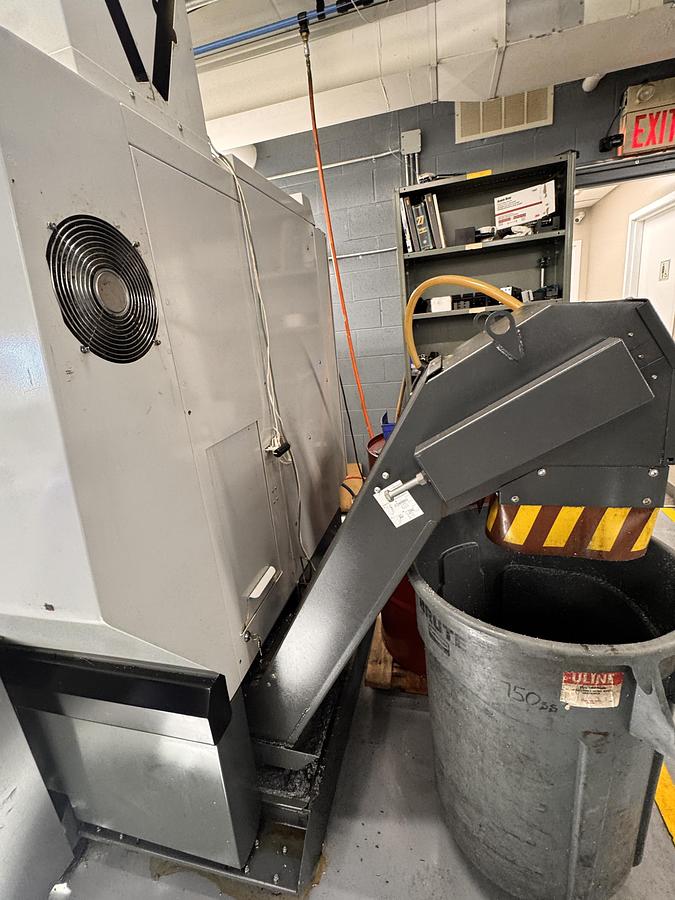

CHIP CONVEYOR

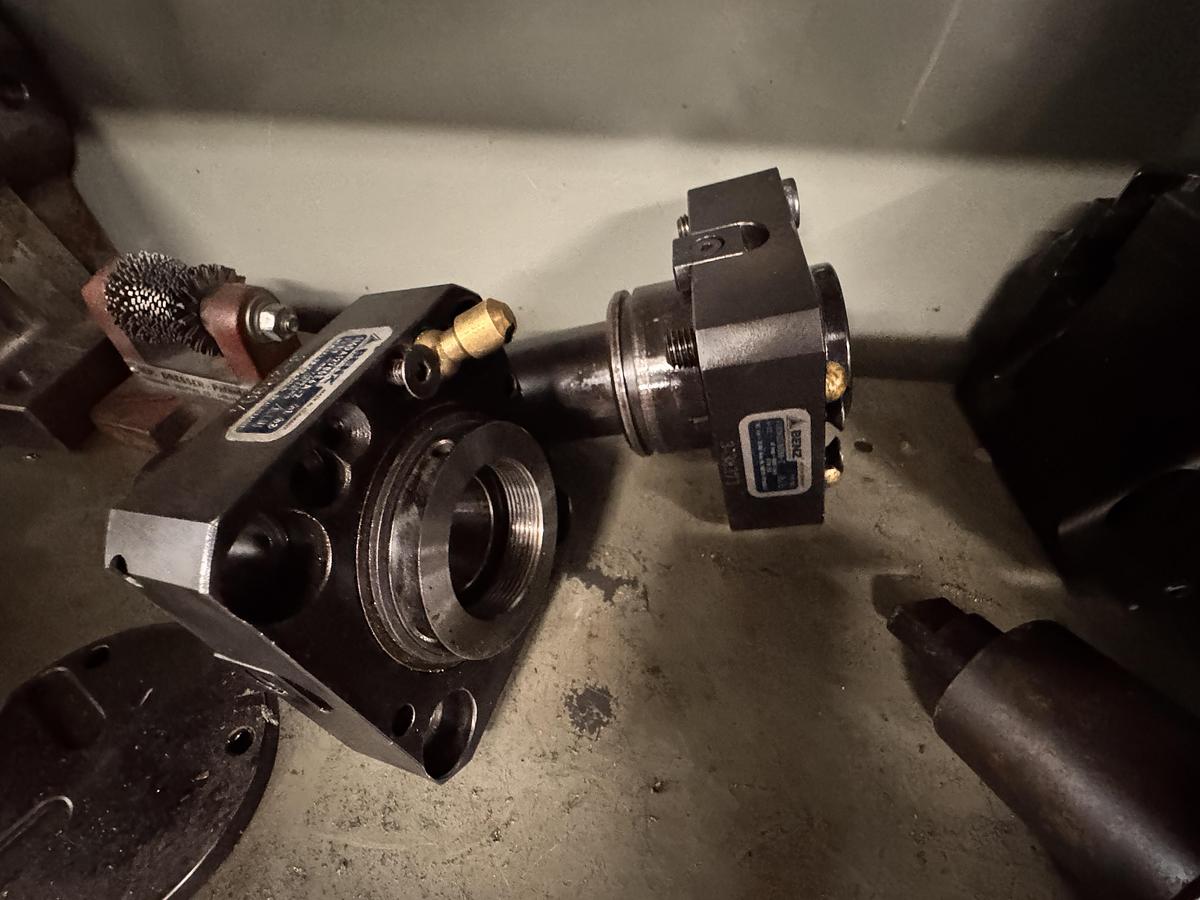

LIVE TOOL CAPABILITY, (2) AXIAL & (2) RADIAL LIVE TOOL HOLDERS

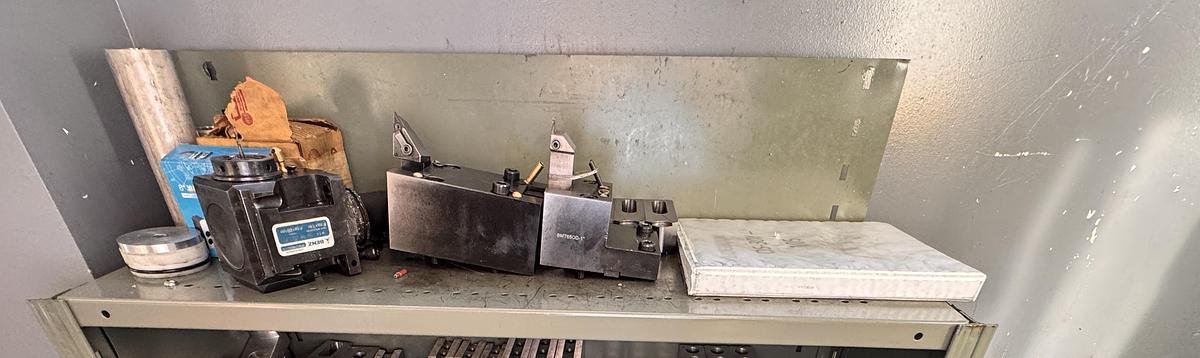

ASSORTED STANDARD TOOL HOLDERS
AUTOMATIC TOOL PRESETTER
PARTS CATCHER

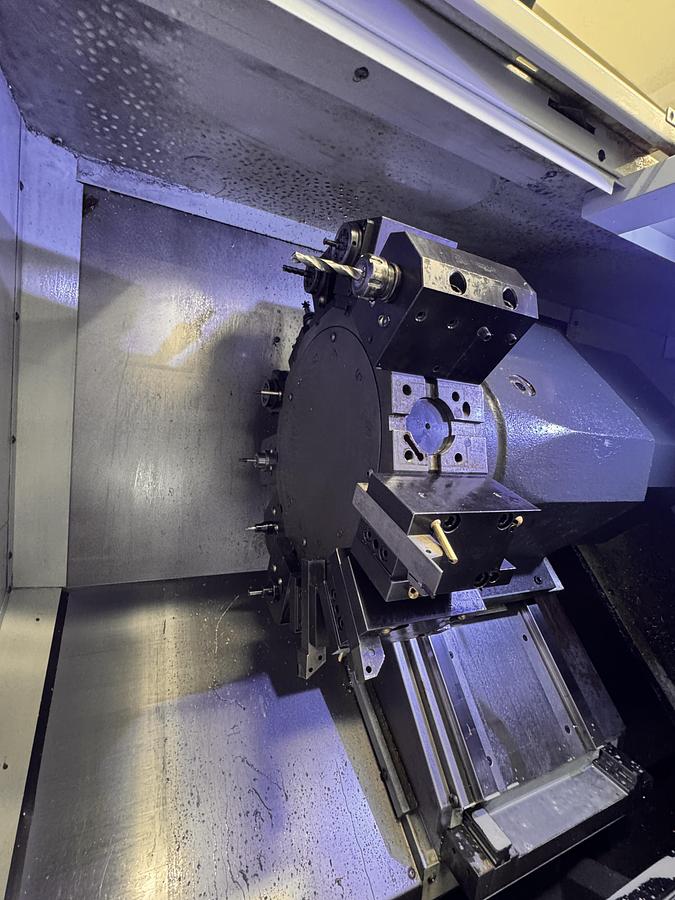

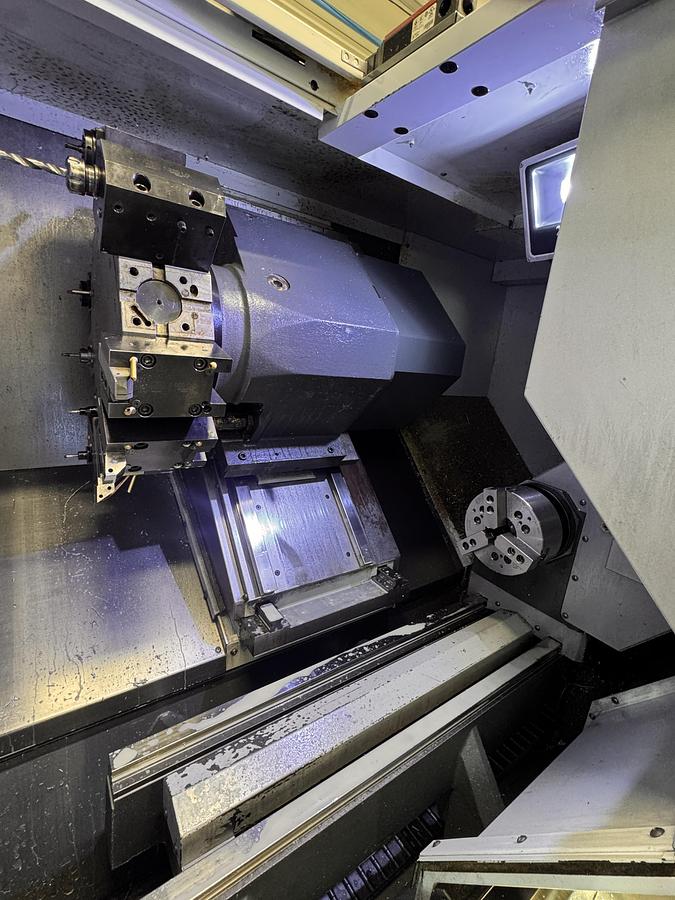

12 STATION TURRET
HIGH INTENSITY LIGHTING
