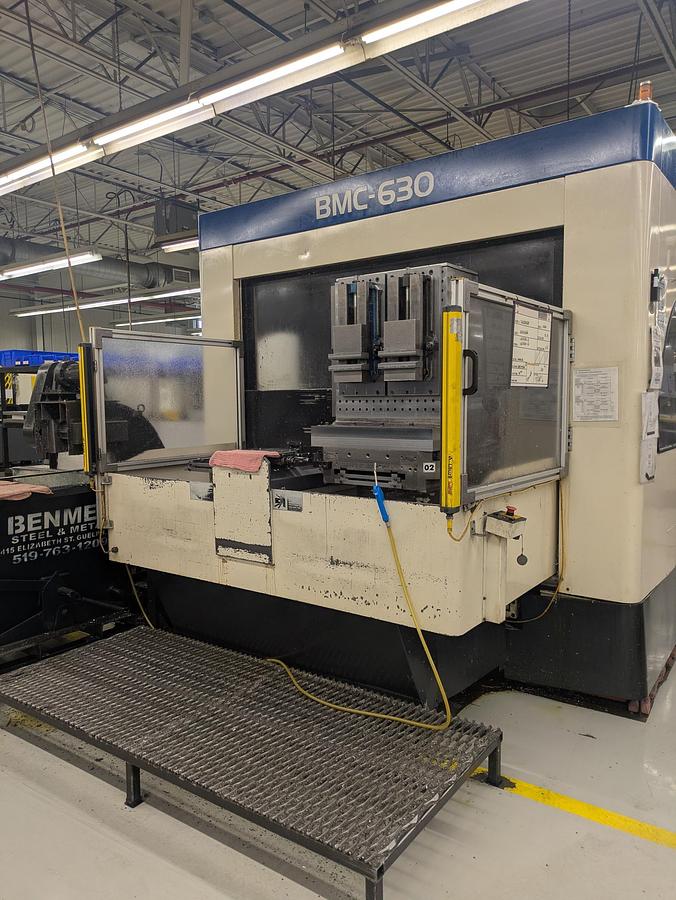

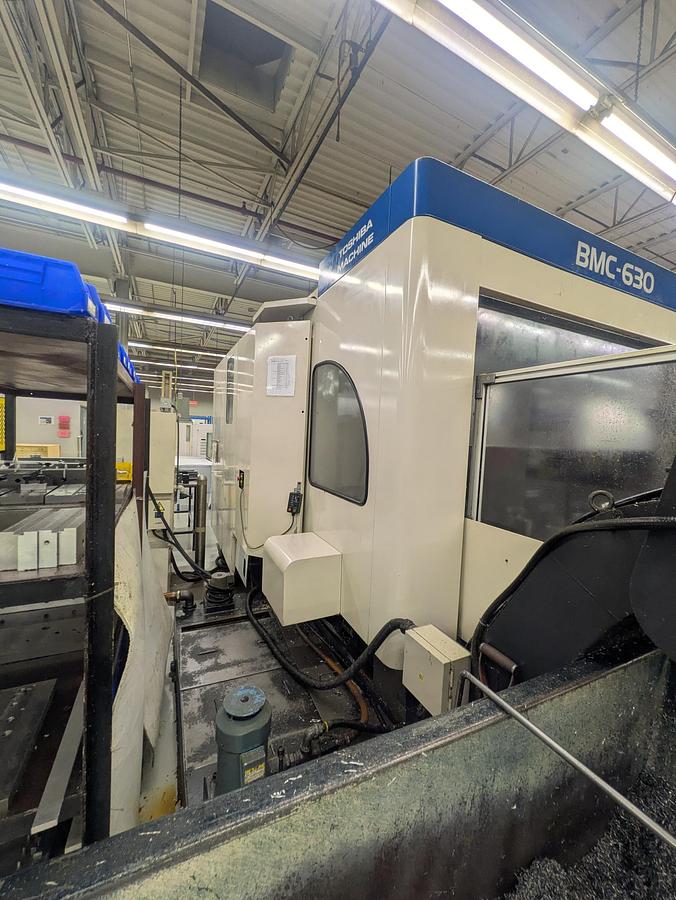

39.3"X, 31.5"Y, 33.4"Z, TOSHIBA, BMC630, 1997, HORIZONTAL MACHINING CENTER
Specifications
| Manufacturer | TOSHIBA |
| Model | BMC-630 |
| Year | 1997 |
| Stock Number | 10083 |
| X-AXIS TRAVEL | 39.37" |
| Y-AXIS TRAVEL | 31.50" |
| Z-AXIS TRAVEL | 33.46" |
| DISTANCE FROM SPINDLE CENTER TO PALLET TOP | 5.9" TO 39.4" |
| PALLET SIZE | 24.75" X 24.75" |
| NO. OF PALLETS | 2 |
| PALLET WEIGHT CAPACITY | 2,460 LBS. |
| PALLET INDEXING ( B-AXIS ) | 0.0001° FULL 4TH AXIS CONTOURING |
| SPINDLE TAPER | CAT 50 |
| SPINDLE SPEED RANGE | 25 - 5000 RPM |
| SPINDLE MOTOR | 20 HP |
| MAX. TOOL WEIGHT | 55 LBS. |
| RAPID TRAVERSE RATE - ( X, Y, Z ) | 788 IPM |
| APPROX. MACHINE WEIGHT | 33,000 LBS. |
| APPROX. FLOOR SPACE REQUIRED | 126" X 247" |
Equipped With

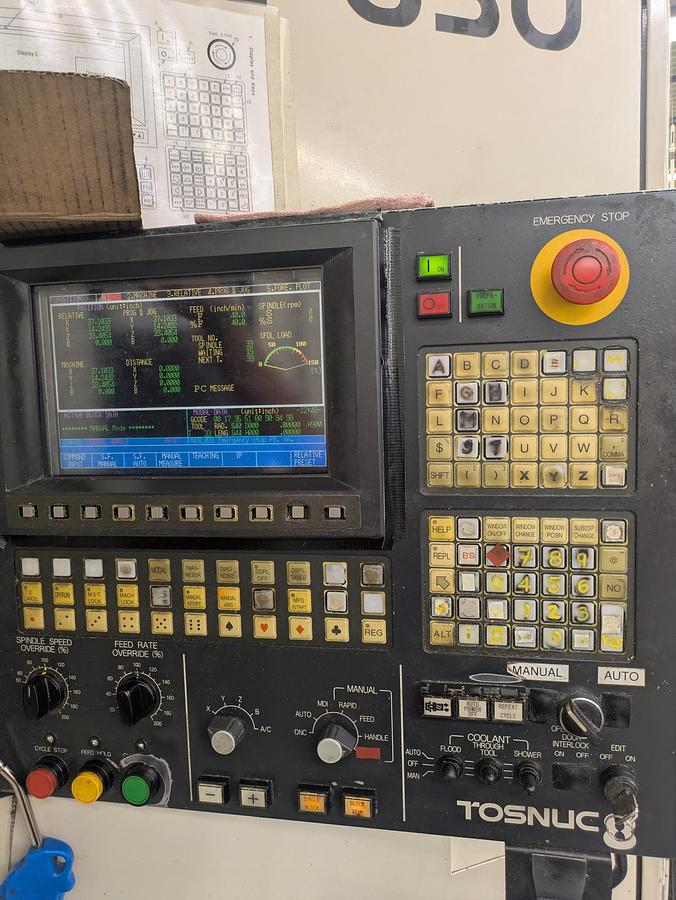

TOSNUC 888 CNC CONTROL

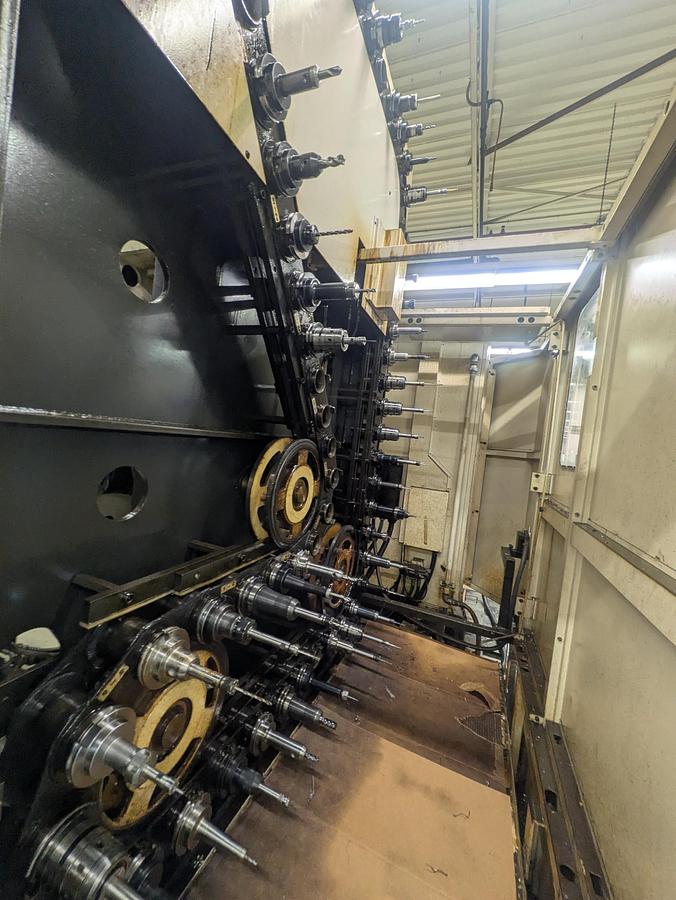

60 TOOL ATC

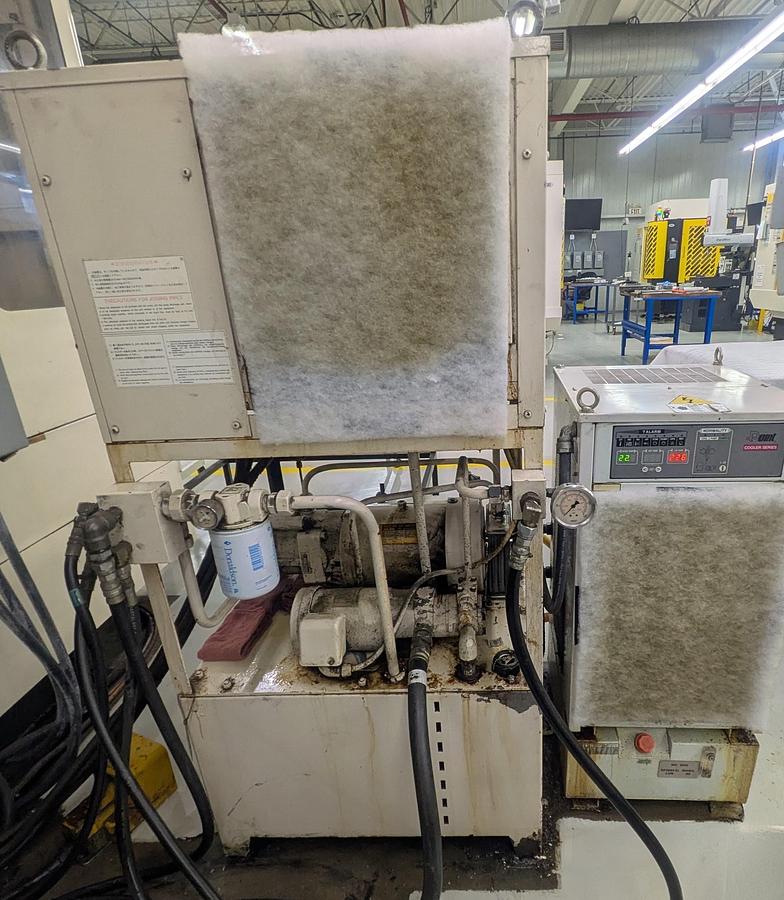

HIGH PRESSURE COOLANT THRU SPINDLE
RECENTLY REPLACE SPINDLE MOTOR JUNE 2026
AIR OIL MIST AUTO LUBRICATED
2 PALLET CHANGER
This used TOSHIBA BMC-630 Horizontal Machining Center from 1997 is equipped with the TOSNUC 888 CNC control system and offers reliable performance. It features a large 39.37" X-axis, 31.50" Y-axis, and 33.46" Z-axis travel, providing ample space for versatile machining operations. The machine includes a 60-tool automatic tool changer and a high-pressure coolant system through the spindle, ensuring efficient and prolonged operation. The BMC-630 is designed with features that enhance productivity, such as a 2-pallet changer with each pallet measuring 24.75" x 24.75", capable of handling weights up to 2,460 lbs. The spindle taper is CAT 50, with a range of 25 to 5000 RPM, powered by a 20 HP spindle motor, recently replaced in June 2026, ensuring continued reliability. The machine can handle a maximum tool weight of 55 lbs. and offers rapid traverse rates of 788 inches per minute across all axes. The unit is also equipped with air-oil mist auto lubrication for smooth operation and minimal maintenance. It requires approximately 126" x 247" of floor space and weighs around 33,000 lbs., suitable for industrial environments requiring robust machining capabilities. This machine is an excellent choice for those seeking precision and durability in a horizontal machining center.
