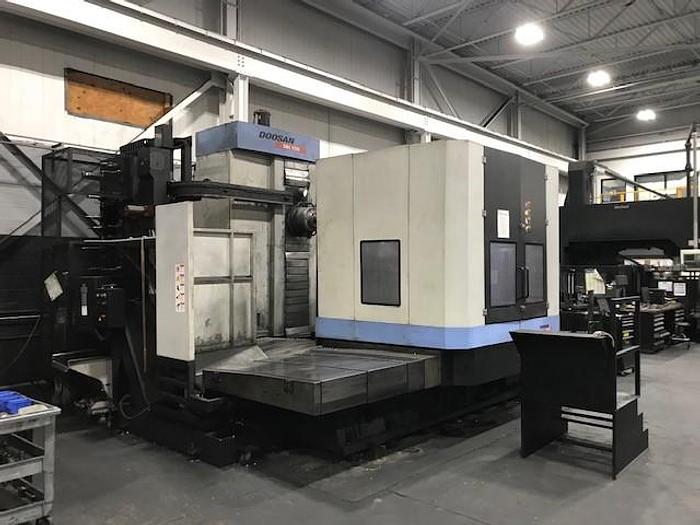

78.7"X, 59"Y, 47"Z, 19.5"W, DOOSAN, 2011, CNC HORIZONTAL BORING MILL
No longer available
Specifications
| Manufacturer | DOOSAN |
| Model | DBC-110S |
| Year | 2011 |
| Stock Number | 4160 |
| SPINDLE DIAMETER | 4.3" |
| TABLE AREA | 55" X 63" |
| X-AXIS TRAVEL ( CROSS ) | 78.7" |
| Y-AXIS TRAVEL ( VERTICAL ) | 59" |
| W-AXIS TRAVEL ( LONGITUDINAL ) | 19.6" |
| Z-AXIS TRAVEL ( SPINDLE TRAVEL ) | 47.2" |
| SPINDLE TAPER | CAT 50 |
| SPINDLE SPEEDS | 3000 RPM |
| MAIN MOTOR | 35 HP |
| RAPID TRAVERSE RATE (X,Y,Z,W) | 473, 473, 473, 236 IPM |
| APPROX. WEIGHT | 53,000 LBS |
Equipped With
FULL 4TH AXIS
FANUC CNC CONTROL
40 ATC
CHIP CONVEYOR
COOLANT THRU SPINDLE
REMOTE HAND CONTROL
COOLANT TANK & PUMP
