165 TON x 141.7", HACO ERM 36150, HYDRAULIC CNC PRESS BRAKE
Specifications
| Manufacturer | HACO |
| Model | ERM 36150 |
| Year | 2003 |
| Stock Number | 10051 |
| CAPACITY | 165 TONS |
| OVERALL BENDING LENGTH | 141.7" |
| DISTANCE BETWEEN HOUSINGS | 122" |
| STROKE | 7.9" |
| THROAT DEPTH | 9.8" |
| DAYLIGHT OPENING | 17.7 " |
| MOTOR | 20 HP |
| WEIGHT | 19400 LB |
Equipped With

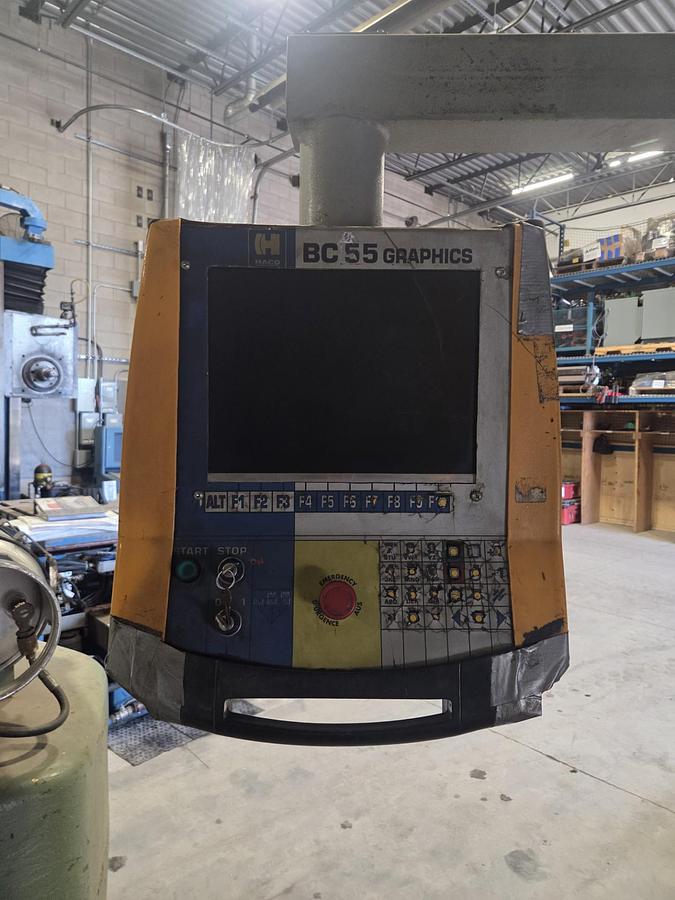

HACO BC55 CONTROL
CNC BACKGUAGE
FOOT PEDAL
The HACO ERM 36150 is a reliable hydraulic CNC press brake designed for precision and efficiency in metal forming tasks. It features the HACO BC55 control system, allowing for user-friendly operation and enhanced accuracy through its CNC backgauge. This machine provides a bending capacity of 165 tons, suitable for handling a wide range of applications. With an overall bending length of 141.7 inches and a distance of 122 inches between housings, this press brake can accommodate large workpieces. The 7.9-inch stroke and 9.8-inch throat depth provide flexibility in forming operations. A 17.7-inch daylight opening allows for ease in managing various material thicknesses, supported by its robust 20 HP motor. This used press brake comes equipped with a foot pedal for convenient control during operation. Weighing in at 19,400 lbs, the machine is a sturdy addition to any industrial setting. Its solid construction and dependable performance make the HACO ERM 36150 a valuable asset for businesses seeking efficient metalworking solutions.
