9.8" x 12.6", BOMAR, MITRE-CUT, HORIZONTAL BAND SAW
Specifications
| Manufacturer | BOMAR |
| Model | ERGONOMIC 320.250 DGS |
| Stock Number | 10042 |
| MITRE CAPACITY | -45° to +60° |
| ROUND CUTTING CAPACITY | 9.84" |
| RECTANGLE CUTTING CAPACITY | 12.6" x 7.5" |
| SQUARE CUTTING CAPACITY | 9.45" x 9.45" |
| BLADE SIZE | 114.6" x 1.06" |
| BLADE SPEEDS | 131 OR 262 FT/MIN |
| MOTOR POWER | 2 HP |
| MACHINE WEIGHT | 815 LB |
| MACHINE DIMENSIONS | 59" x 32" x 45" |
Equipped With
GRAVITY-FEED CUTTING WITH HYDRAULIC DOWNFEED CONTROL
MANUAL SAW ARM RAISE
QUICK-ACTION MANUAL VISE
FLOOD COOLANT SYSTEM
CHIP CLEANING BRUSH

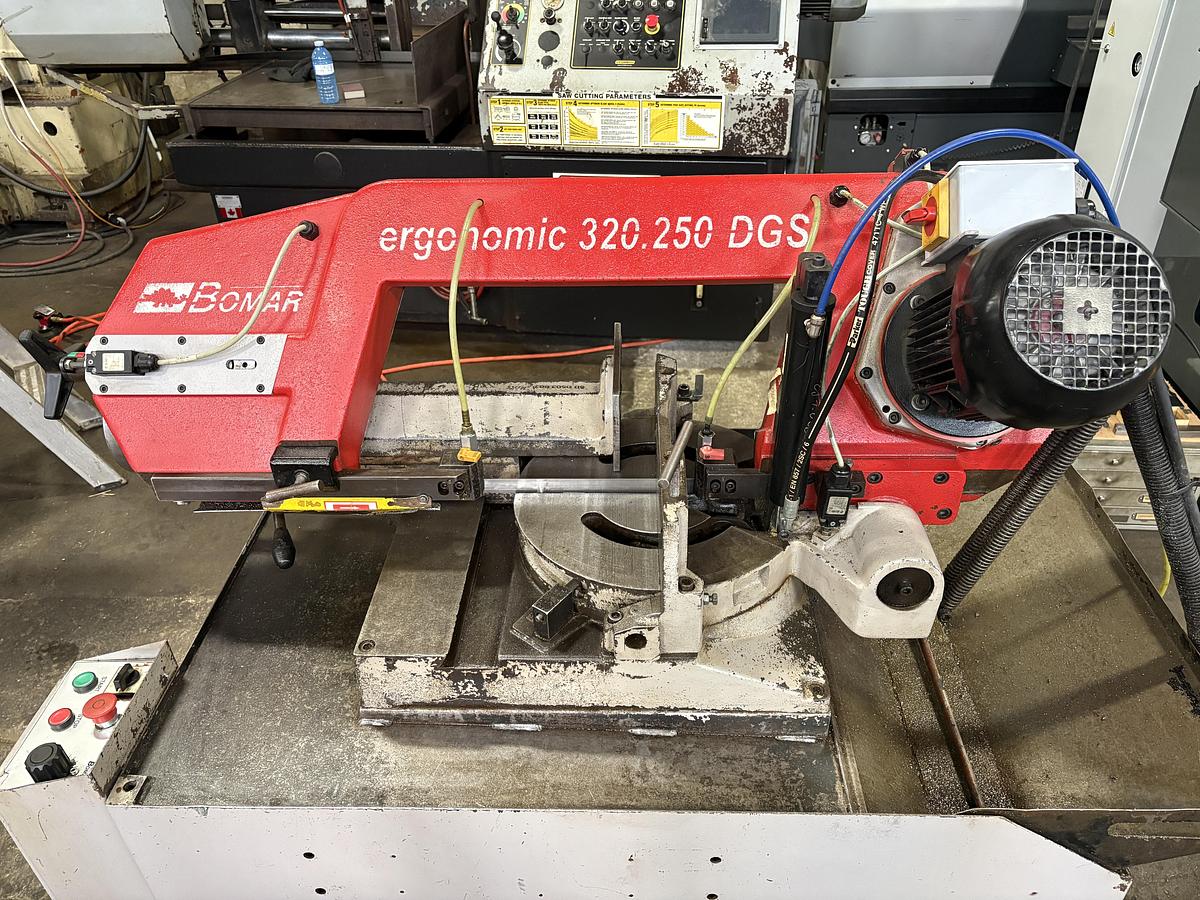

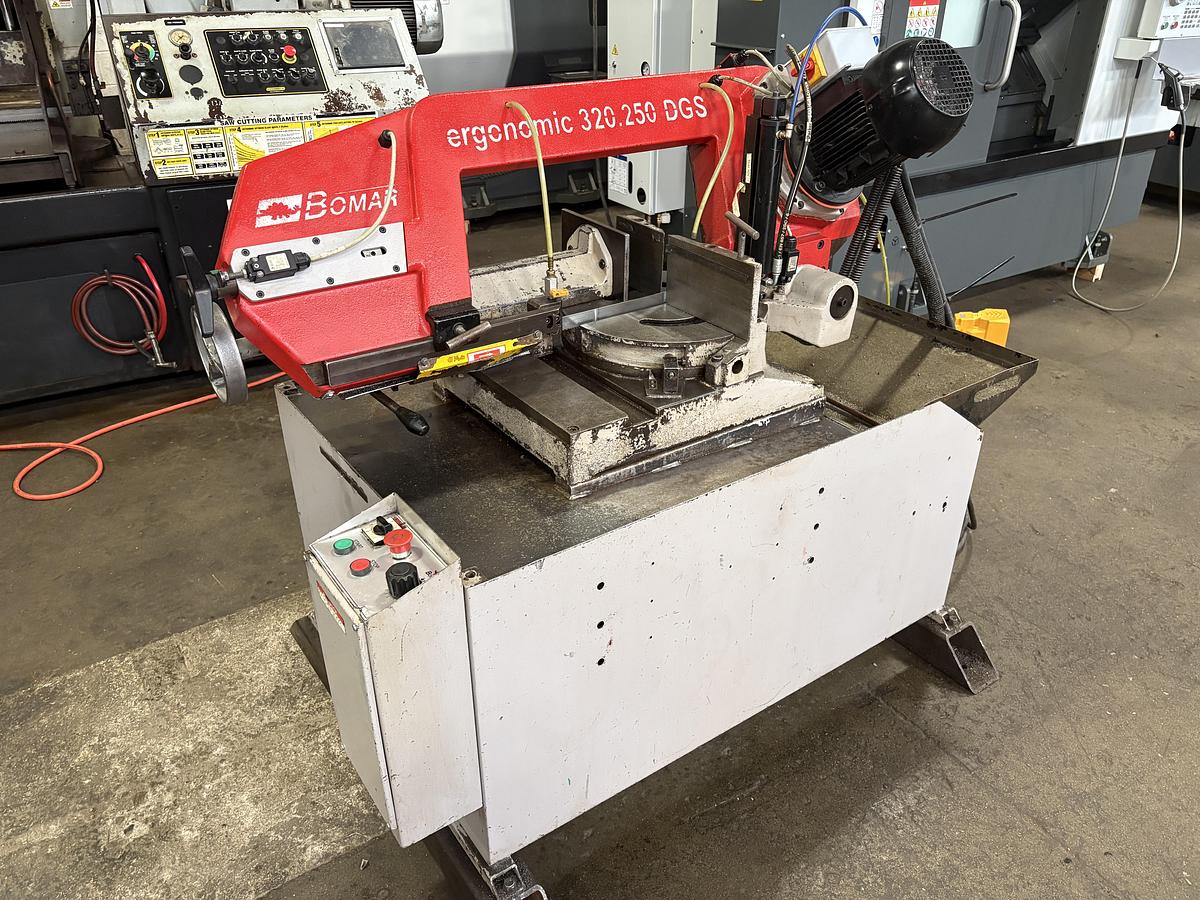

The BOMAR ERGONOMIC 320.250 DGS is a used horizontal band saw designed for precision cutting with a mitre capacity ranging from -45° to +60°. It features gravity-feed cutting with hydraulic downfeed control, allowing for smooth operation. The machine includes a manual saw arm raise and a quick-action manual vise, which streamlines the setup process and improves cutting efficiency. This band saw accommodates various cutting capacities, handling round materials up to 9.84 inches in diameter and rectangular pieces up to 12.6 x 7.5 inches. It is equipped with a flood coolant system to enhance blade longevity and maintain optimal cutting temperatures, along with a chip cleaning brush for clean operation. The 114.6 x 1.06-inch blade can operate at speeds of 131 or 262 ft/min, driven by a 2 HP motor. With machine dimensions of 59 x 32 x 45 inches and a weight of 815 pounds, this band saw is compact enough for versatile workshop spaces while still delivering robust performance. It is an efficient choice for various industrial applications, offering solid precision and reliability for cutting tasks.
