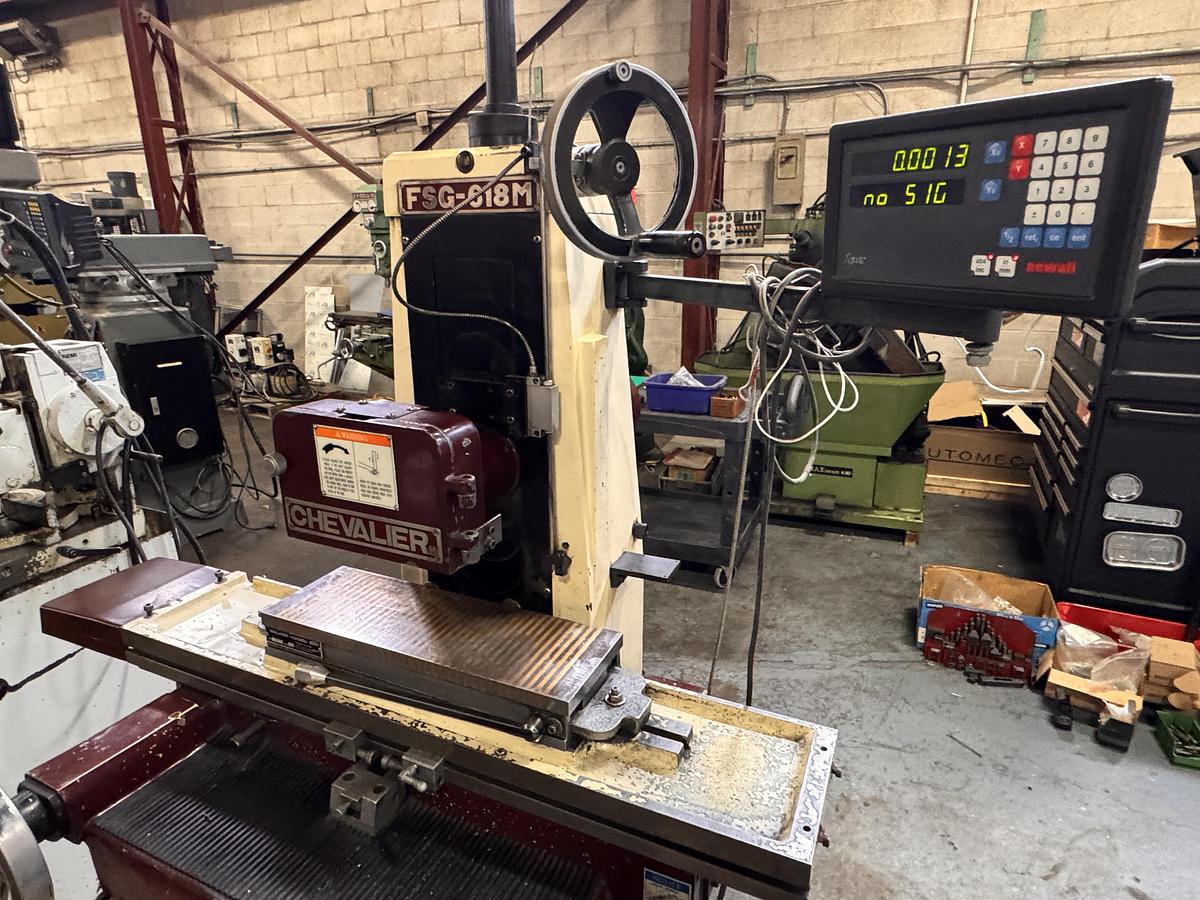

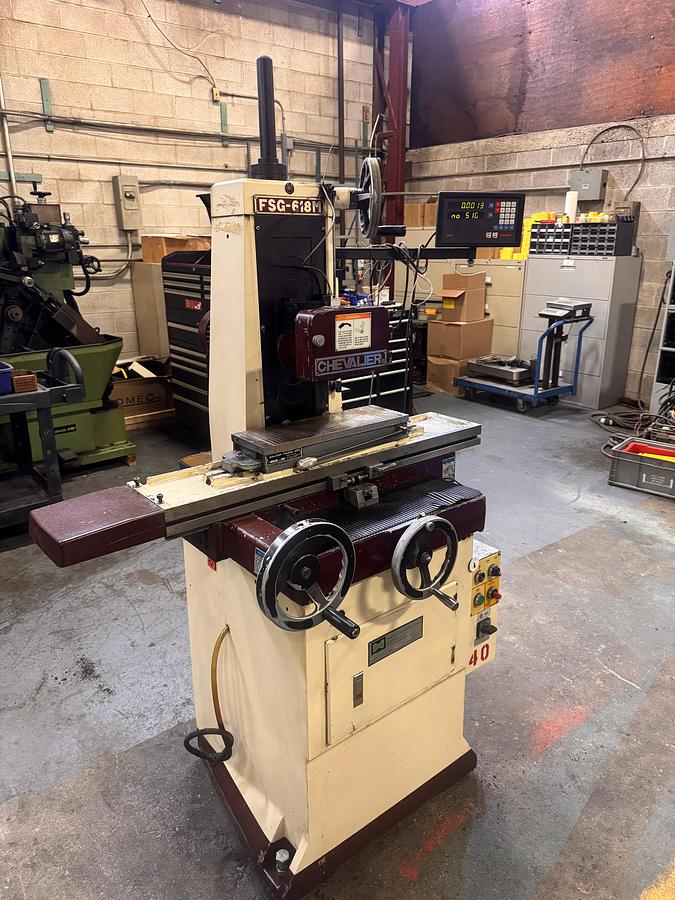

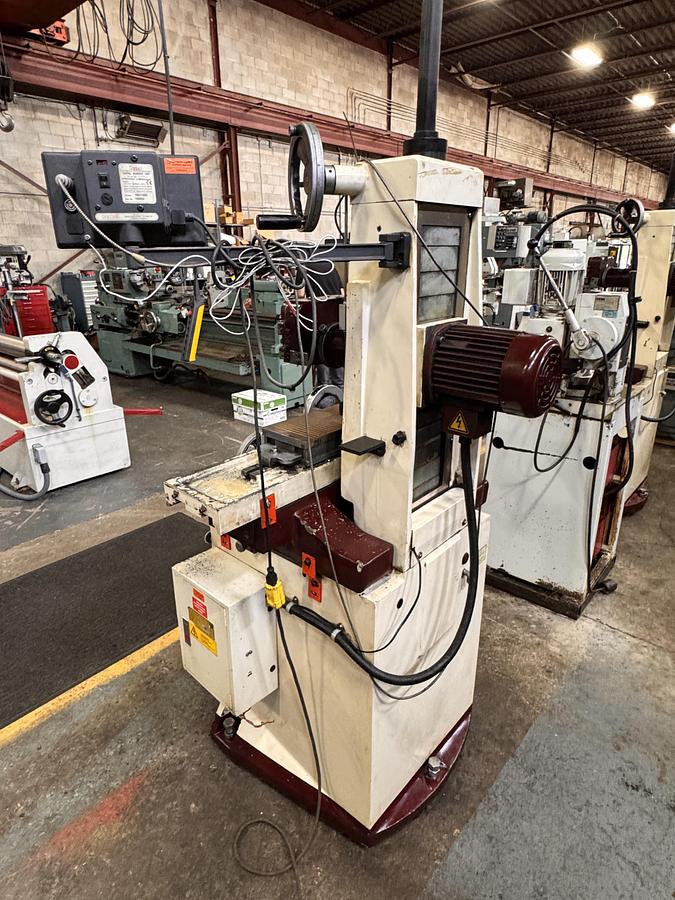

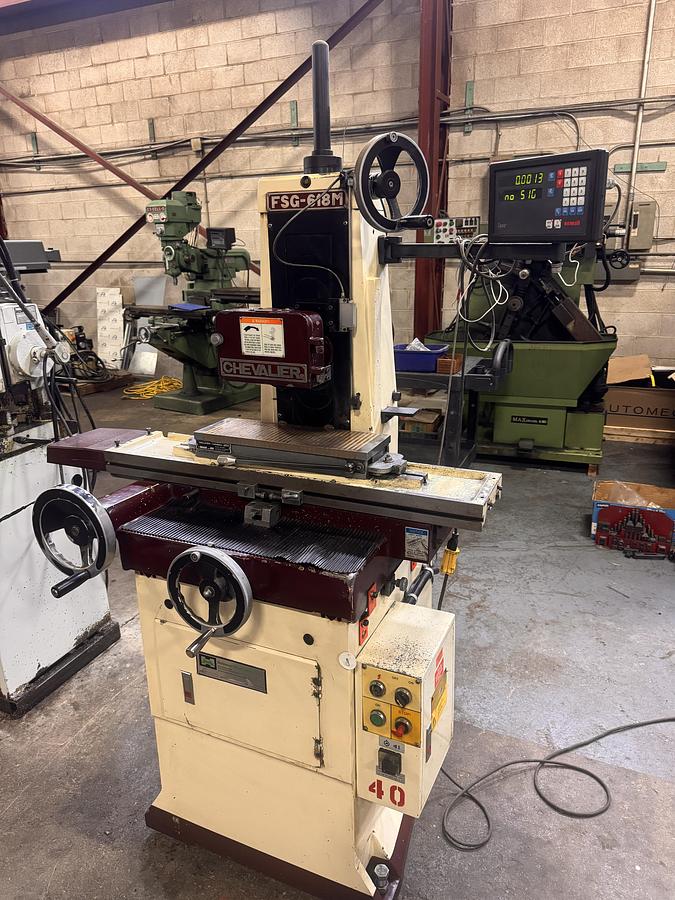

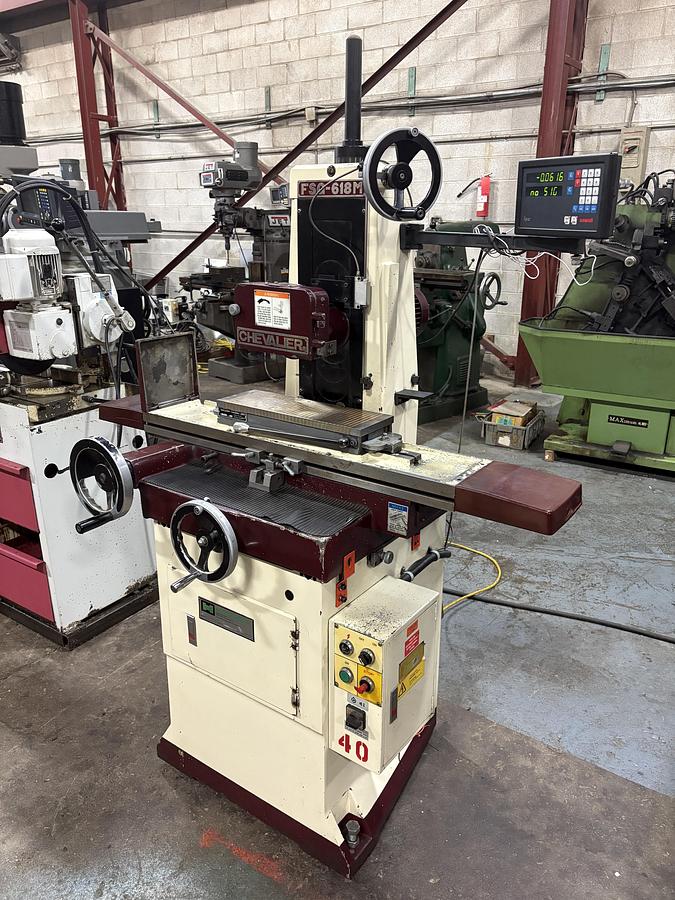

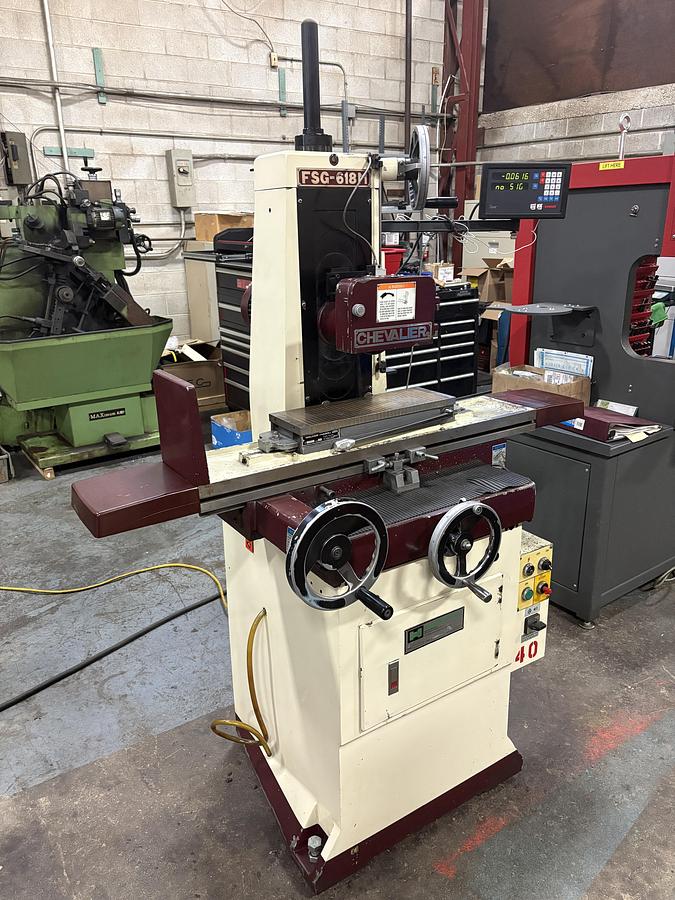

6" X 18", CHEVALIER ,FSG-618M, MANUAL SURFACE GRINDER, W/ DRO FOR Z-AXIS
Specifications
| Manufacturer | CHEVALIER |
| Model | FSG-618M |
| Stock Number | 10040 |
| Table size | 5.75" x 18" |
| Spindle motor | 3 HP |
| Spindle speed | 3450 RPM |
| Max grinding width | 6" |
| Grinding wheel bore | 1.25" |
| Max grinding length | 18" |
| Grinding wheel width | 0.5" |
| Max workpiece weight | 462 LBS |
| Approx machine weight | 1480 LBS |
| Dimensions (l x w x h) | 53" x 36" x 67" |
| Grinding wheel diameter | 8" |
| Crossfeed travel (y axis) | 7" |
| Longitudinal travel (x axis) | 19" |
| Max distance (table surface-spindle) | 18" |
Equipped With

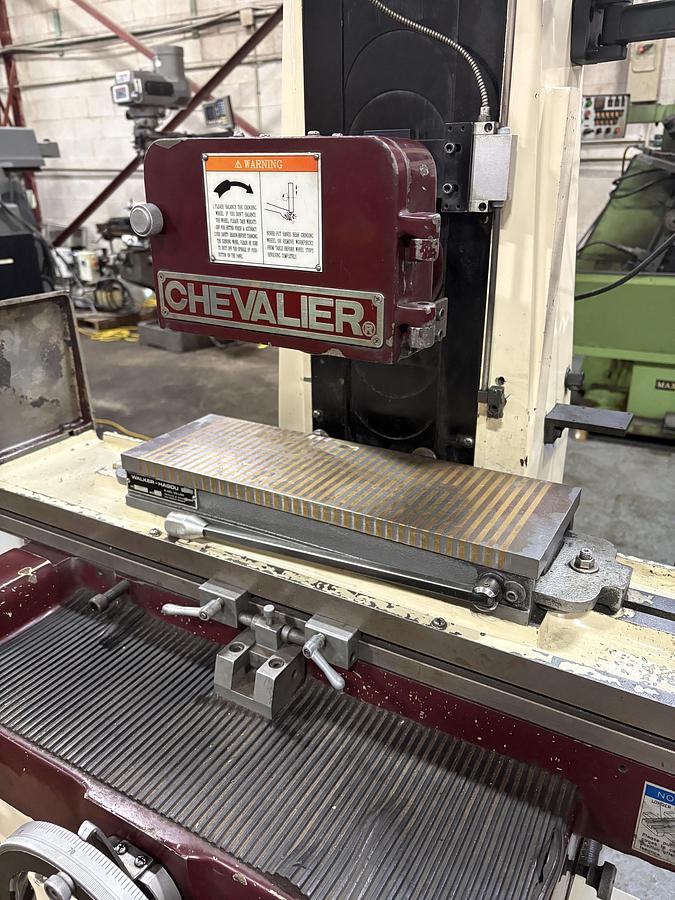

6" X 18" MANUAL MAGNETIC CHUCK

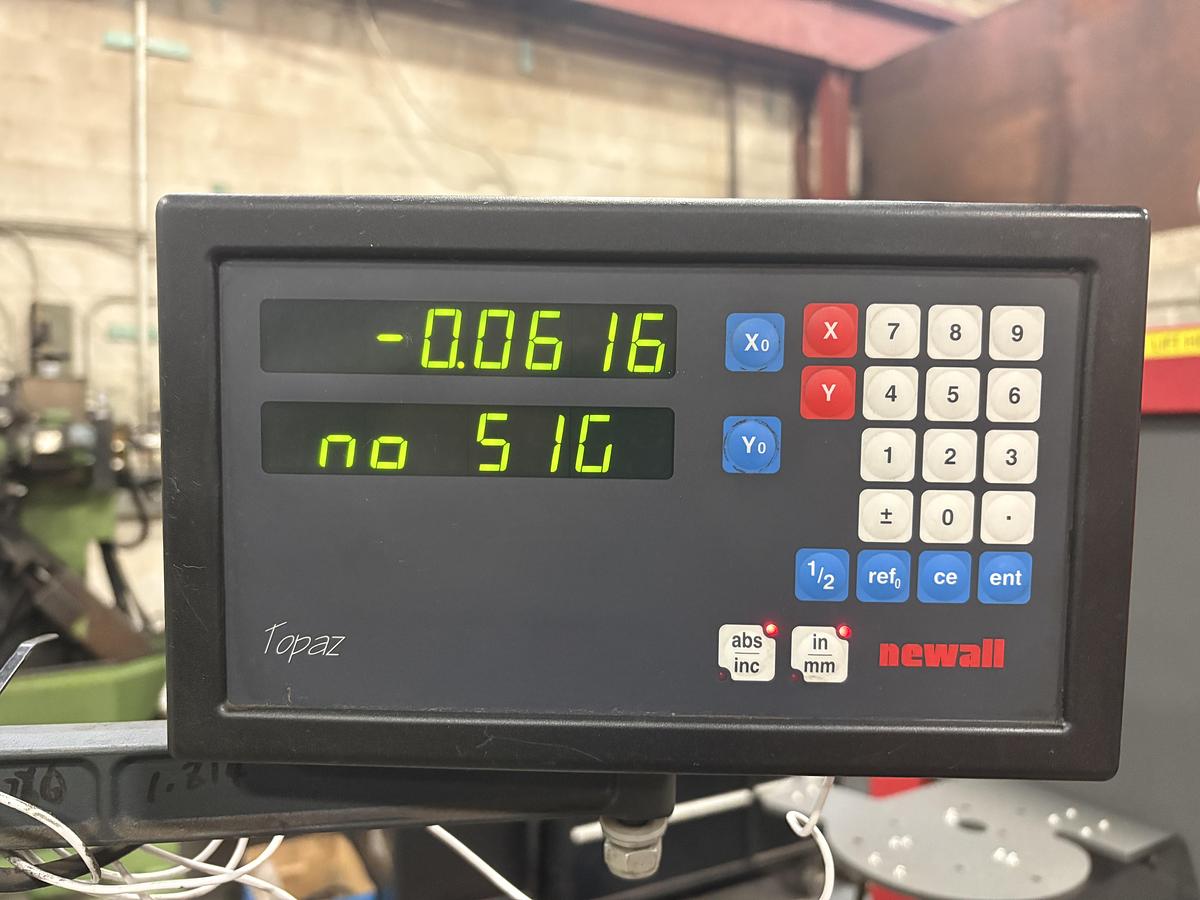

NEW ALL DIGITAL READOUT FOR Z-AXIS ONLY
The CHEVALIER FSG-618M is a manual surface grinder known for its reliable performance in precision grinding tasks. This used machine features a 6" x 18" manual magnetic chuck, offering ample workspace for a variety of grinding applications. It's equipped with a New all-digital readout specifically for the Z-axis, enhancing accuracy and ease of operation when adjusting to precise depths. Key specifications include a table size of 5.75" x 18", and it's driven by a 3 HP spindle motor that operates at a steady 3450 RPM. The grinder can accommodate workpieces up to a maximum weight of 462 lbs, with a grinding width and length capacity of 6" and 18" respectively. The grinding wheel measures 8" in diameter, with a bore of 1.25" and a width of 0.5", ensuring it can handle a variety of materials effectively. The machine dimensions are 53" x 36" x 67", with the total machine weight at approximately 1480 lbs. For operators focusing on precision and control, this unit offers a crossfeed travel of 7" on the Y-axis and a longitudinal travel of 19" on the X-axis, along with a maximum table-to-spindle distance of 18". This surface grinder is ideal for workshops needing precise manual grinding with the added advantage of a Z-axis digital readout for improved accuracy.
