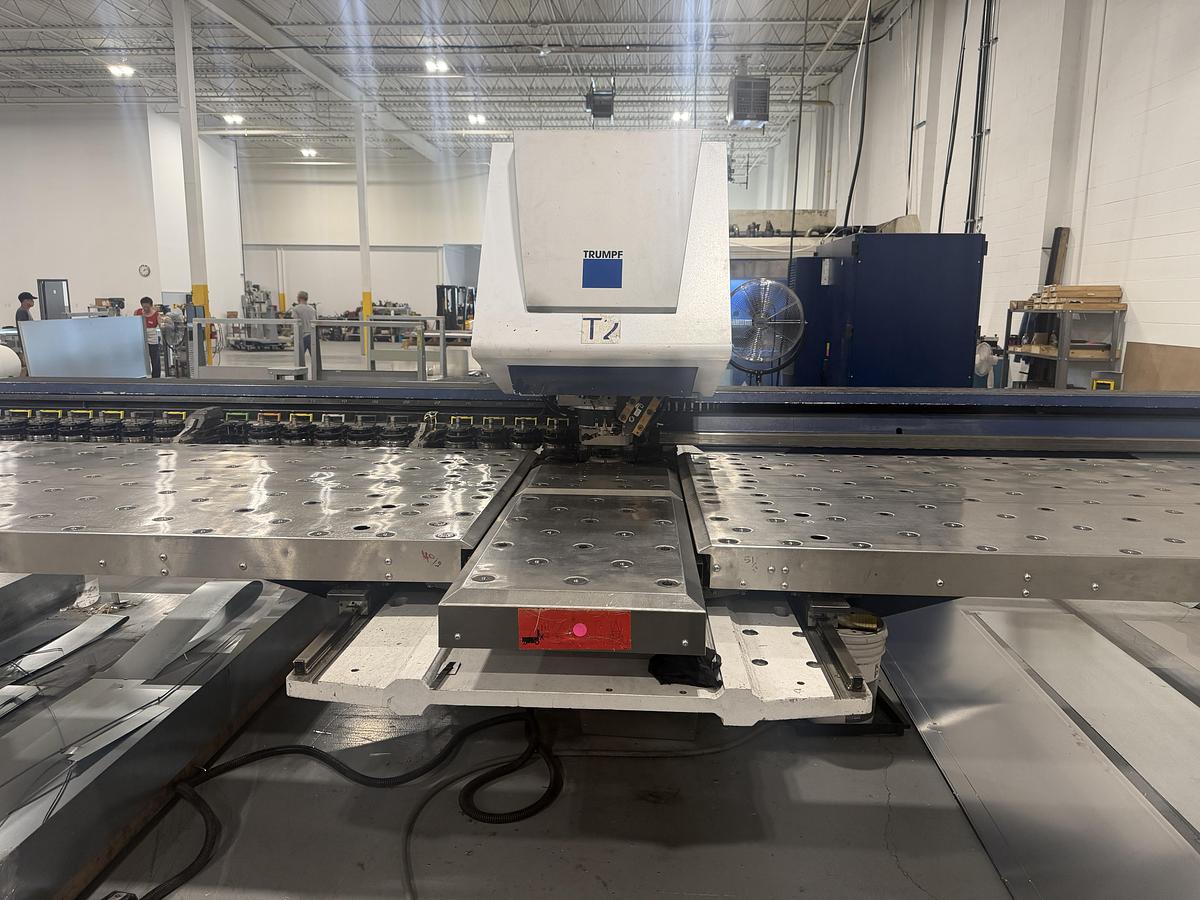

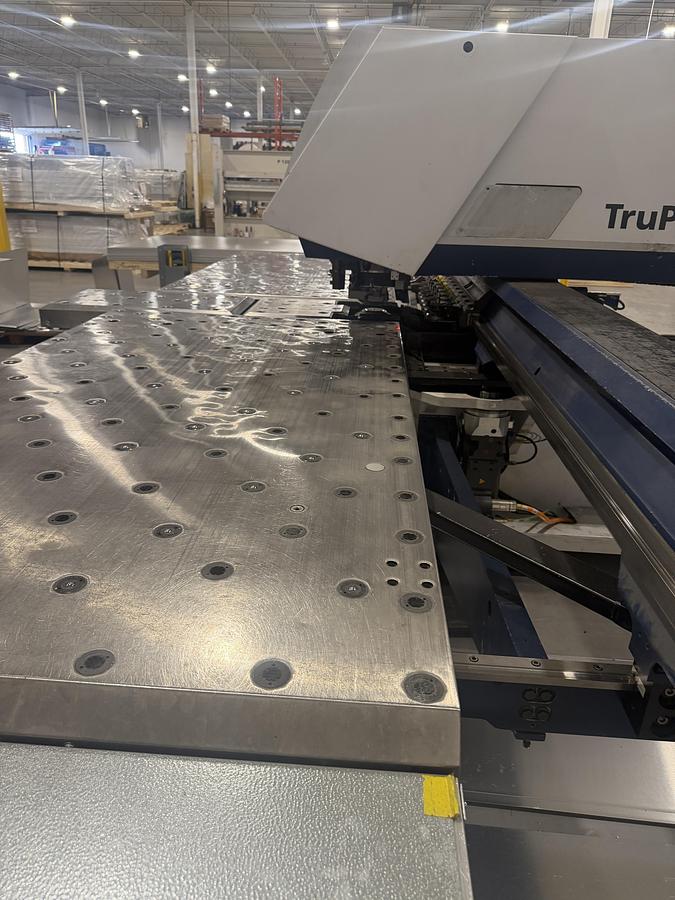

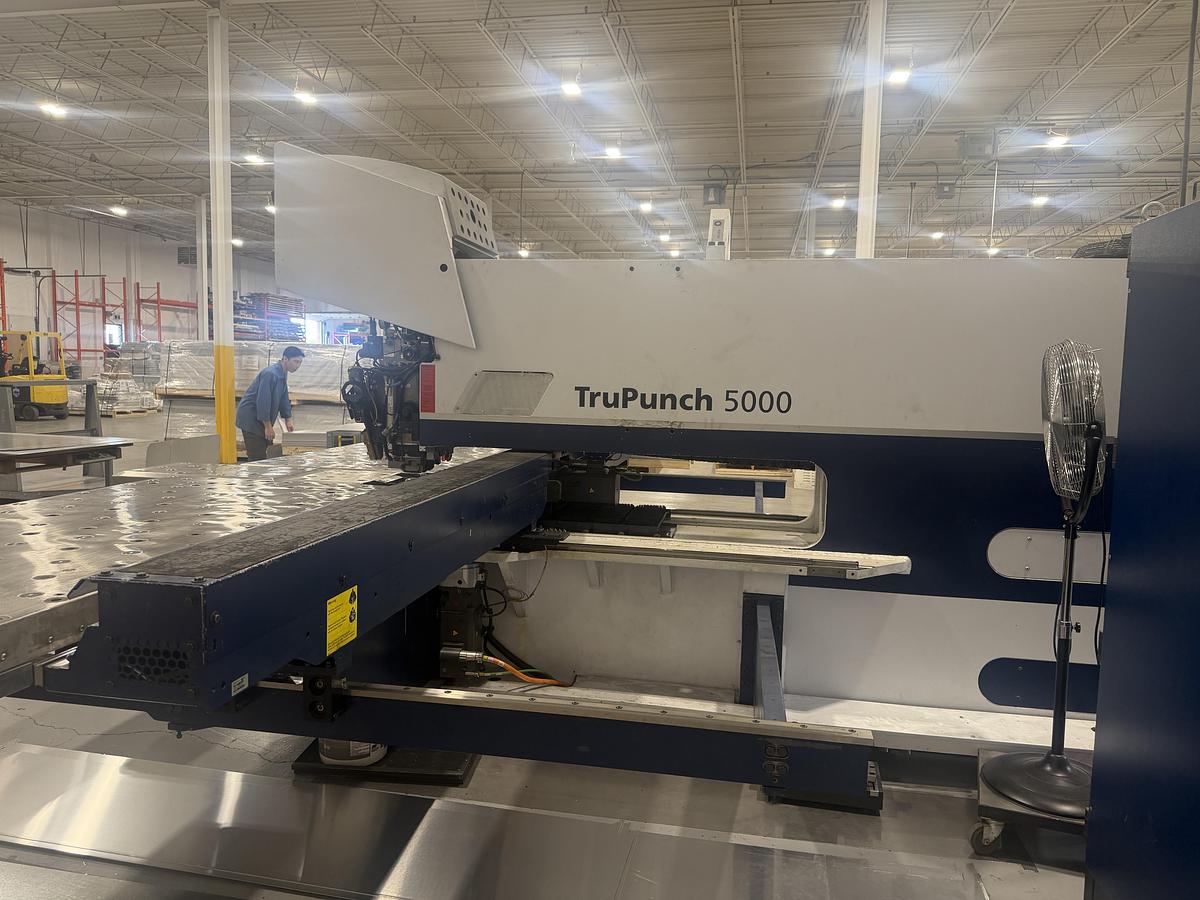

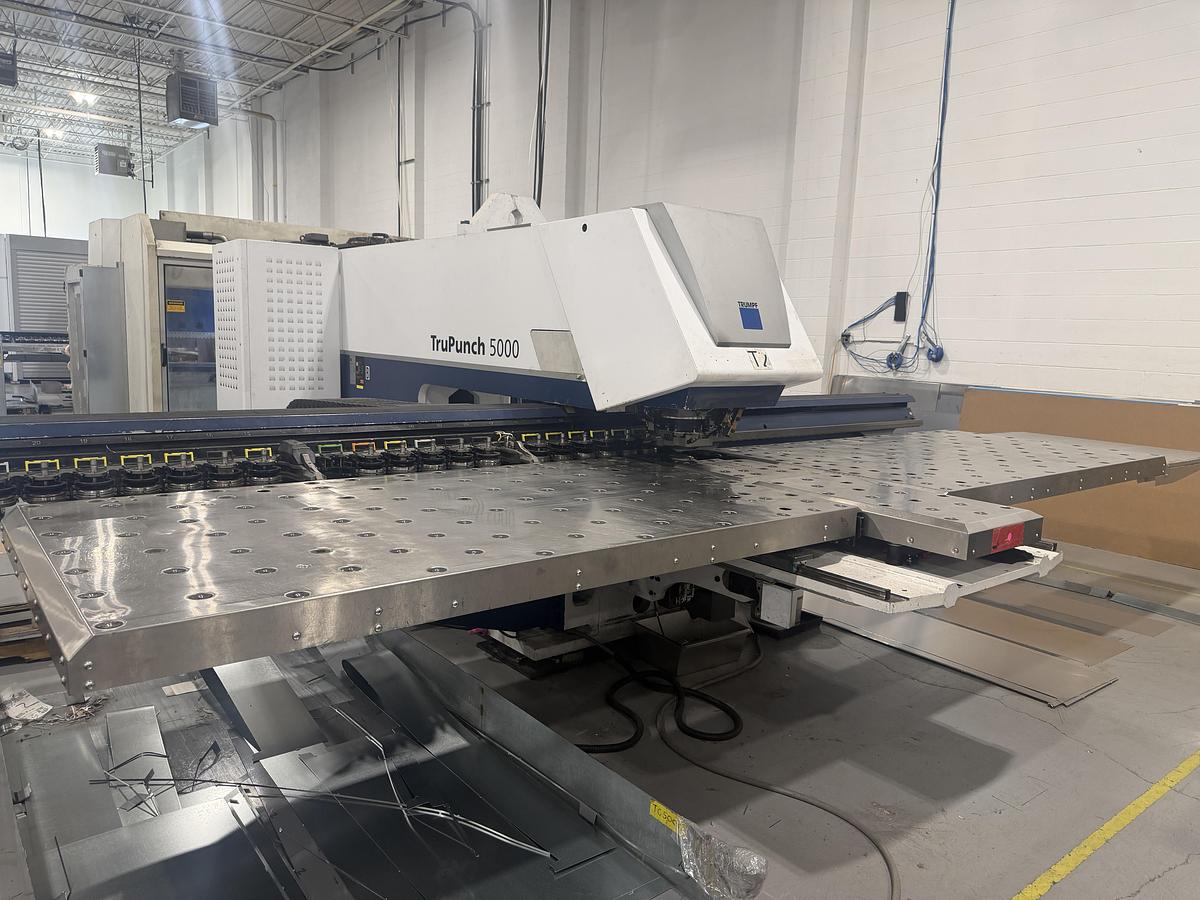

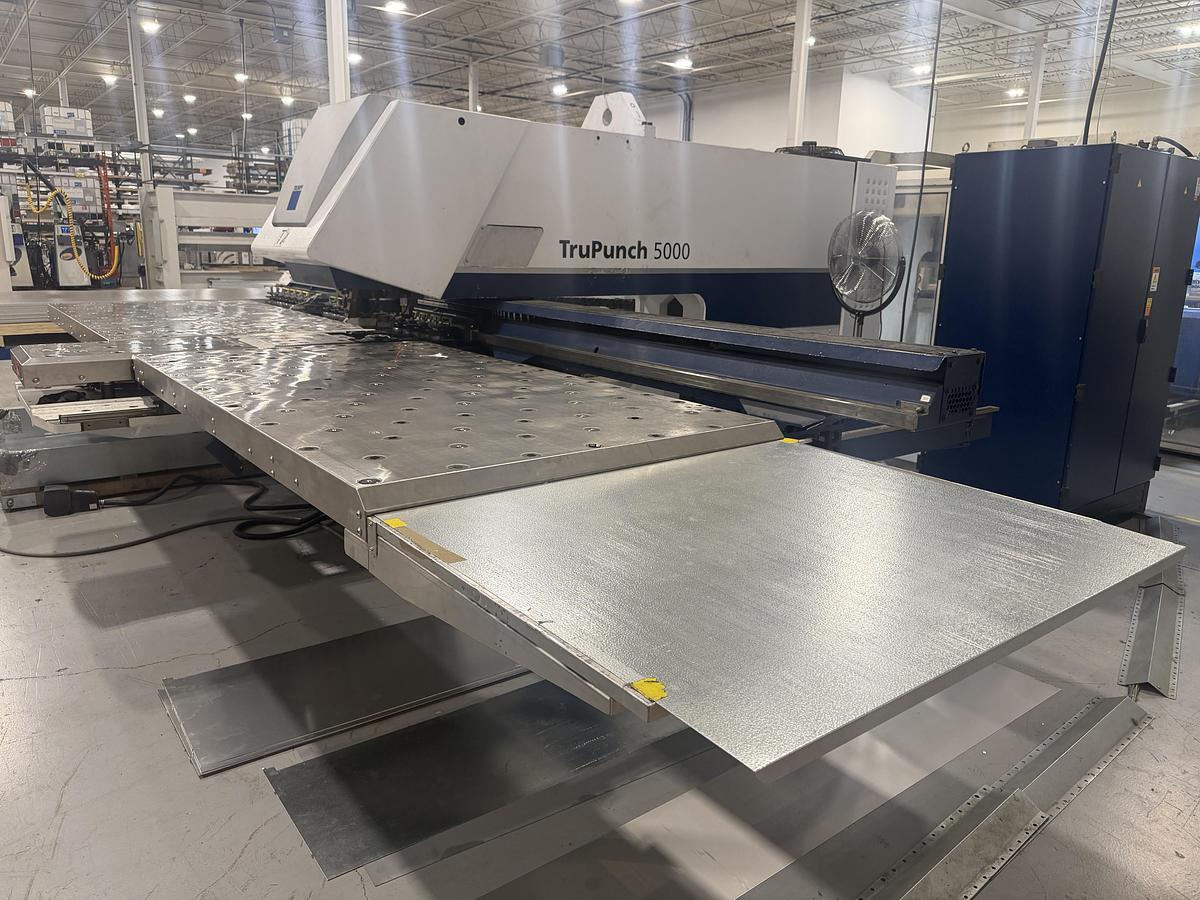

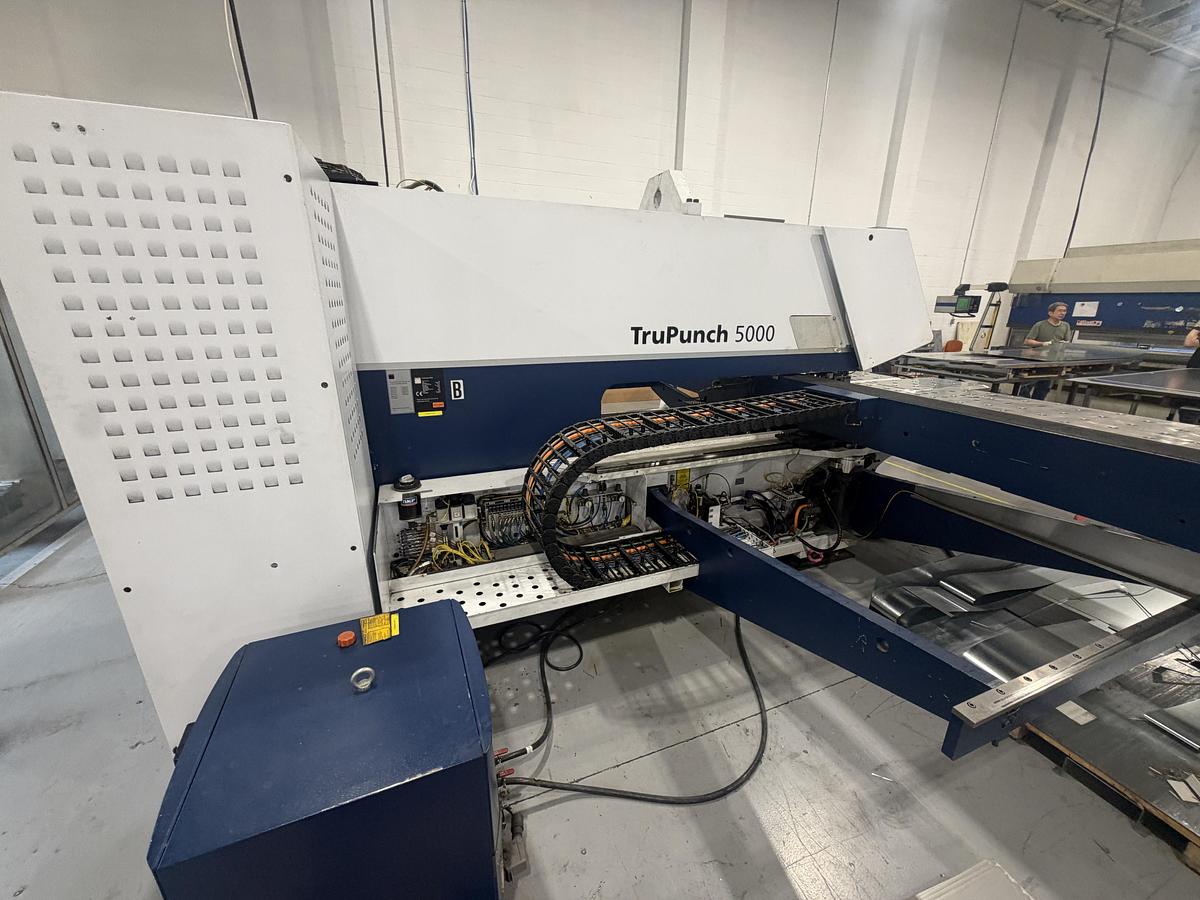

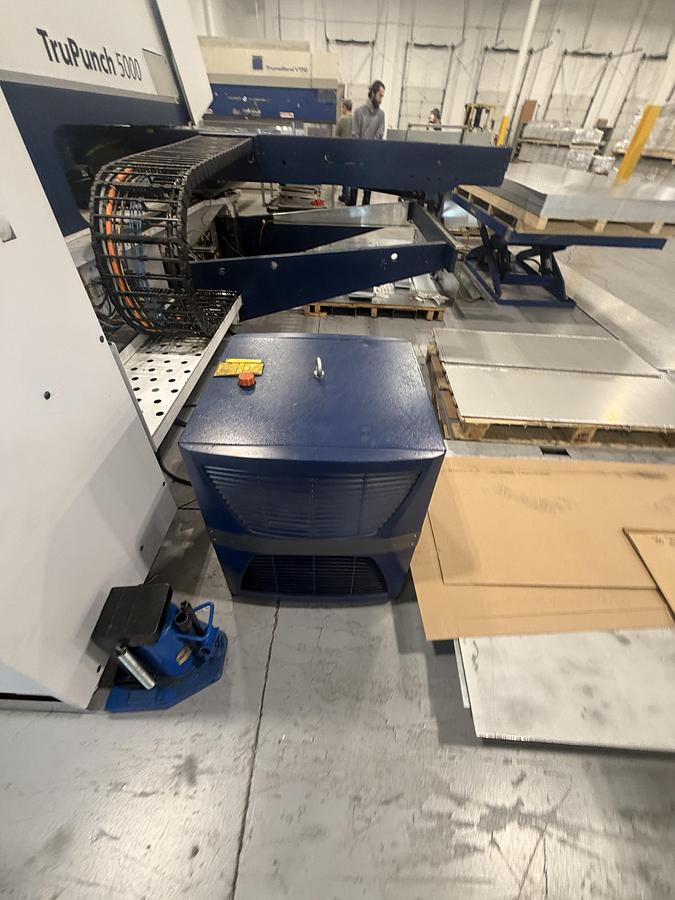

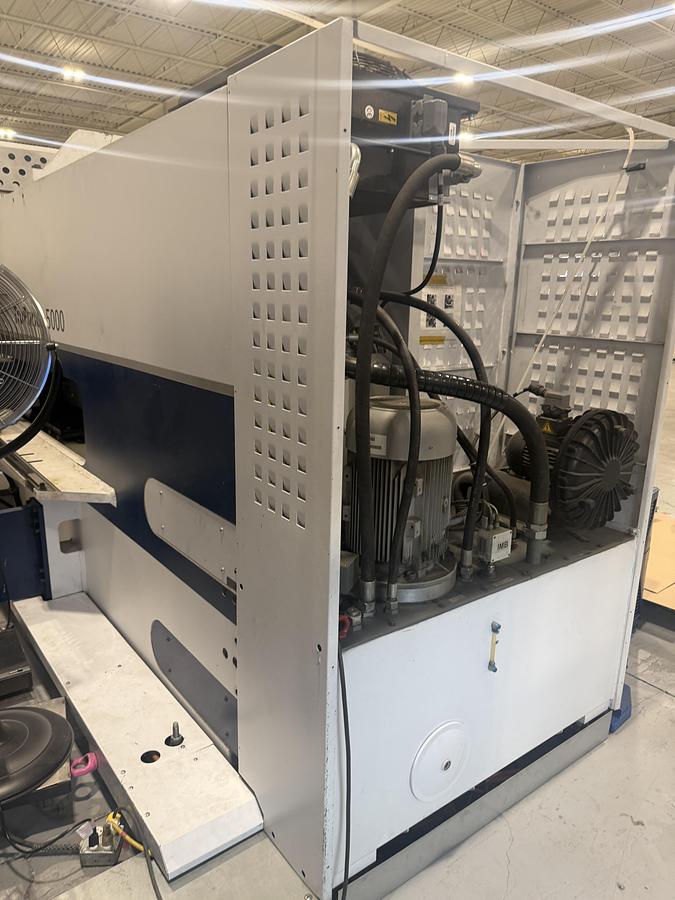

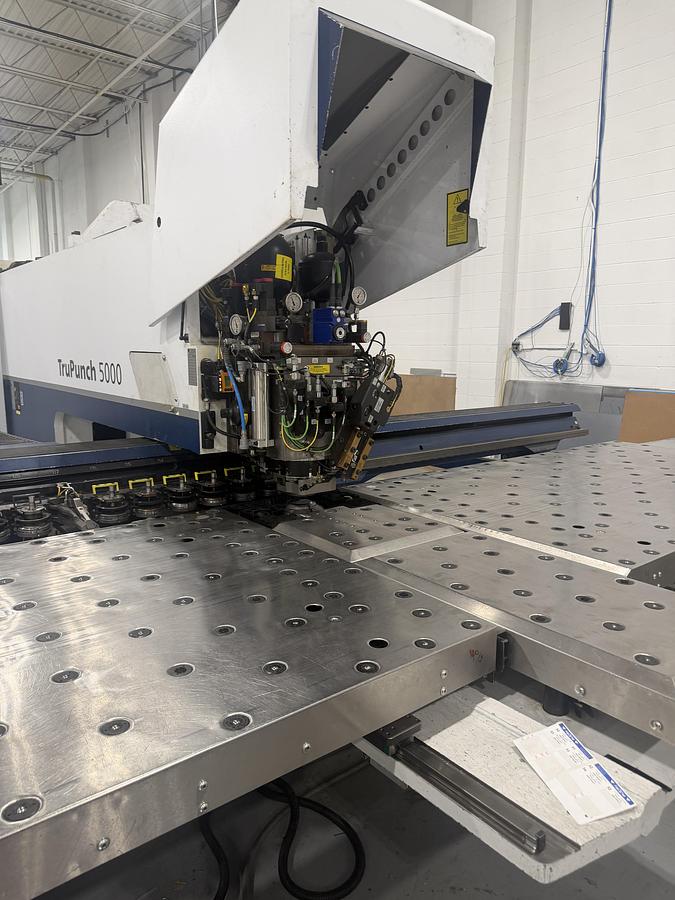

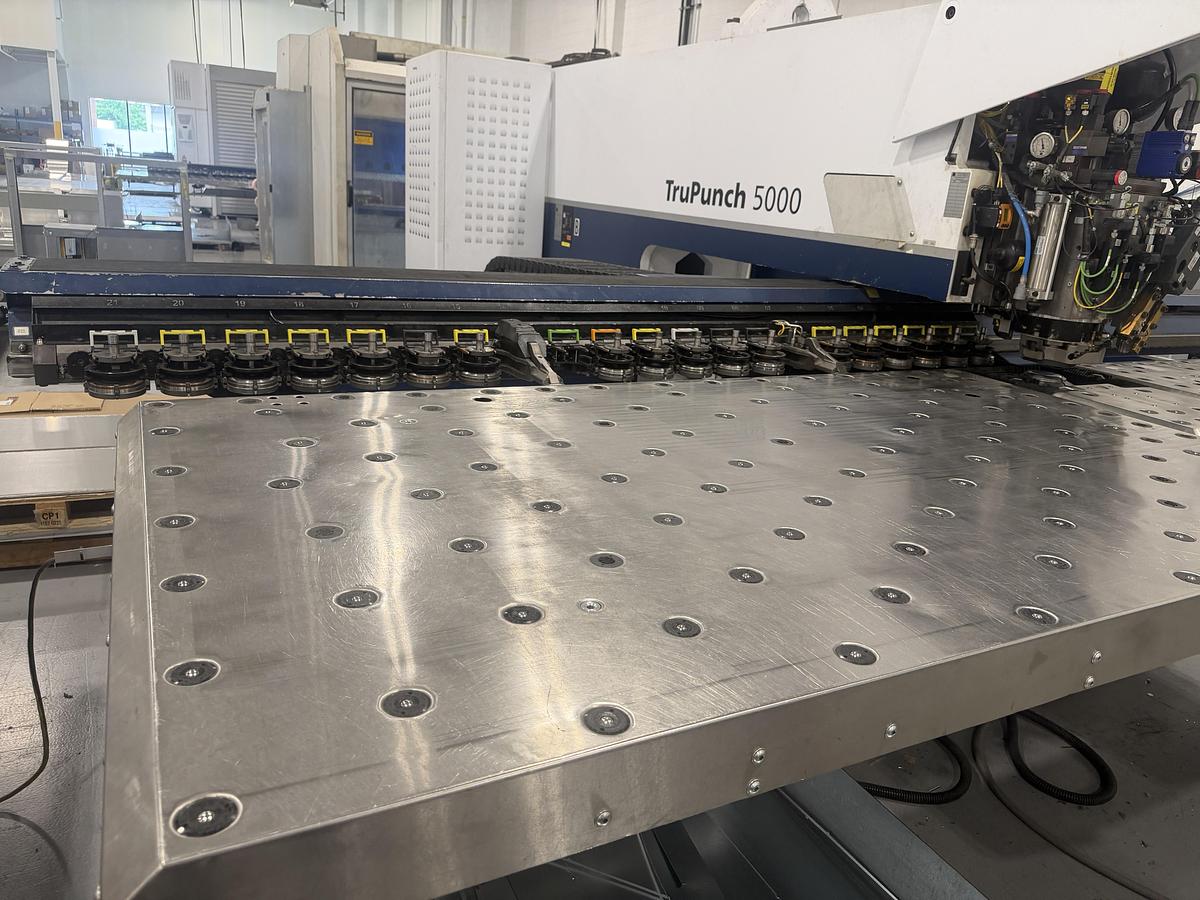

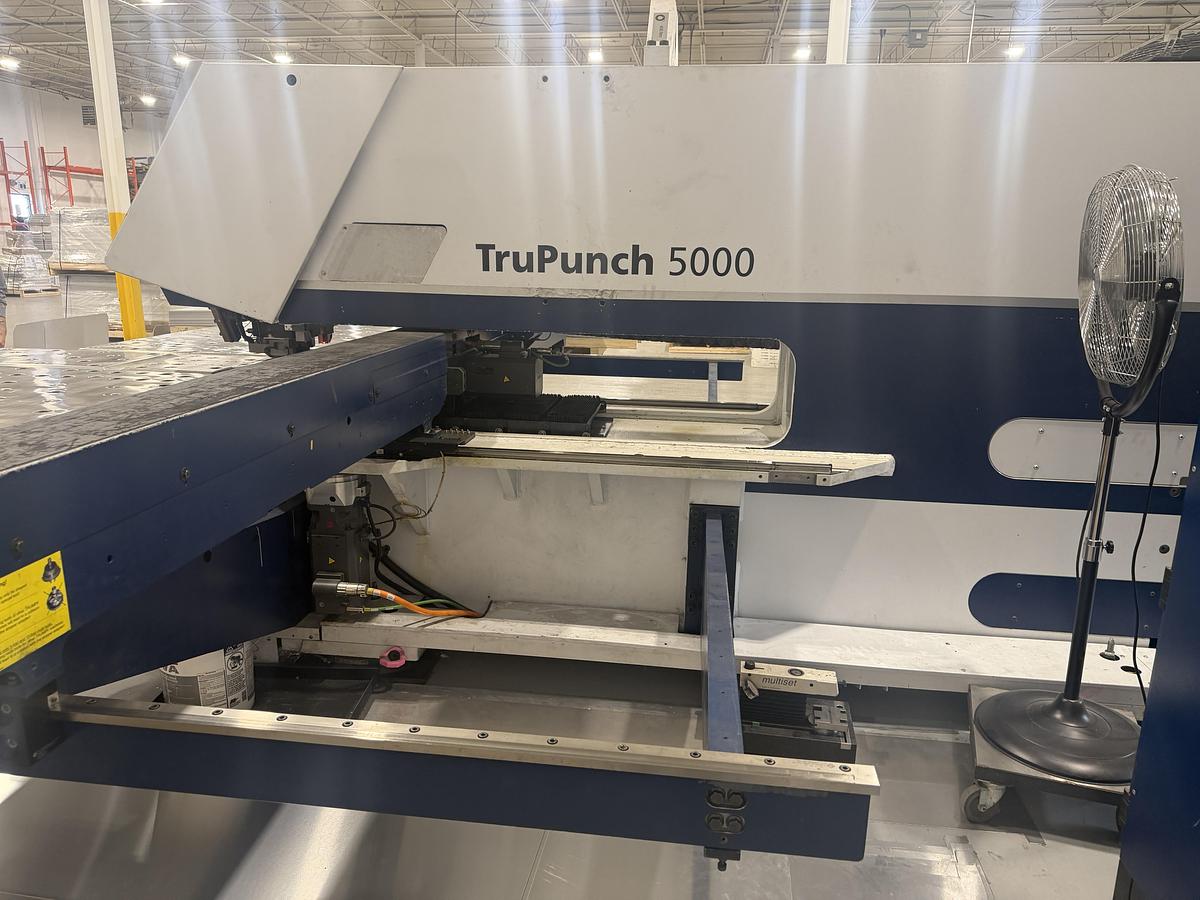

2013 TRUMPF TRUPUNCH 5000 CNC PUNCHING MACHINE
or
Call (905) 669-7507
Specifications
| Manufacturer | TRUMPF |
| Model | TRUPUNCH 5000 |
| Year | 2013 |
| Stock Number | 10031 |
| PUNCHING CAPACITY | 24 TONS |
| ELECTRICS | 460 V / 60 HZ |
| TOOL STATIONS | 21 (3 CLAMPS) |
| MAX STROKE RATE | 1600 HITS/MIN |
| MARKING SPEED | 3000 HITS/MIN |
| SHEET SIZE | 99.8" x 50.3" |
| MAX SHEET THICKNESS | 5/16" |
| MAX WORKPIECE WEIGHT | 507 LBS |
| PART FLAP SIZE | 19.69" X 19.69" |
| MAX TOOL DIAMETER | 3" |
| MACHINE WEIGHT | 30800 LBS |
| OVERALL DIMENSIONS | 266" x 240" x 98" |
Equipped With

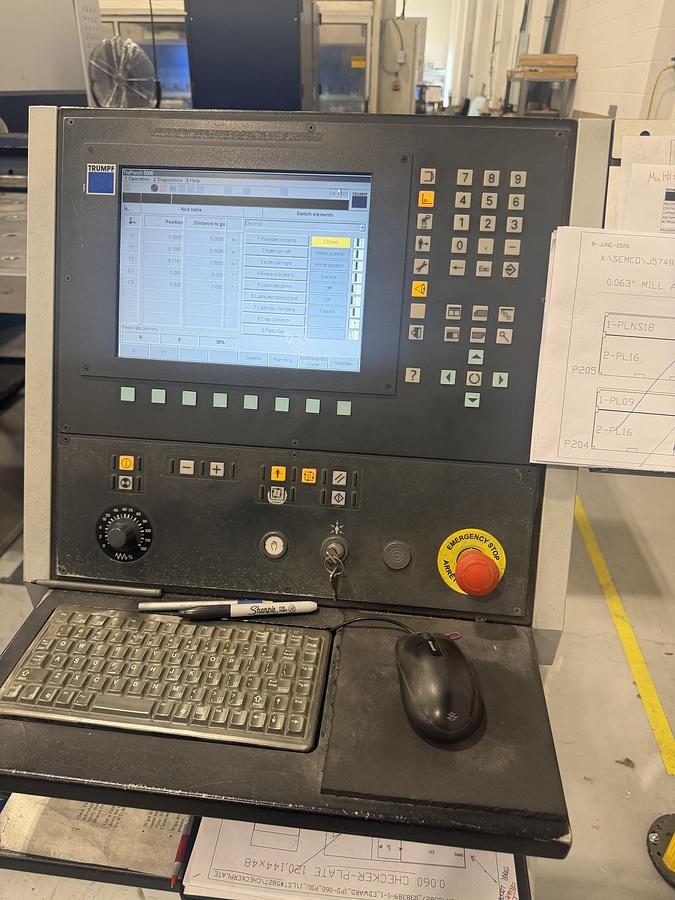

SIEMENS SINUMERIK 840D CONTROL
FUNCTION MULTITOOL
FUNCTION TAPPING
LIGHT BARRIERS
SET OF CARTRIDGES

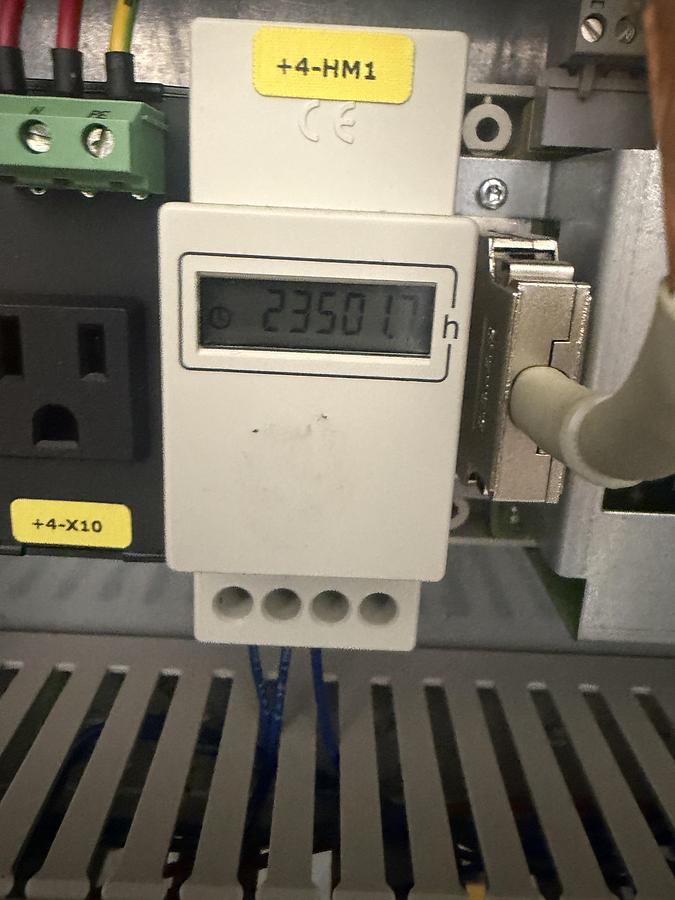

THIS MACHINE IS IN VERY GOOD CONDITION WITH ONLY 23500 ON HOURS AND CAN BE SEEN IN PLANT UNDER POWER
