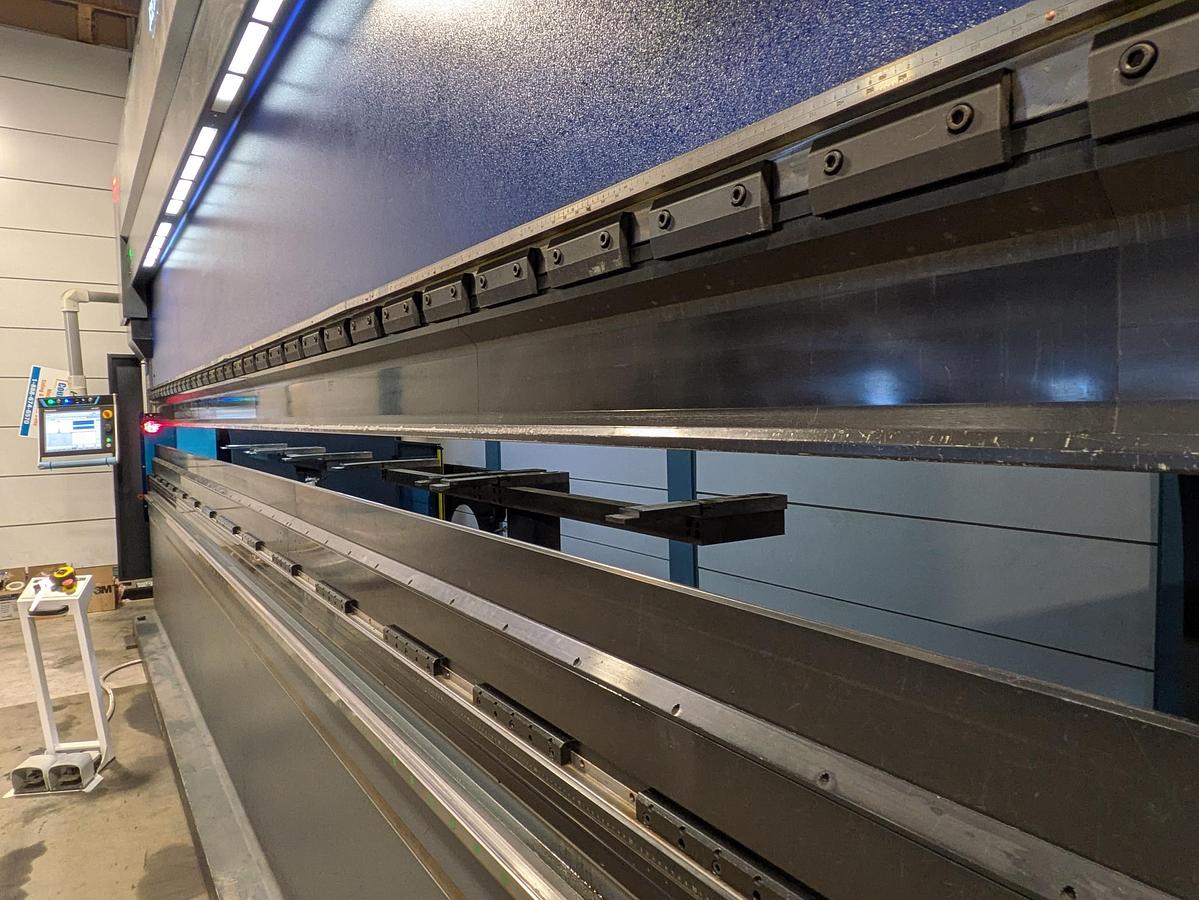

175 Ton x 22', METFAB, CNC HYDRAULIC PRESS BRAKE - 2021
or
Call (905) 669-7507
Specifications
| Manufacturer | METFAB |
| Model | REBEL PRO 175T |
| Year | 2021 |
| Stock Number | 10027 |
| TONNAGE | 175 TON |
| OVERALL LENGTH OF BED | 275" |
| DISTANCE BETWEEN FRAMES | 216" |
| STROKE | 11.81" |
| DAYLIGHT | 17.3" |
| APPROACHING SPEED | 389"/MIN. |
| RETURN SPEED | 354"/MIN. |
| WORKING SPEED | 35"/MIN. |
| APPROX. WEIGHT OF MACHINE | 59,524 LBS. |
| VOLTAGE | 380V/3/60 - COMES WITH STEP DOWN TRANSFORMER FROM 600 VOLT |
Equipped With

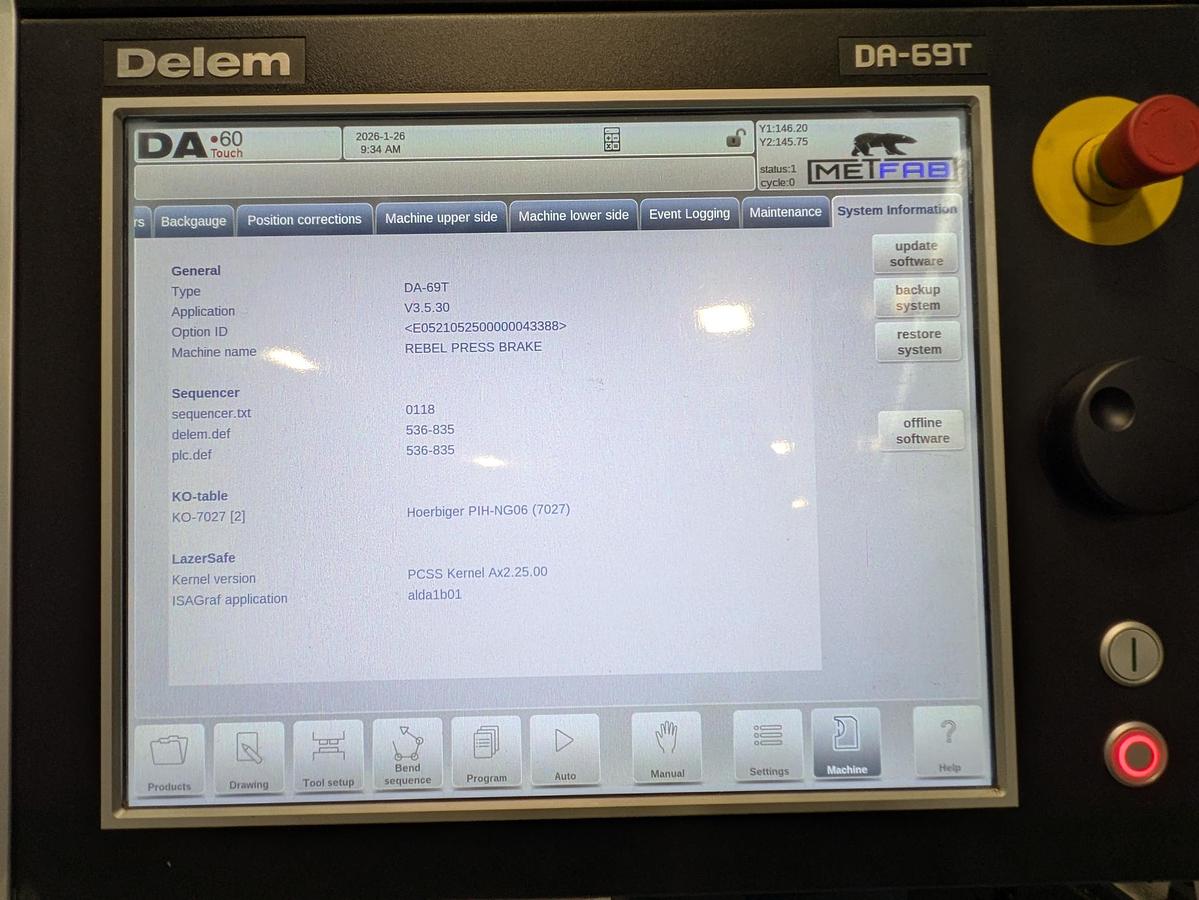

DELEM DA-69T 8-AXIS GRAPHICAL TOUCHSCREEN CNC CONTROL

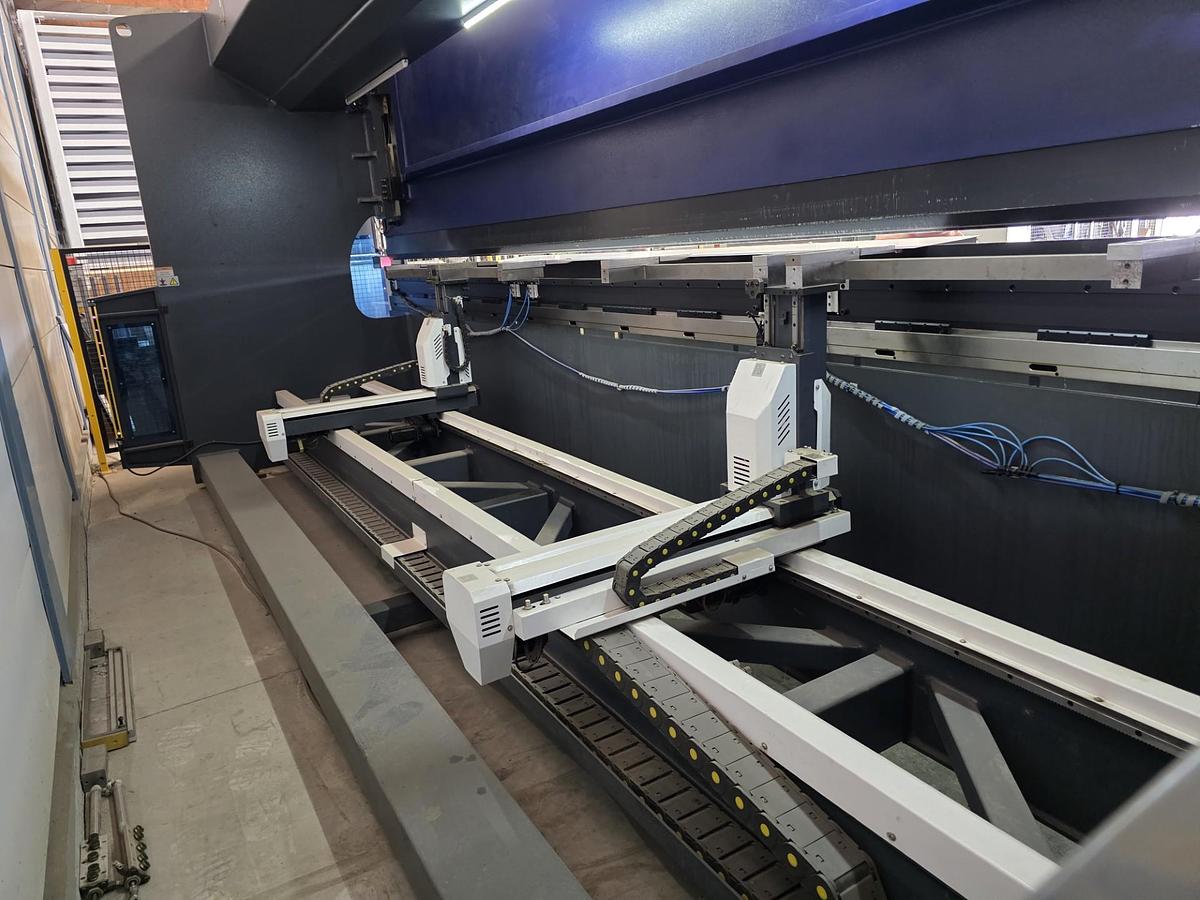

6-AXIS BACKGAUGE: X1, X2, R1, R2, Z1, Z2
Y1, Y2, PRECISION RAM POSITIONING
CNC CROWNING
USB PORT
FOOT PEDESTAL CONTROL

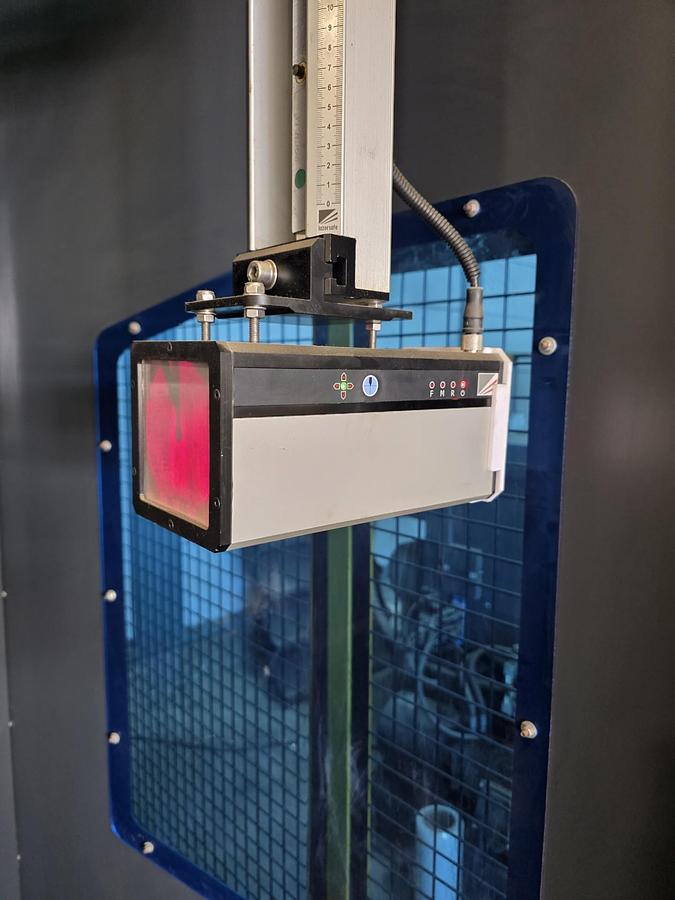

LAZERSAFE SAFETY SYSTEM
FULL SET OF TOOLING
MACHINE IS IN EXCELLENT CONDITION AND CAN BE INSPECTED UNDER POWER IN A LOCAL SHOP
