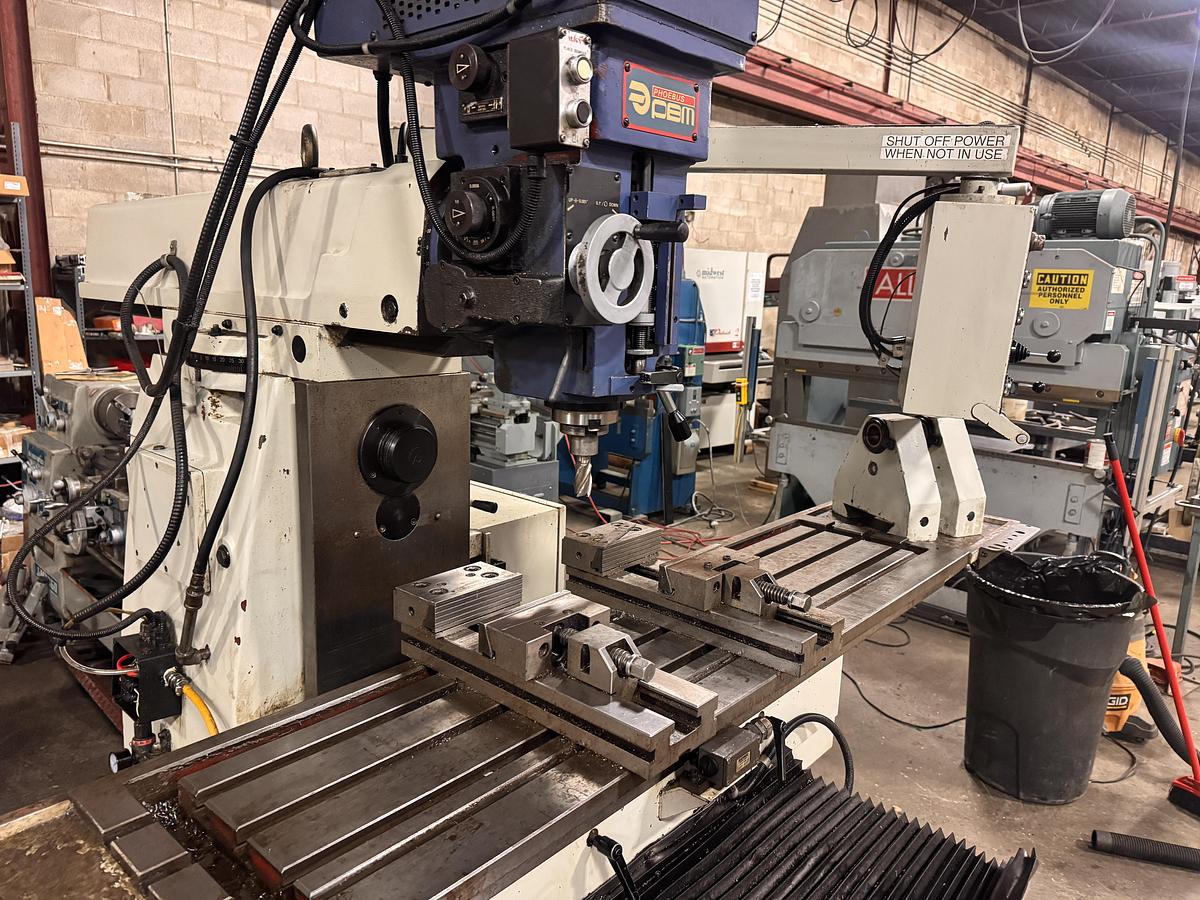

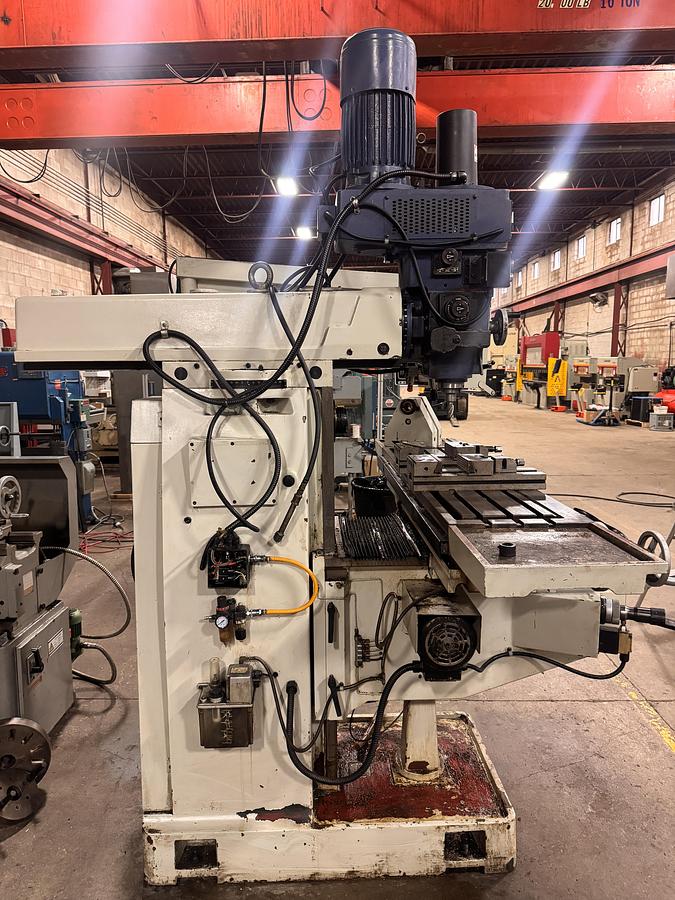

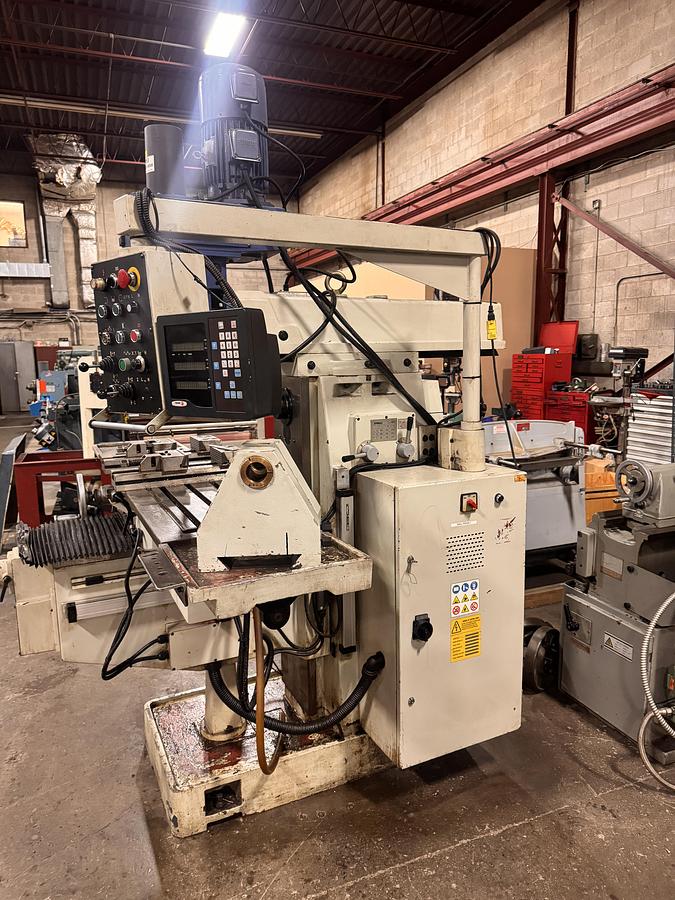

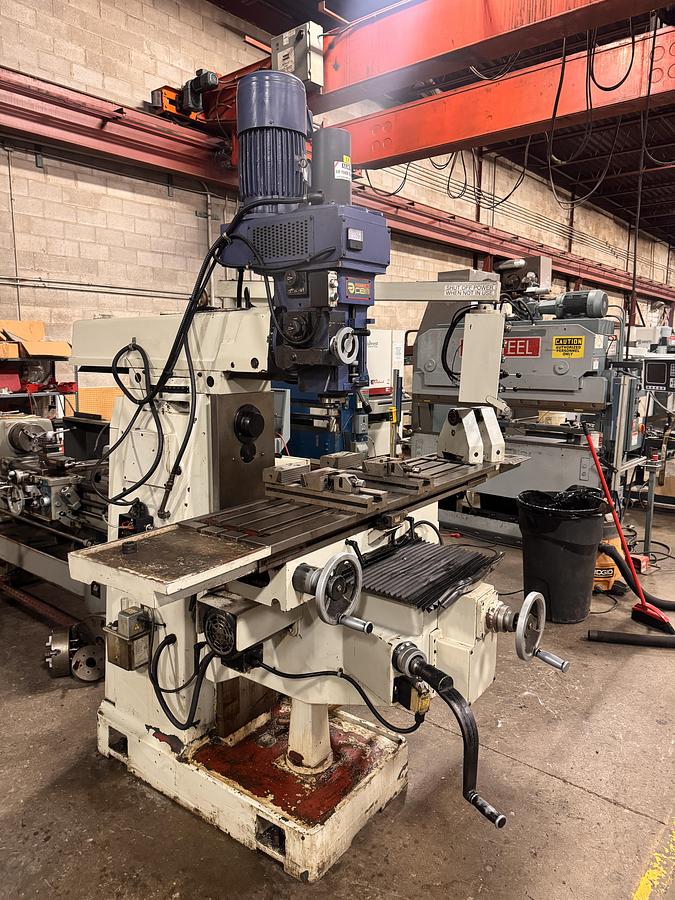

14-1/2" X 58", PHOEBUS, VERTICAL & HORIZONTAL MILLING MACHINE
Specifications
| Manufacturer | PHOEBUS |
| Model | PBM-GEVS500A |
| Stock Number | 4935 |
| TABLE AREA | 14-1/2" X 58" |
| X-AXIS TRAVEL | 36.2" |
| Y-AXIS TRAVEL | 20.4" |
| Z-AXIS TRAVEL | 17.3" |
| SPINDLE TAPER | #40 |
| SPINDLE SPEEDS - VERTICAL | 60 - 3600 RPM - VARIABLE ELECTRIC |
| SPINDLE NOSE TO TABLE | 3.3" - 19.9" |
| SPINDLE SPEED - HORIZONTAL | 65 - 1500 RPM |
| HORIZONTAL SPINDLE TAPER | #40 |
| VERTICAL SPINDLE HP | 5 HP |
| HORIZONTAL SPINDLE HP | 5 HP |
| FEED X, Y AXIS MOTORS | AC SERVO 750 W |
| FEED Z-AXIS MOTOR | 1 HP |
| APPROX. DIMENSIONS | 81.5" X 75" X 98" TALL |
| APPROX. WEIGHT | 6,000 LBS. |
Equipped With

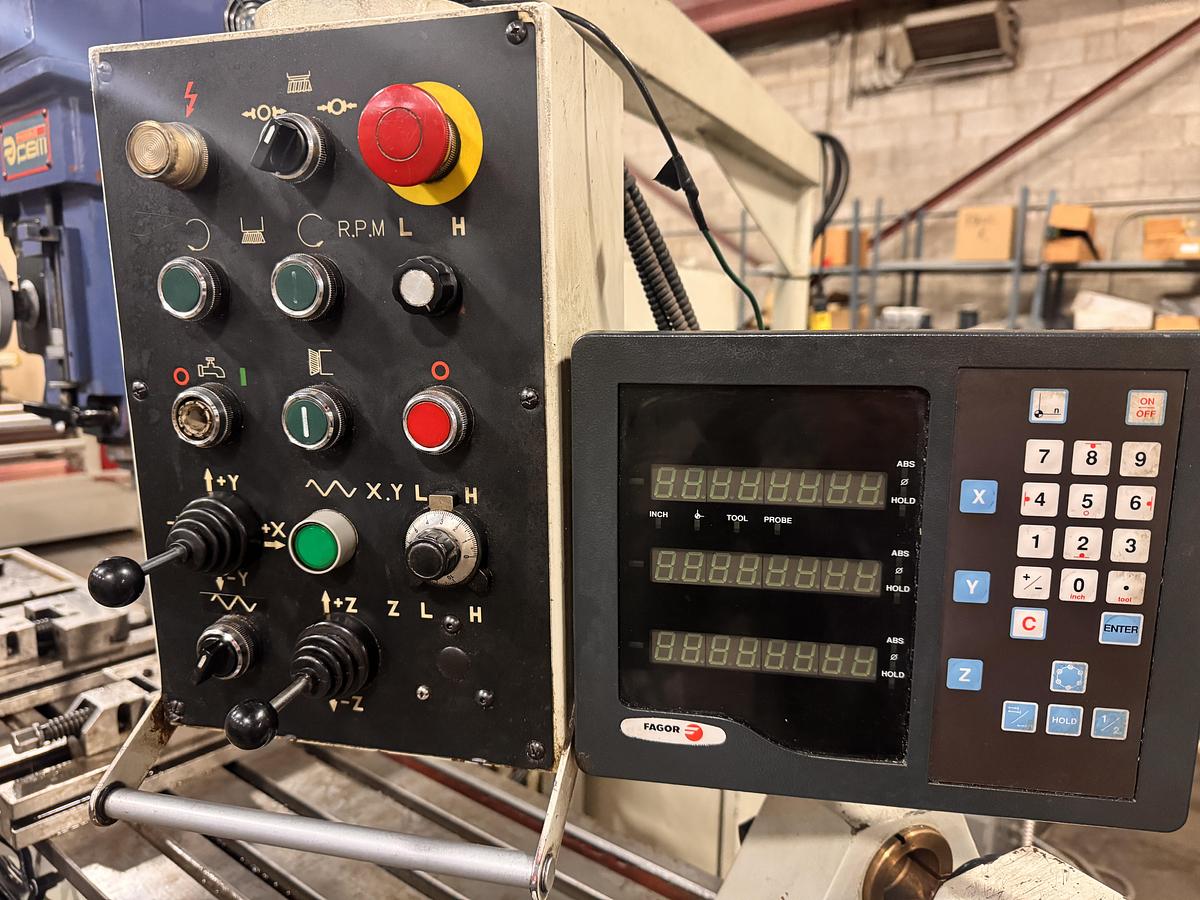

3-AXIS FAGOR DIGITAL READOUT
POWER DRAWBAR
PENDANT CONTROL
JOYSTICK FOR X, Y, Z
ELECTRONIC VARIABLE SPEED CONTROL
COOLANT SYSTEM
AUTOMATIC LUBRICATION
ARBOR SUPPORTS
The used Phoebus Model PBM-GEVS500A is a versatile vertical and horizontal milling machine suitable for diverse machining needs. It features a robust 14-1/2" x 58" table area with X, Y, and Z travels of 36.2", 20.4", and 17.3" respectively, allowing for substantial part sizes. The machine is equipped with a 3-axis FAGOR digital readout and pendant control, enhancing precision and ease of use. The integrated joystick facilitates smooth navigation across all axes, improving operational efficiency. This milling machine includes notable features such as a power drawbar, electronic variable speed control, and a coolant system, ensuring optimal performance. Its spindle capabilities are designed for flexibility, with a #40 taper and a variable electric speed range of 60 - 3600 RPM for vertical operations, and 65 - 1500 RPM for horizontal tasks. Both spindles are powered by a 5 HP motor, coupled with reliable AC servo motors for X and Y feeds, and a 1 HP motor for the Z-axis. The unit's dimensions are approximately 81.5" x 75" x 98" tall, and it weighs around 6,000 lbs, making it a substantial yet manageable machine for diverse industrial environments. With automatic lubrication and arbor supports included, this machine promises durability and convenience for both high-volume and precision milling operations.
