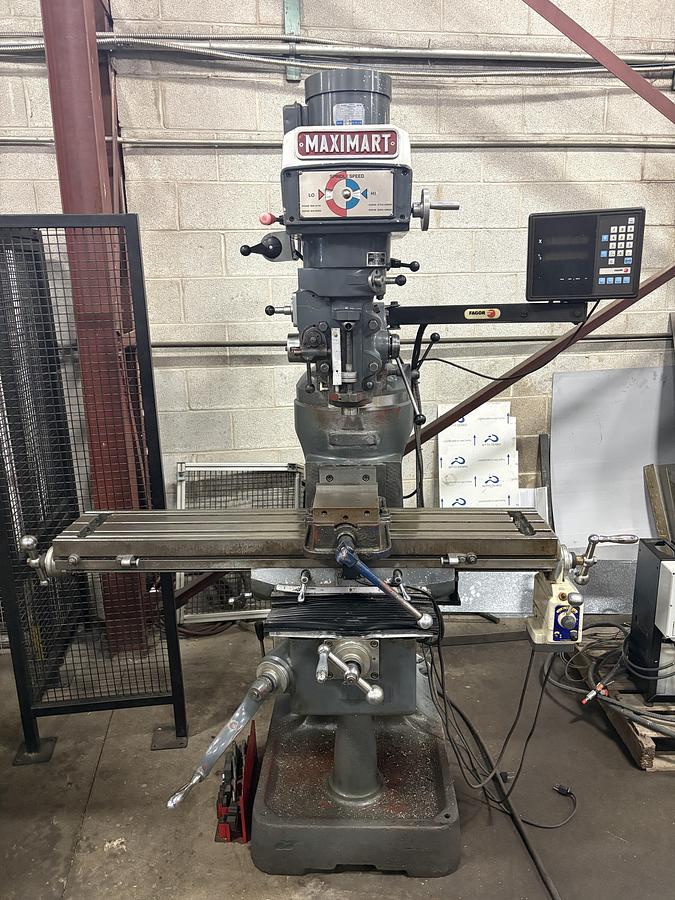

9" X 49", MAXIMART, NO. 2VS, VERTICAL MILLING MACHINE
Specifications
| Manufacturer | MAXIMART |
| Model | 2VS |
| Stock Number | 4933 |
| TABLE SIZE | 9" x 49" |
| LONGITUDINAL TRAVEL | 32.9 |
| CROSS TRAVEL | 12" |
| QUILL TRAVEL | 5" |
| VERTICAL KNEE TRAVEL | 15-3/4" |
| SPINDLE TAPER | R-8 |
| SPINDLE MOTOR | 3 HP |
| ELECTRICS | 575V/3/60 |
| SPINDLE SPEEDS ( VARIABLE ) | 60 - 4,300 RPM |
| APPROX. WEIGHT | 2,250 LBS |
Equipped With
2-AXIS FAGOR DIGITAL READOUT
TABLE VISE
ASSORTED COLLETS
ONE SHOT LUBRICATION
The Maximart No. 2VS Vertical Milling Machine is a reliable piece of equipment ideally suited for various machining tasks. This used manual mill features a table size of 9" x 49", offering ample space for handling larger workpieces. The machine is equipped with a 2-axis Fagor digital readout for precise and efficient operation. It also includes a table vise and assorted collets for versatility in milling operations. Noteworthy specifications include a longitudinal travel of 32.9", cross travel of 12", quill travel of 5", and a vertical knee travel of 15-3/4". The spindle taper is R-8 with a motor power of 3 HP, supporting variable spindle speeds ranging from 60 to 4,300 RPM. The machine operates on electrics of 575V/3/60, catering to high-demand industrial environments. Additionally, the machine features a one-shot lubrication system to ensure smooth and maintenance-free operation. Weighing approximately 2,250 lbs, this milling machine delivers robust performance and durability. It stands as an excellent choice for machinists seeking both precision and reliability in their workshop.
